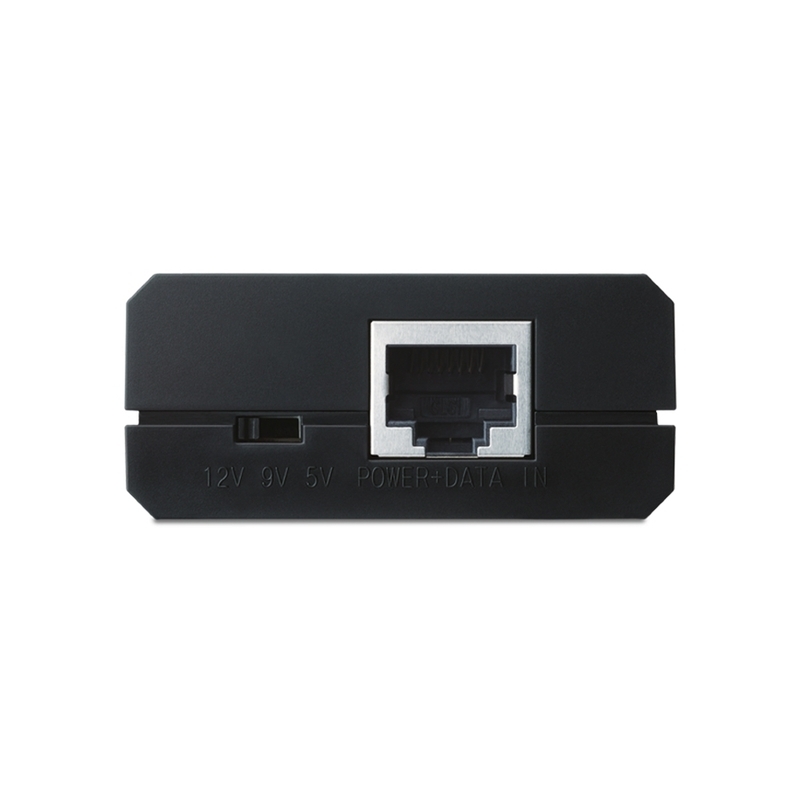

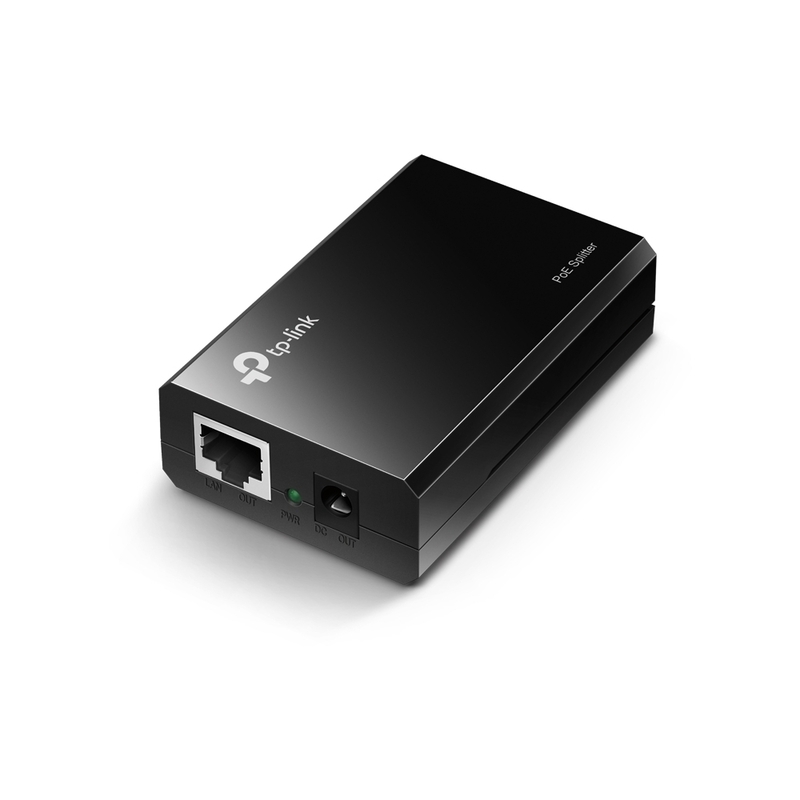

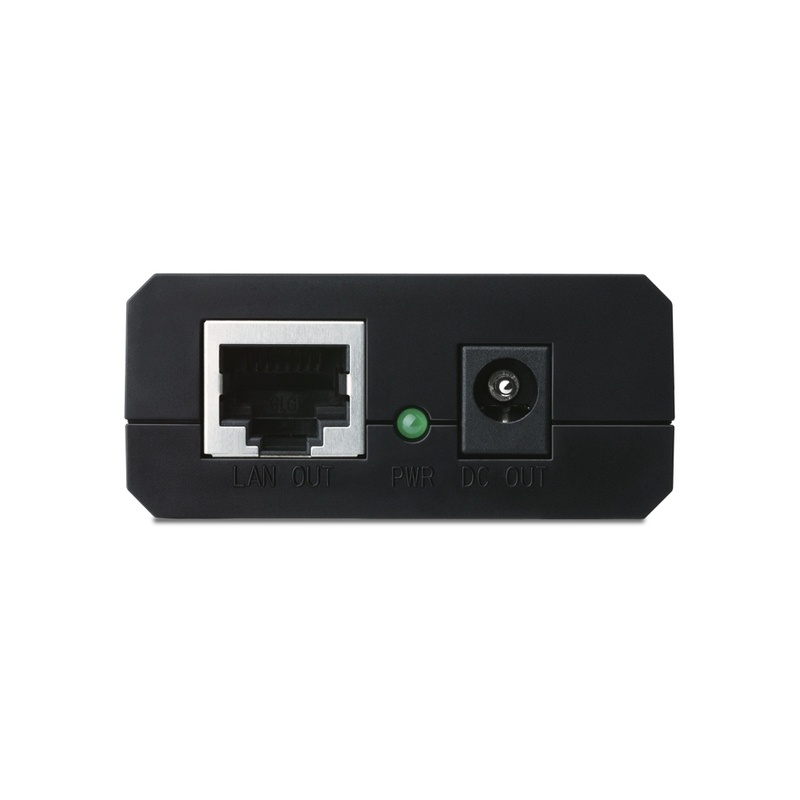

About TL-POE10R PoE Splitter Adapter

The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's  TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Selectable power output
  • Gigabit speed support
  • Plug-and-Play, no configuration required

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features

•  Interface:
   2× 10/100/1000Mbps RJ45 Ports with Auto Negotiation/Auto MDI/MDIX
  1× Power Output Port
•  Network Media:
   10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
   100BASE-TX: UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
   1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
•  Power Supply:
   12VDC 1A, 9VDC 1A, 5VDC 2A
•  Basic Function:
   Compatible with IEEE 802.3af Compliant PSEs
   Delivers power up to 100 meters
   Optional 12VDC, 9VDC, or 5VDC power output
•  LED Indicator: PWR
•  Dimensions:  3.2 × 2.1 × 0.9 inches (80.8 × 54 × 24 mm)

Software Features

•  Basic Function:
   Compatible with IEEE 802.3af Compliant PSEs
   Delivers power up to 100 meters
   Optional 12VDC, 9VDC, or 5VDC power supply

Others

•  Certification:  FCC, CE, RoHS

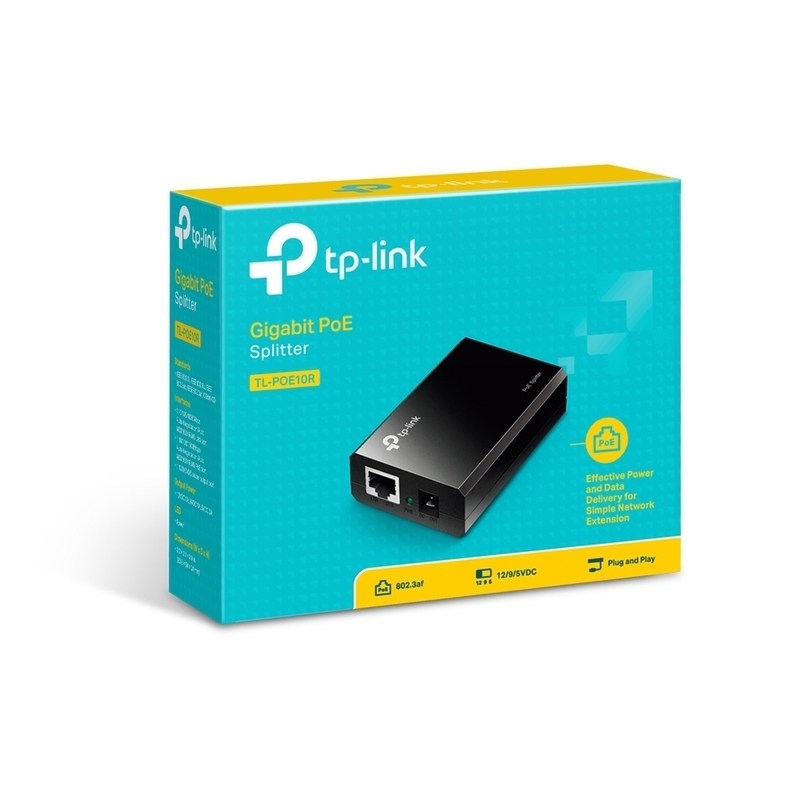

•  Package Contents:  POE10R, Power Cord, Installation Guide
•   System Requirements:  Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, or Windows 7, MAC® OS, NetWare®, UNIX®, or Linux


SKU TL-POE10R
MPN TL-POE10R
Brand TP-Link
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
