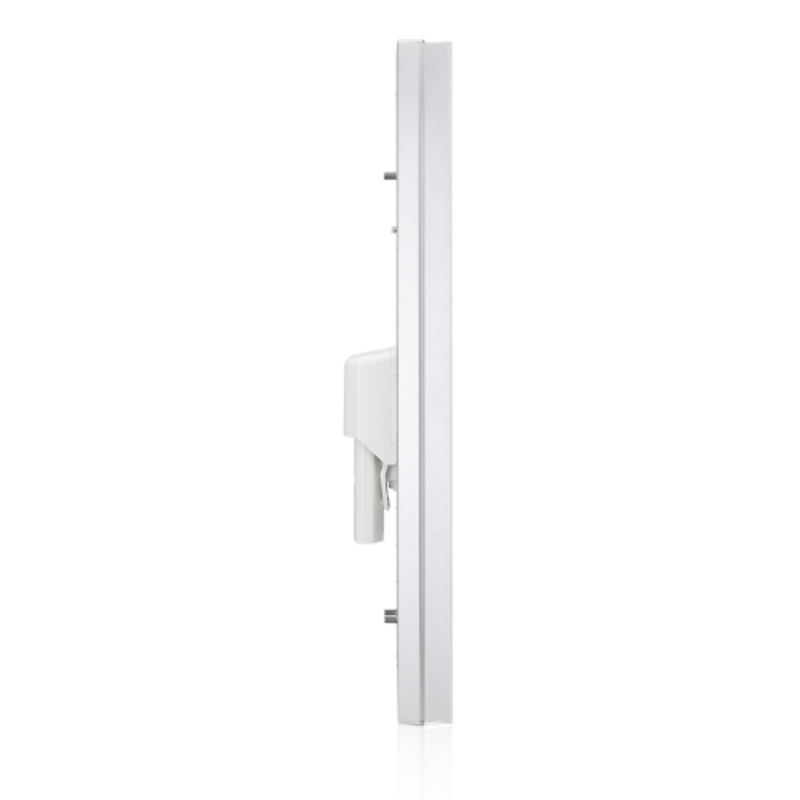

The Ubiquiti airMAX AC Sector 5 GHz 60º 21 dBi Antenna AM-5AC21-60 is the next generation of 2x2 MIMO sector antenna that features significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks.
Dimensions (mm): 750 x 173 x 78
Weight: 4.8 kg
Frequency Range: 5.10 - 5.85 GHz
Gain : 21 dBi
HPOL Beamwidth: 60° (6 dBi)
VPOL Beamwidth: 60° (6 dBi)
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 391 N @ 200 km/h (88 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 25 dB Min.
| SKU | AM-5AC21-60 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.002000000m3 |
1 Year Warranty
Need more information or assistance with this product?
Contact us on 1300 665 970 or complete an online enquiry and one of our staff members will get back to you as soon as possible.
SKU: AM-5AC21-60
