Buy TP-Link EAP235 Omada Wireless MU-MIMO wall plate access point (EAP235-WALL)

About EAP235 Omada Wireless MU-MIMO wall plate access point

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.^†

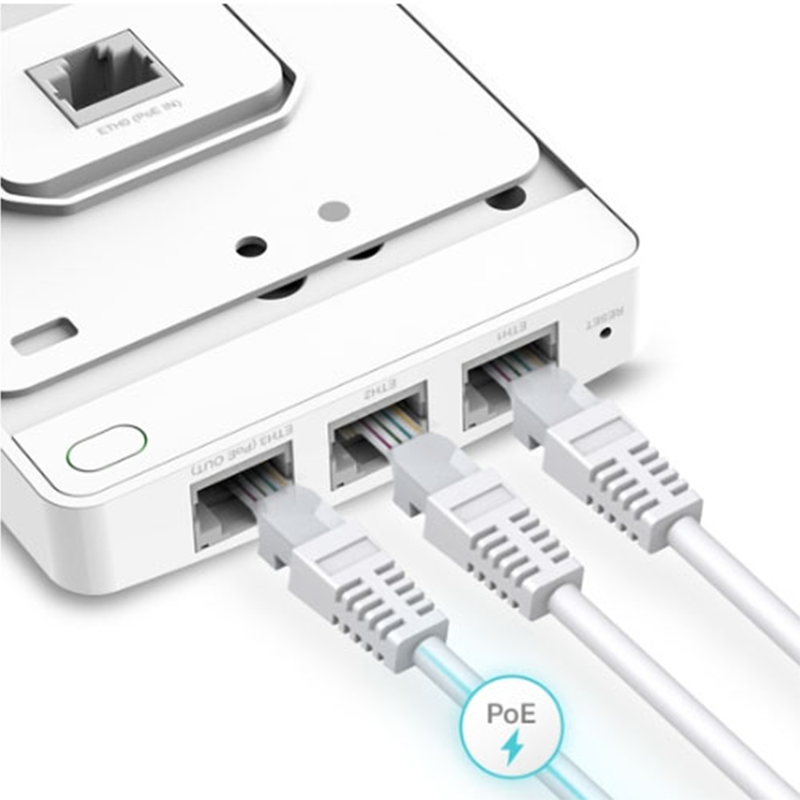

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

HARDWARE FEATURES

• Interface : Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
• Physical Security Lock : Yes
• Button : Reset
• Power Supply : 802.3af/802.3at PoE
• Power Consumption : 9.8 watts
24.4 watts with 13w PoE output
• Dimensions ( W x D x H ) : 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
• Dimensions : 5.6 × 3.4 × 0.8 in. 143 × 86 × 20 mm
• Antenna : 2.4 GHz: 2× 4 dBi
5 GHz: 2× 4 dBi
• Mounting : Wall Plate Mounting

WIRELESS FEATURES

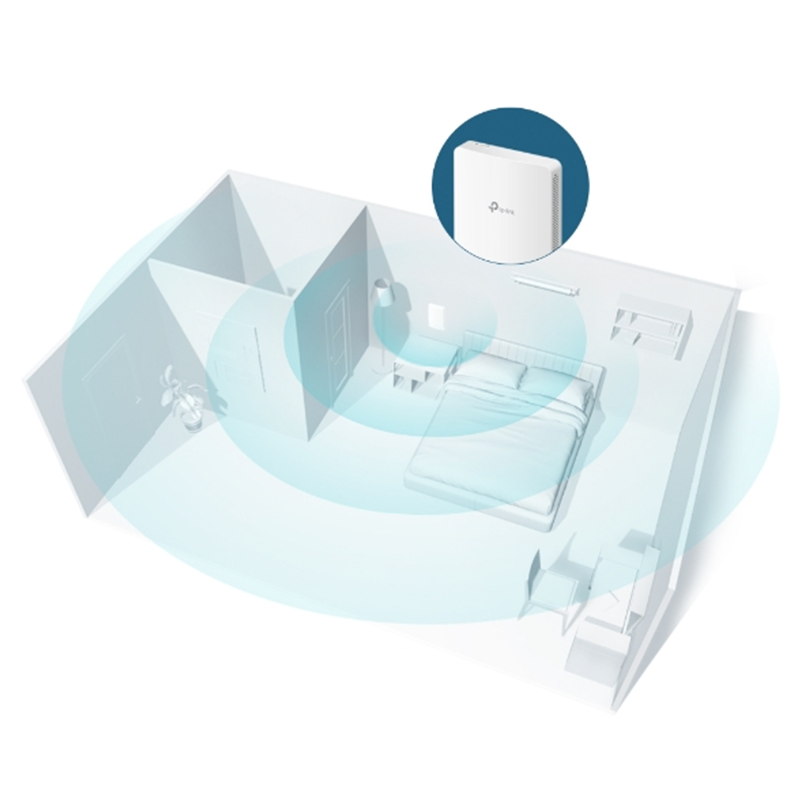

• Coverage : 25㎡(300 ft²)***
• Wireless Client Capacity : 200+**
• Concurrent Clients : 200+**
• Wireless Standards : IEEE 802.11a/b/g/n/ac
• Frequency : 2.4 GHz and 5 GHz
• Signal Rate : 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
• Wireless Functions : 16 SSIDs (Up to 8 SSIDs on each band)
Enable/ disable SSID broadcast
Automatic channel assignment
Transmit power control (adjustable in 1 dBm step)
QoS (WMM)
Band steering
Beamforming
Load balance
Rate limit
Scheduled reboot
Wireless scheduled on/off
Wireless Statistics based on SSID, access point, or client
• Wireless Security : Captive portal authentication
Access control list
Wireless MAC address filtering
Wireless isolation between clients
SSID to VLAN Mapping
LAN port-based VLAN
Rogue AP detection
802.1X EAP support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
• Transmission Power : ≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)

MANAGEMENT

• Omada App : Yes
• Centralized Management : Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
• Cloud Access : Yes
• Email Alerts : Yes
• LED ON/OFF Control : Yes
• Management MAC Access Control : Yes
• SNMP : v1, v2c
• System Logging Local/Remote Syslog : Local/ remote syslog
• SSH : Yes
• Web-based Management : HTTP/ HTTPS
• L3 Management : Yes
• Multi-site Management : Yes
• Management VLAN : Yes
• Zero-Touch Provisioning : Yes. Requiring the use of Omada Cloud-Based Controller.

SKU	EAP235-WALL
MPN	EAP235-WALL
Brand	TP-Link
Shipping Weight	0.3100kg
Shipping Width	0.120m
Shipping Height	0.030m
Shipping Length	0.190m
Unit Of Measure	ea
