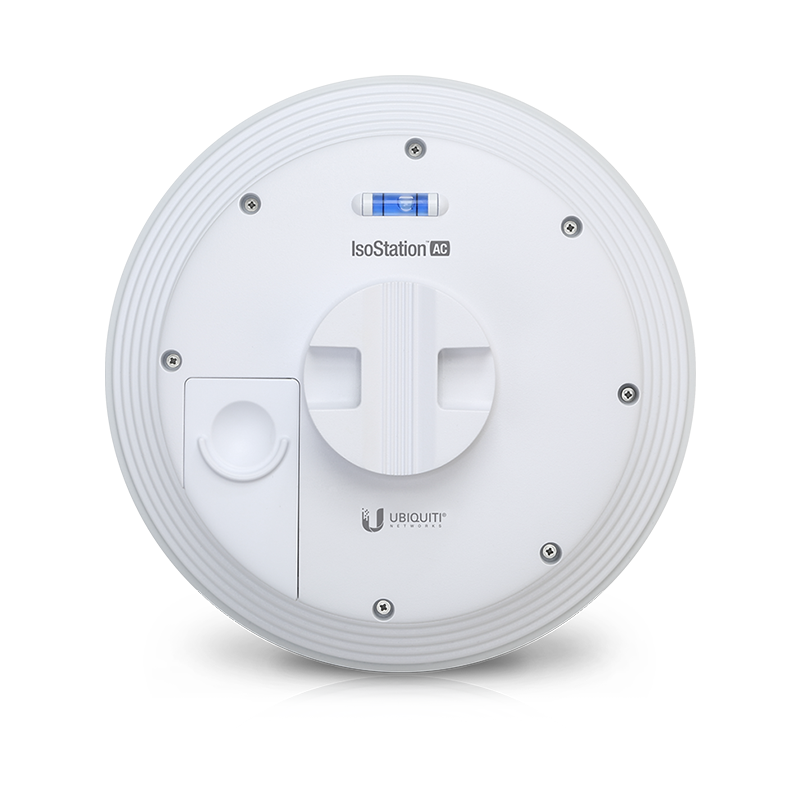

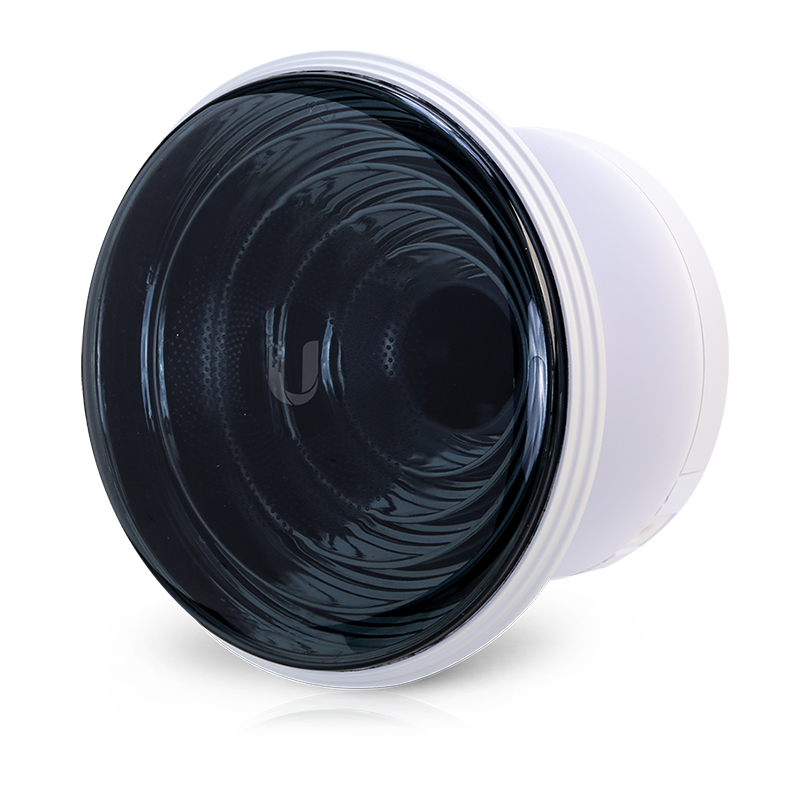

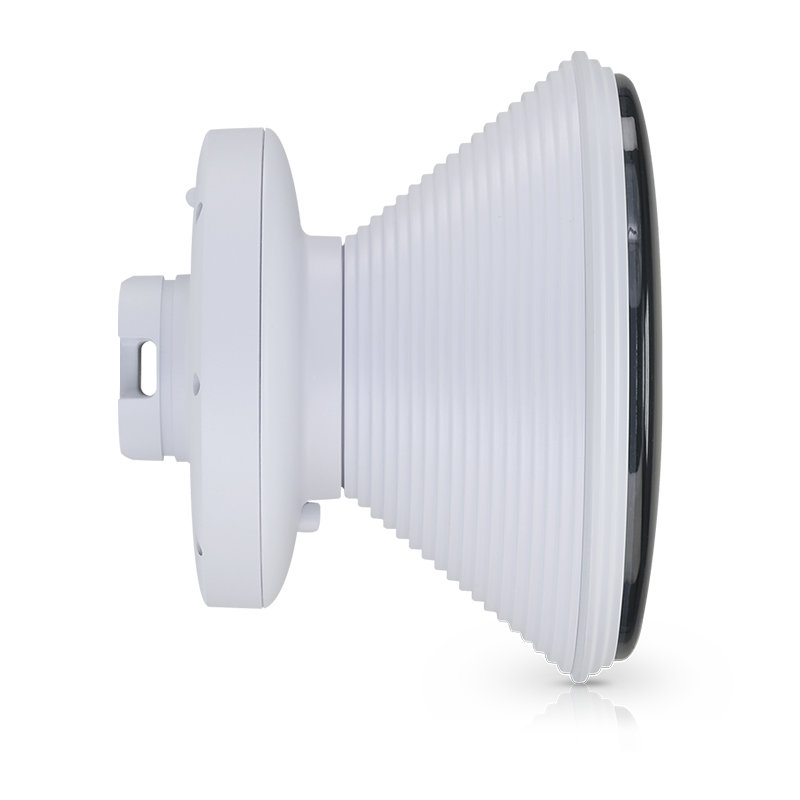

About IsoStation AC, 450+ Mbps, Management Radio

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.

  • 5 GHz, 10+ km link range
  • 450+ Mbps throughput
  • Isolation antenna design rejects RF noise
  • Dedicated spectral analysis radio
Mechanical
Dimensions: Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6")
With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9")
Weight: Without horn: 408.2 g (0.9 lb), With horn: 725.7 g (1.6 lb)
Mounting: Pole mount kit (included)
Wind Loading: 36 N at 200 km/h (8.09 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)

Hardware
Networking Interface: (1) GbE RJ45 port
Power Supply: 24V, 0.5A gigabit PoE adapter (included)
Max Power Consumption: 8.5W
Operating Temperature: -40 to 70 °C (-40 to 158 °F)
Certifications: CE, FCC, IC

System
Gain: 14 dBi
Beamwidth: 45° (default horn)

Operating Frequency
Worldwide: 5150-5875 MHz

Management Radio
Worldwide: 2412 - 2472 MHz



SKU IS-5AC
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
