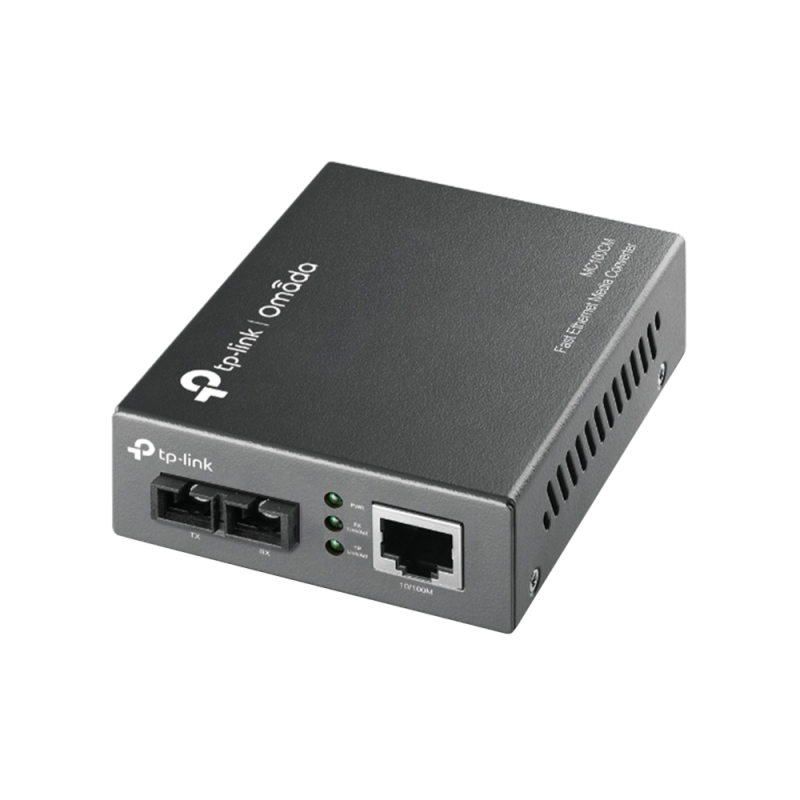

Buy TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter (MC100CM)

About TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 2km.

Package contents:

Media Converter MC100CM
Power Adapter
Installation Guide

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Media Converter & Module

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function:
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Full Duplex Flow Control (IEEE 802.3x)
- Half Duplex Flow Control (Backpressure)
- Extends fiber distance up to 2km
Ports:
- 1 100M SC/UPC port
- 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 10BASE-T:
- UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T:
- UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX: Multi-mode Fiber
LED Indicators: PWR, Link/Act
Dimensions (W*D*H): 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply: External power supply
Max Power Consumption: 2.4W
Safety & Emission: FCC, CE, RoHS
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
