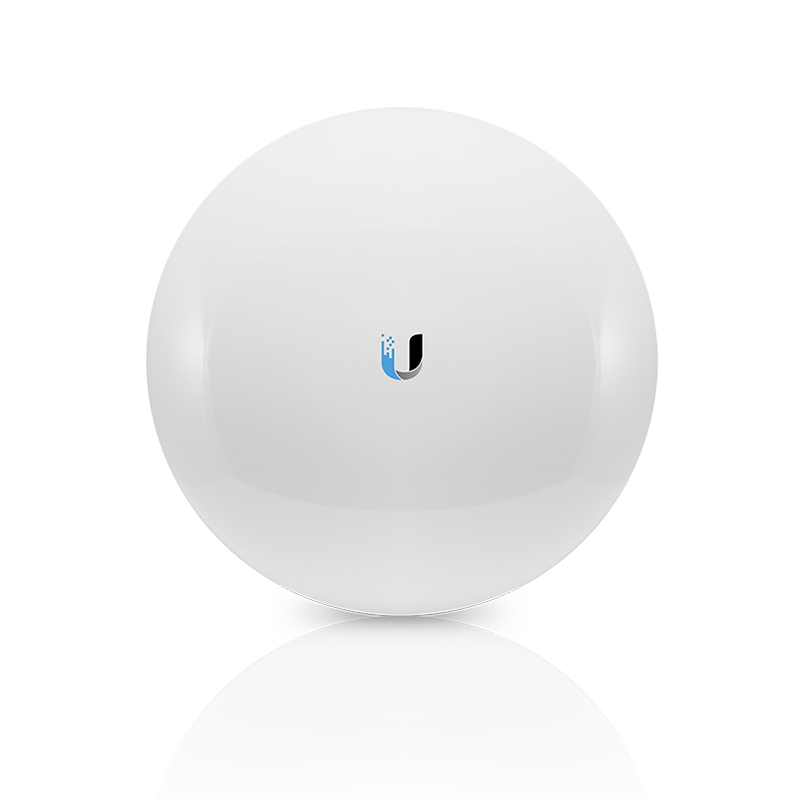

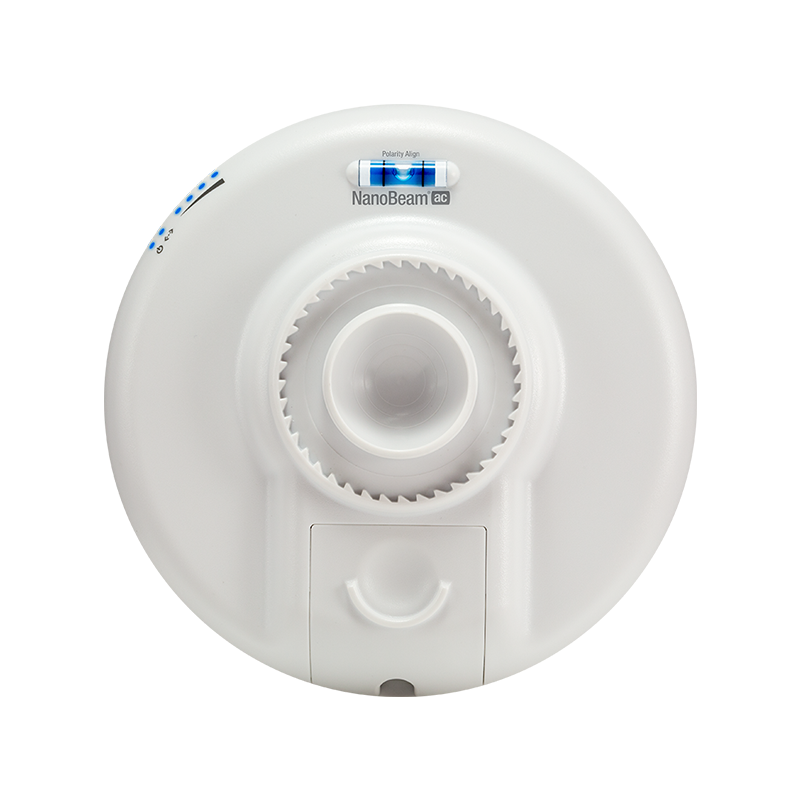

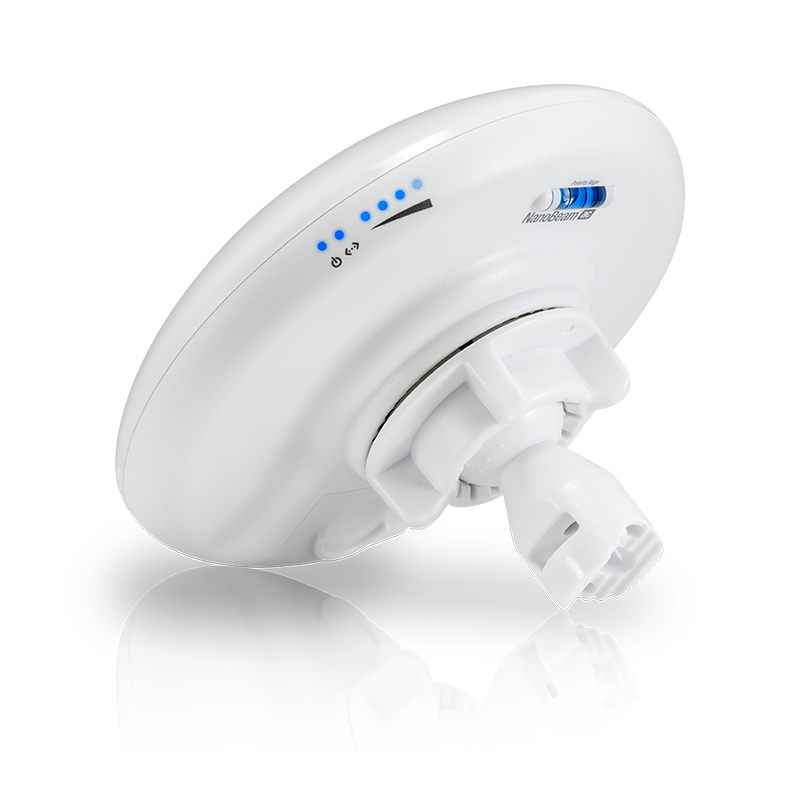

About NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km

UISP-ready, 2.4 GHz WiFi radio that can serve as a point-to-multipoint station.

  • 2.4 GHz, 15+ km link range
  • 150+ Mbps throughput
  • Easy mounting
  • Dedicated spectral analysis radio
  • Dedicated WiFi management radio
Mechanical
Dimensions: 189 x 189 x 125 mm (7.4 x 7.4 x 4.9")
Weight: 530 g (1.2 lb)
Enclosure Material: UV-stabilized plastic

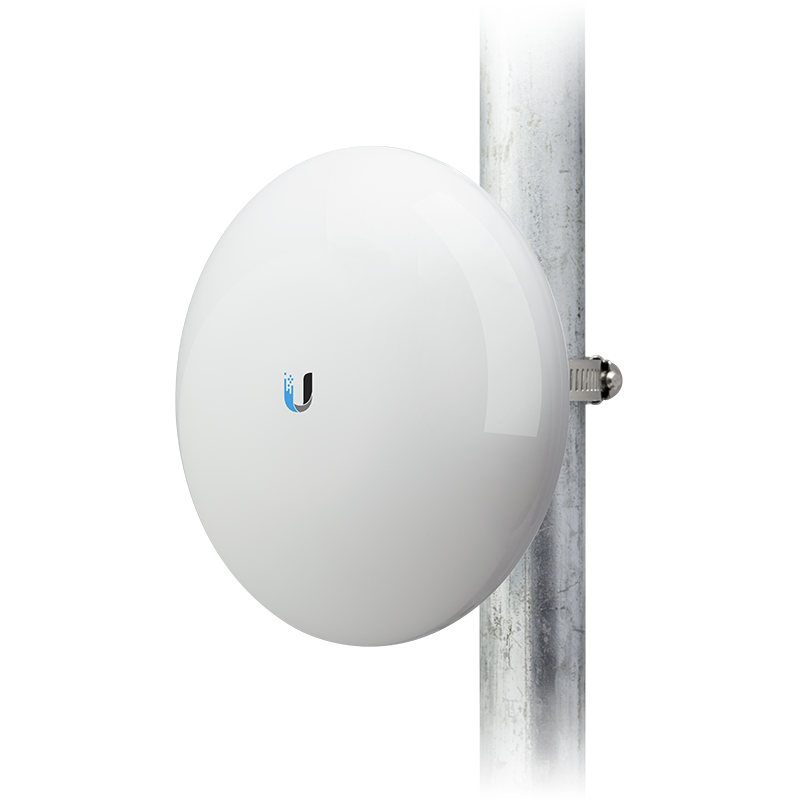

Mounting Options: Pole mount kit (Included), Wall mount (Not included), Window mount (Not included)
Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)

Hardware
Networking Interface: (1) GbE RJ45 port
Power Method: Passive PoE 2-pair
Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range: 20–27V DC
Max. Power Consumption: 7.5W
ESD/EMP Protection: ± 24kV
LED Indicators: Power, Ethernet, (4) signal strength
Environmental Tests: Salt fog, vibration, temperature shock, UV, wind-driven rain
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

System
Gain: 13 dBi
Channel Sizes: 10/20/40 MHz (PtP and PtPM modes)
Max. VSWR: 1.5:1
Polarization: Dual linear

Operating Frequencies
Worldwide: 2412 - 2472 MHz
Management Radio: 5150 - 5250 MHz




SKU NBE-2AC-13
MPN NBE-2AC-13
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
