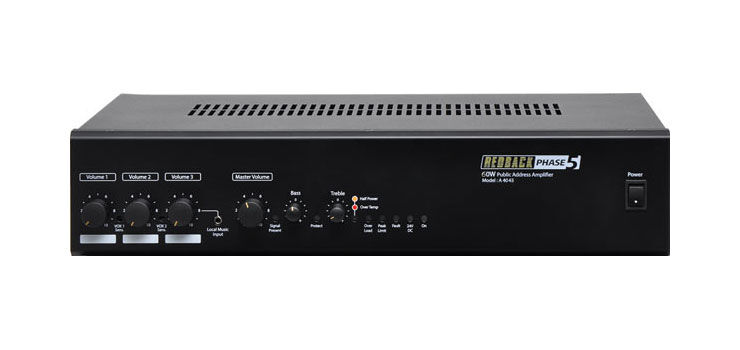

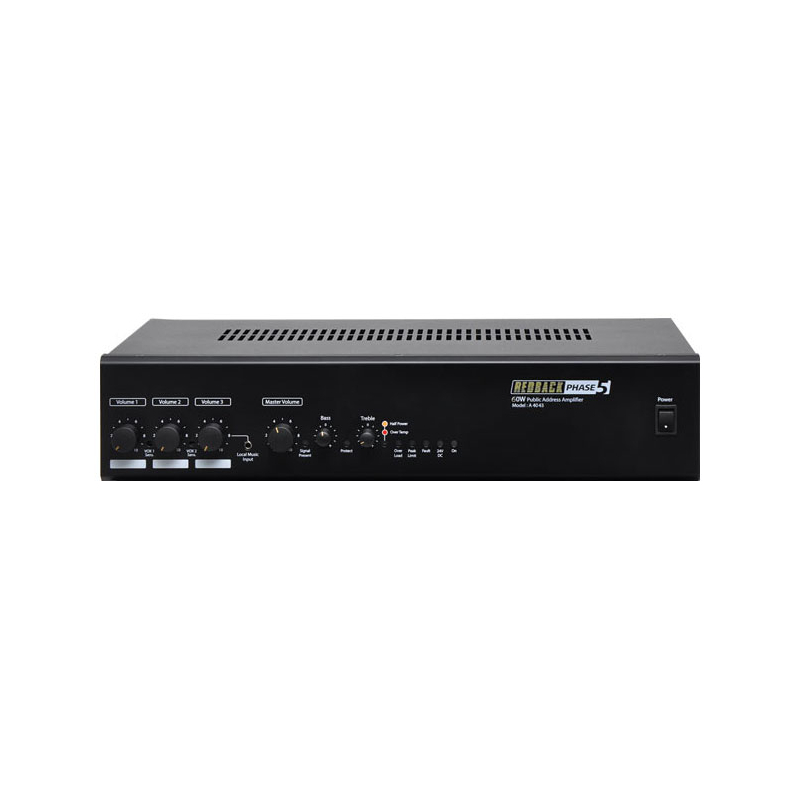

About Phase5 60 Watt 100V Public Address Amplifier

Designed to meet the requirements of medium sized professional public address installations, delivering an output power of 60W RMS. Frequency response extends from 60Hz to 15kHz at a total harmonic distortion (THD) of less than 0.5%. Features include, VOX muting, three balanced XLR microphone inputs, three line RCA inputs, bass and treble controls, enabling a diversity of installation applications, including schools, public halls, workshops and sporting complexes. Inbuilt VOX muting allows input 1 (mic or line) to mute inputs 2-3 and input 2 (mic or line) to mute input 3.

Powered from 240V AC mains or 24V DC permitting battery backup operation during mains power failure. Output is 100V line only. All units feature thermal overload shutdown to protect the amplifier if a speaker fault condition develops.

A 4573 Alert/evac option board: When fitted, generates pre chime, bell, alert and evacuation tones. The alert tone can function continuously, or switch to evac tone after a preset time delay (adjustable 30 seconds to 4.5 minutes). Simply connects to the amplifier internally via the cable provided.

A 4373 Digital remote volume option board: When fitted and used in conjunction with A 2280B wallplate to provide remote volume level adjustment. Ideal for situations where the amplifier is located in a remote rack.


Features

• 3 balanced microphone inputs
• Phantom power on mic inputs
• 3 line inputs
• 19” rack mount kit included
• VOX muting
• Tape output RCA sockets
• Bass and treble tone controls
• 100V line output
• 240V AC or 24V DC operation
• Built in short circuit protection
• 10 year warranty
• Optional evac module available
• Optional remote volume module
• Australian designed & assembled

• POWER OUTPUTS
• Power: 60 Watts RMS
• Distortion: < 0.5%, @ 1kHz
• Output line: 100V
•
• FREQUENCY RESPONSE
• Mic inputs : 50Hz - 12kHz, -3dB
• Line inputs: 50Hz - 15kHz, -3dB
•
• MIC SENSITIVITY
• Mic inputs: 3mV
• Line inputs: 1V
• Music input: 500mV
•
• SIGNAL TO NOISE RATIO
• Mic inputs: > 75dB below rated output
•
• TAPE OUTPUT
• Unbalanced Dual RCA(mono) , Line Level
•
• OUTPUT CONNECTORS
• Speakers: Screw terminals
•
• INPUT CONNECTORS
• Inputs: 3 pin XLR balanced or 2 x RCA
• 24V DC power: Screw terminals
• 240V AC power: IEC power connector
•
• MUTING
• PTT via microphone switch contacts, VOX muting (inputs 1-2)
•
• CONTROLS
• Mic/Line/Music inputs: Volume
• Power: On/off switch
• Indicators: Power, signal present, output peak limiting, overtemp ,Overload Protect, Half Power, 24V DC
•
• GENERAL
• Power Supply: 240V AC or 24V DC
• Fuse Protection: 2A AC, 5A DC
• Dimensions: ≈483W x 250D x 88Hmm
• Weight: 7.2kg

  *Specifications are subject to change without notice.
