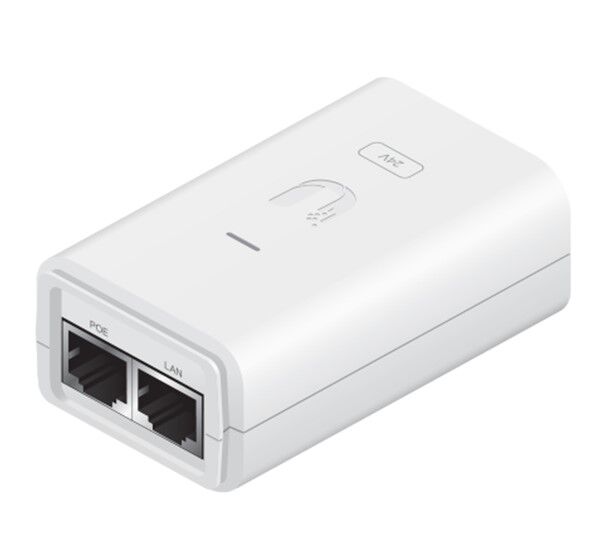

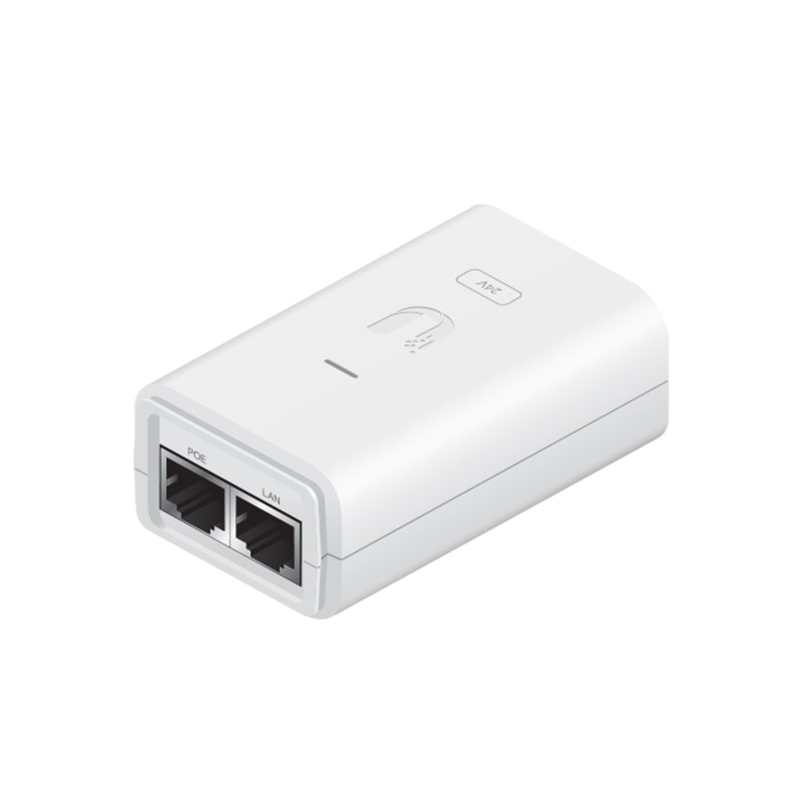

About 24V Gigabit PoE Injector with ESD Protection & LED 0.5A (12W)

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.

  • Surge and clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground
Dimensions: 87 x 44 x 29 mm (3.4 x 1.7 x 1.1")
Weight: 99 g (3.5 oz)
Output Voltage: 24V DC @ 0.5A
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Rated Voltage: 100-240V AC @ 50/60Hz
Input Current: 0.3A @ 120V AC, 0.2A @ 240V AC
Inrush Current: <30A peak @ 120V AC, <60A peak @ 230V AC
Efficiency: 75+%
Output Ripple: 1% Max.
Switching Frequency: 50 kHz
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
Storage Temperature: -30 to 70°C (-22 to 158°F)
Operating Temperature: 0 to 40°C (32 to 104°F)
Operating Humidity: 35 to 95% noncondensing
AC Connector: IEC-320 C6
Surge Protection: Difference and common mode
Certifications: CE, FCC, IC, UL


SKU POE-24-12W-G-WH-AU
MPN POE-24-12W-G
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3
Unit Of Measure ea

1 Year Warranty
