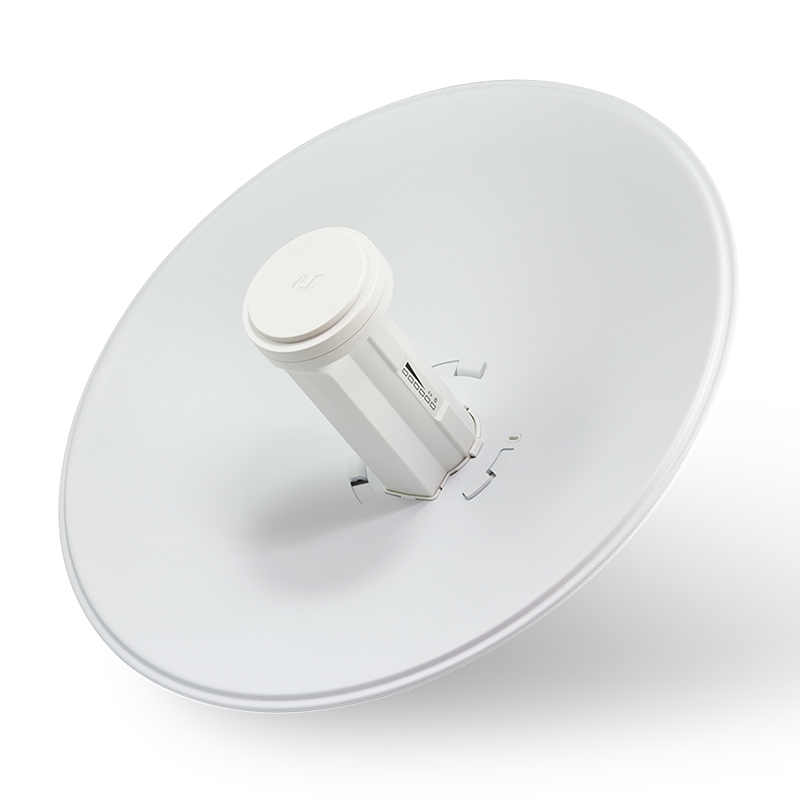

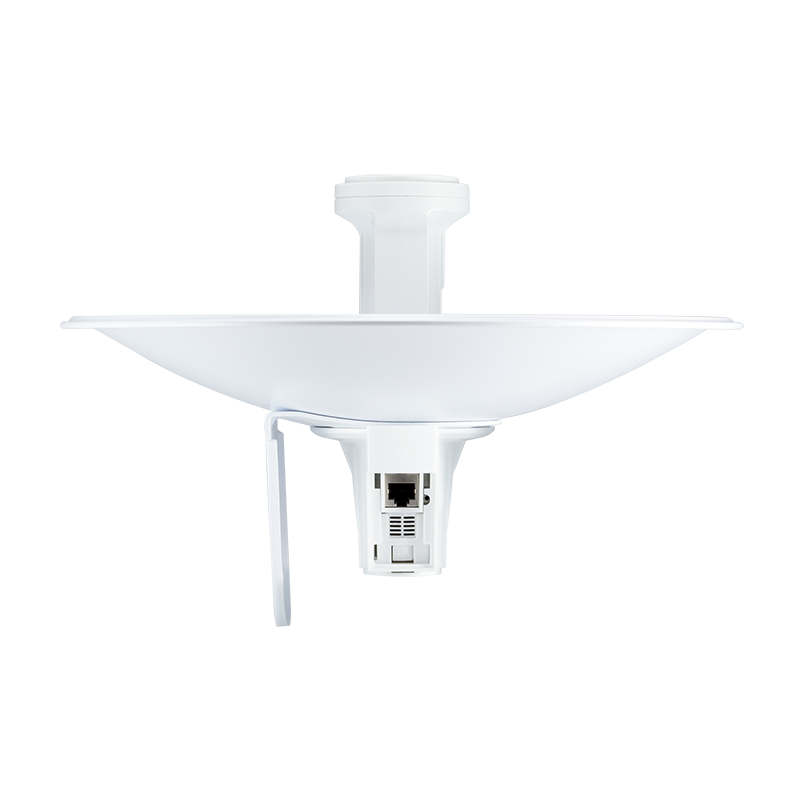

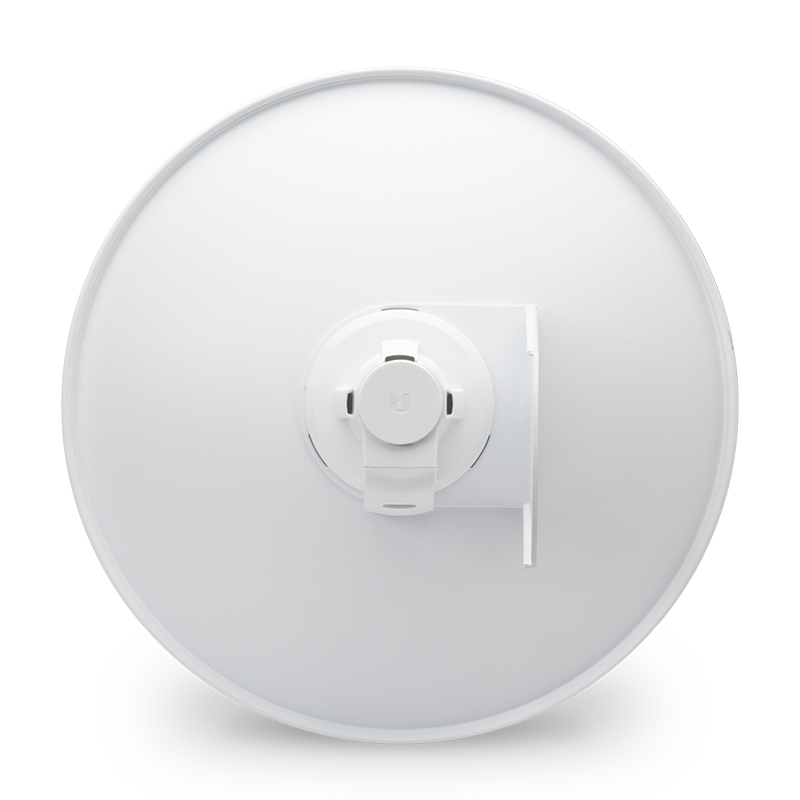

About PowerBeam M5 22dBi 5GHz 802.11n MIMO Antenna

5 GHz, 22 dBi bridge with 150+ Mbps throughput.

  • 5 GHz, 3+ km link range
  • 150+ Mbps throughput
  • Improved mounting
Mechanical
Dimensions: 325 x 325 x 256 mm (12.8 x 12.8 x 10.1")
Weight: 1.2 kg (2.65 lb)
Enclosure Material: UV-stabilized plastic
Mounting: Pole mount kit (Included)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 200.2 N @ 200 km/h (45 lbf @ 125 mph)

Hardware
Networking Interface: (1) 10/100 MbE port
Power Method: Passive PoE 2-pair
Power Supply: 24V, 0.5A PoE adapter (Included)
Supported Voltage Range: 20–27V DC
Max. Power Consumption: 6W
ESD/EMP Protection: ± 24 kV
LED Indicators: (1) Power, (1) LAN, (4) WLAN
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC, RoHS

System
Gain: 22 dBi
Channel Sizes: 5/8/10/20/30/40 MHz
Max. VSWR: 1.5:1
Polarization: Dual linear

Operating Frequency
Worldwide: 5150 - 5875 MHz




SKU PBE-M5-300
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
