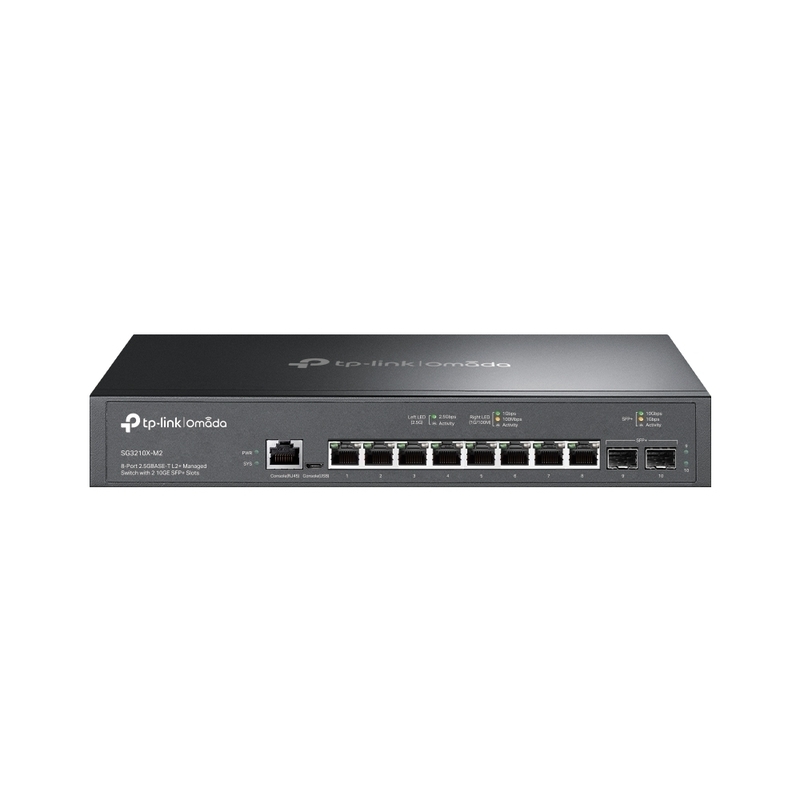

Buy TP-Link TP-Link SG3210X-M2 Omada 8-Port 2.5G L2+ Managed Switch (SG3210X-M2)

About TP-Link SG3210X-M2 Omada 8-Port 2.5G L2+ Managed Switch

2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Package contents:

SG3210X-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features

Interface:
- • 8× 2.5 Gbps RJ45 Ports
- • 2× 10G SFP+ Slots
- • 1× RJ45 Console Port
- • 1× Micro-USB Console Port
Fan Quantity: Fanless Design
Power Supply: 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Mounting: Rack Mountable / Desktop
Max Power Consumption: 15.0 W (110V/60Hz)
Max Heat Dissipation: 51.18 BTU/h (110 V/60 Hz)

Performance

Switching Capacity: 80 Gbps
Packet Forwarding Rate: 59.52 Mpps
MAC Address Table: 16k
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB

Software Features

Quality of Service:
- 802.1p CoS/DSCP priority
- 8 priority queues
- Queue scheduling: SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR
- Bandwidth Control: Port/Flow based Rating Limiting
- Smoother Performance
- Action for Flows
  - Mirror (to supported interface)
  - Redirect (to supported interface)
  - Rate Limit
  - QoS Remark
L3 Features:
- • 32 IPv4/IPv6 Interfaces
- • Static Routing: 48 static routes
- • Static ARP: 128 Static Entries
- • Proxy ARP
- • Gratuitous ARP
- • DHCP Server
- • DHCP Relay: DHCP Interface Relay; DHCP VLAN Relay
- • DHCP L2 Relay
L2 and L2+ Features
- Link Aggregation: static link aggregation; 802.3ad LACP; Up to 8 aggregation groups, containing 8 ports per group
- Spanning Tree Protocol
  - 802.1d STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: TC Protect, BPDU Filter, Root Protect
- • Loopback Detection: Port based; VLAN based
- • Flow Control: 802.3x Flow Control; HOL Blocking Prevention
- • Mirroring: Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Tx/Rx/Both
L2 Multicast
- IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
  - IGMP Snooping Querier
  - IGMP Authentication
- IGMP Authentication
- MLD Snooping
  - MLD v1/v2 Snooping
  - Fast Leave
  - MLD Snooping Querier
  - Static Group Config
  - Limited IP Multicast
- MVR
- Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
VLAN
- VLAN Group: Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 256 Entries
- Protocol VLAN: Protocol Template 16, Protocol VLAN 16
- GVRP
- VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ
- Voice VLAN

Access Control List
- Time-based ACL
- MAC ACL: Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type
- IP ACL:
  - Source IP
  - Destination IP
  - Fragment
  - IP Protocol
  - TCP Flag
  - TCP/UDP Port
  - DSCP/IP TOS
  - User Priority
- Combined ACL
- Packet Content ACL
- IPv6 ACL
- Policy: Mirroring; Redirect, Rate Limit, QoS Remark
- ACL apply to Port/VLAN
Security
- IP-MAC-Port Binding
  - 512 Entries
  - DHCP Snooping
  - ARP Inspection
  - IPv4 Source Guard: 100 Entries
- IPv6-MAC-Port Binding
  - 512 Entries
  - DHCPv6 Snooping
  - ND Detection
  - IPv6 Source Guard: 100 Entries
- • DoS Defend
- • Static/Dynamic Port Security: Up to 64 MAC addresses per port
- • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
- • 802.1X
  - Port base authentication
  - Mac base authentication
  - VLAN Assignment
  - MAB
  - Guest VLAN
  - Support Radius authentication andaccountability
- • AAA (including TACACS+)
- • Port Isolation
- • Secure web management through HTTPS with SSLv3/TLS 1.2
- • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- • IP/Port/MAC based access control
IPv6
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
  - DHCPv6 Client
  - Ping6
  - Tracert6
  - Telnet (v6)
  - IPv6 SNMP
  - IPv6 SSH
  - IPv6 SSL
  - Http/Https
  - IPv6 TFTP

MIBs
- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIB

Management

Omada App: Yes, Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller

Cloud Access: Yes, Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features

Web-based GUI
- Command Line Interface (CLI) through the console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP AutoInstall Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- Password Recovery
- SNTP
- System Log

Others

Certification: CE, FCC, RoHS
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
- Operating Temperature: 0–50 ℃ (32–122 ℉);
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing

SKU	SG3210X-M2
MPN	SG3210X-M2
Brand	TP-Link
Shipping Weight	1.8700kg
Shipping Width	0.250m
Shipping Height	0.080m
Shipping Length	0.400m
