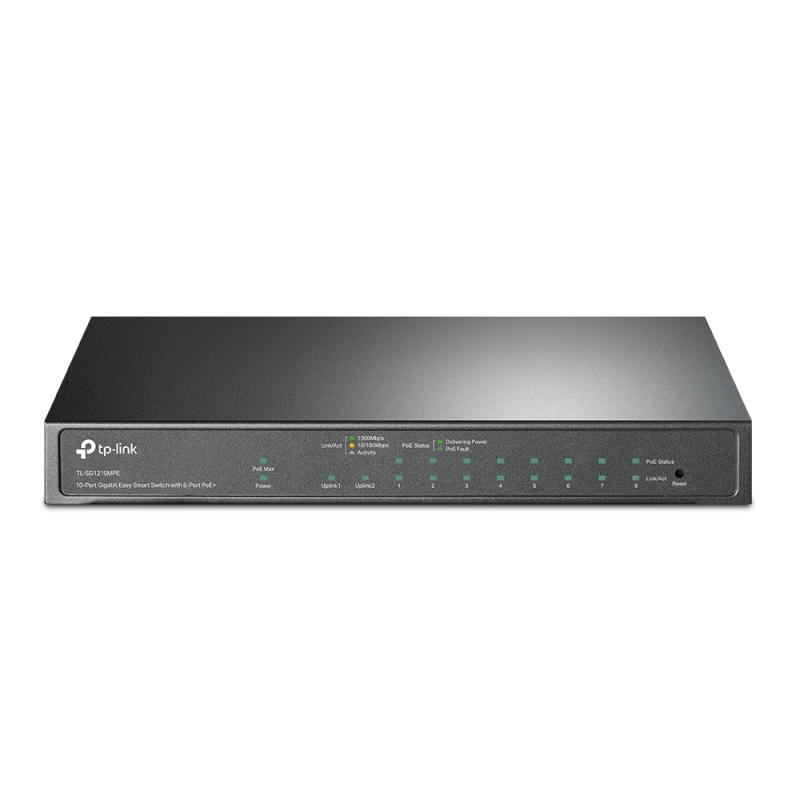

About TP-LINK 10 PORT GIGABIT EASY SMART SWITCH, GbE(10) ,POE+(8), SFP(1), 5YR

  • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
  • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features

• Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3x, 802.1q, 802.1p, 802.3at, 802.3z
• Interface: 9× 10/100/1000 Mbps RJ45 Ports, 1× 1000 Mbps Combo SFP/RJ45 Port with Auto Negotiation/Auto        MDI/MDIX
• Network Media: Supports various UTP and STP cables up to 100m
• Fan: Fanless
• Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
• PoE Ports: 8 ports (802.3 af/at compliant), total power budget of 123W
• Dimensions: 8.2 × 4.9 × 1.0 inches (209 × 126 × 26 mm)
• Max Power Consumption: 7.66 W (no PD connected), 141.54 W (with 123 W PD connected)
• Max Heat Dissipation: 26.12 BTU/h (no PD connected), 482.65 BTU/h (with 123 W PD connected)

Performance

• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4K
• Jumbo Frame: 16 KB

Software Features

• Quality of Service: Supports Port-Based/802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop                  Prevention, PoE Auto Recovery
• VLAN: Supports up to 32 VLANs (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• PoE: Extend Mode
• Management: Web-based GUI, Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward

Others

• Certification: FCC, CE, RoHS

SKU TL-SG1210MPE
MPN TL-SG1210MPE
Brand TP-Link
Shipping Weight 1.5900kg
Shipping Width 0.240m
Shipping Height 0.070m
Shipping Length 0.320m

1 Year Warranty
