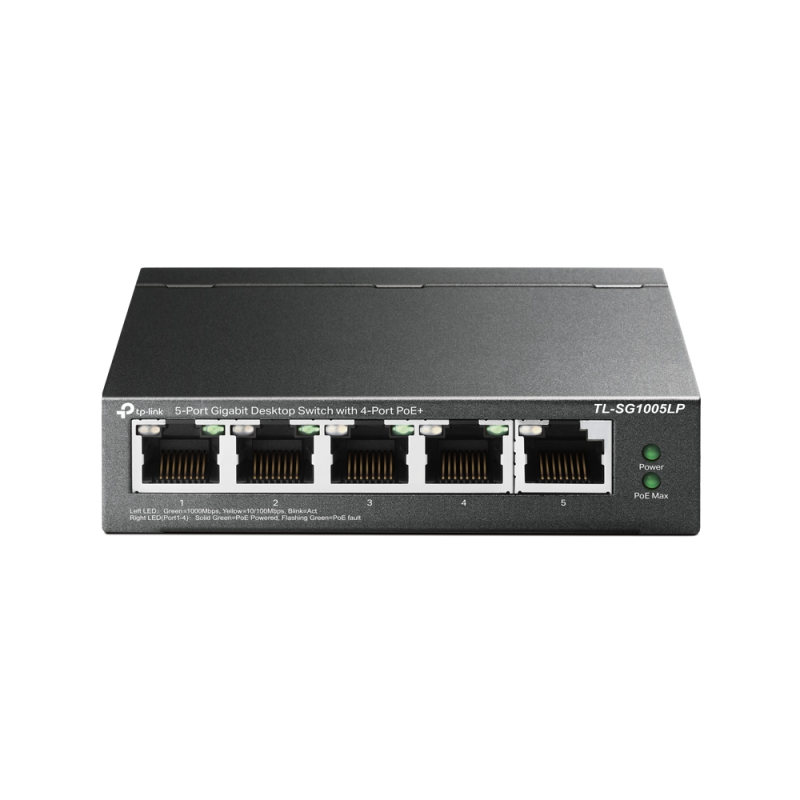

About TP-LINK 5 PORT GIGABIT SWITCH, GbE(5), POE (4), 3YR WTY

  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 40 W for all PoE ports*
  • Plug and play, no configuration and installation required

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Key Hardware Features:

•  Interface: 5× 10/100/1000Mbps RJ45 Ports with AUTO Negotiation and AUTO MDI/MDIX
•  Network Media: Supports various UTP and STP cables up to 100m
•  Fan Quantity: Fanless
•  External Power Supply: 53.5 V DC / 0.81 A
•  Packet Forwarding Rate: 7.44 Mpps
•  PoE Ports: 4 ports, 802.3 af/at compliant, 40 W power supply
•  Mac Address Table: 2K
•  Jumbo Frame: 16 KB
•  Switching Capacity: 10 Gbps
•  Dimensions: 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
•  Max Power Consumption:
 4.12 W (no PD connected)
 47.5 W (with 40 W PD connected)
•  Max Heat Dissipation:
   14.05 BTU/h (no PD connected)
   161.98 BTU/h (with 40 W PD connected)

Software Features:

Advanced Features:
   IEEE 802.3af/at compliant
   Mac Address Auto-Learning and Auto-Aging
   IEEE 802.3x Flow Control
   802.1p/DSCP QoS
   IGMP Snooping
•  Transfer Method: Store-And-Forward

Others:

•  Certification: FCC, CE, RoHS
•  Package Contents: TL-SG1005LP, Power Adapter, Installation Guide

SKU TL-SG1005LP
MPN TL-SG1005LP
Brand TP-Link
Shipping Weight 0.7300kg
Shipping Width 0.130m
Shipping Height 0.120m
Shipping Length 0.200m

1 Year Warranty
