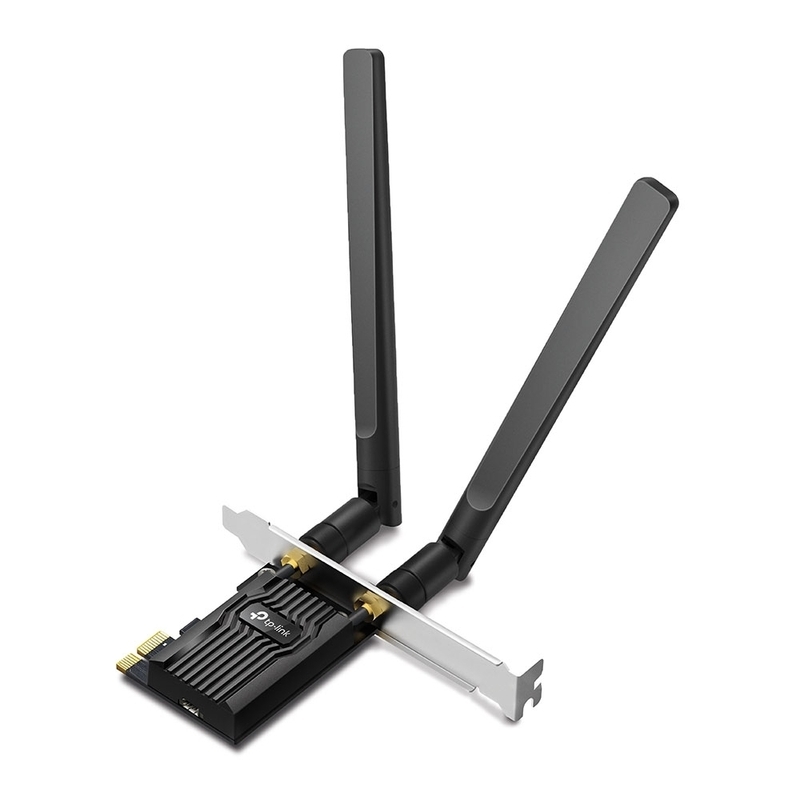

Buy TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (ARCHER-TX20E)

About TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)^†‡

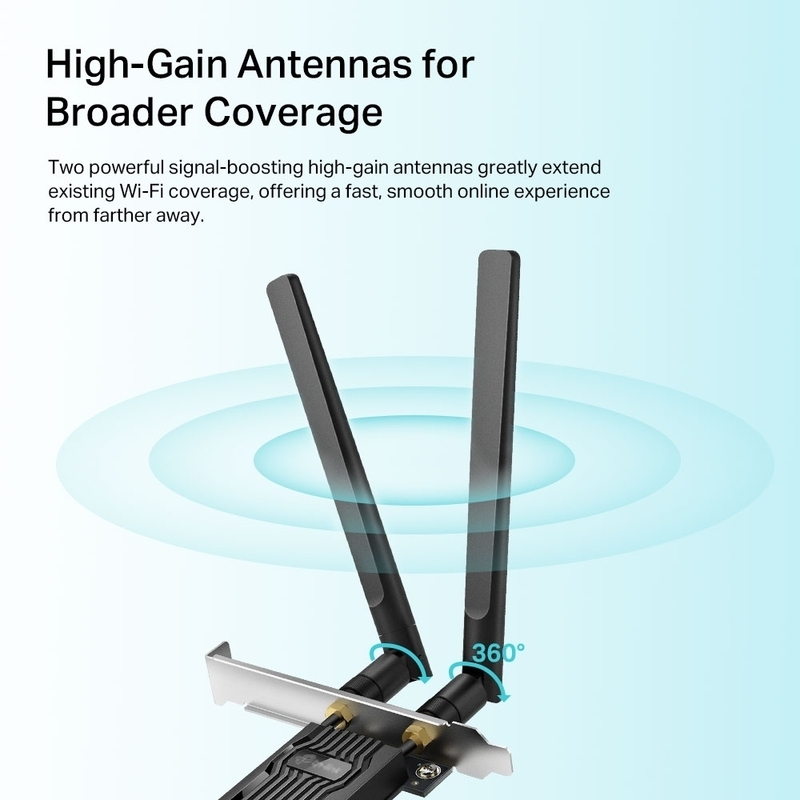

Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2**
Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features:

Dimensions: 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm)

Antenna Type: Two High-Gain Dual Band Antennas

Chipset: Realtek Wi-Fi 6 Chipset

Wireless Features:

Standards:

5 GHz: IEEE 802.11ax/ac/n/a

2.4 GHz: IEEE 802.11ax/n/g/b

Bluetooth: 5.2

Signal Rates:

5 GHz:

11ax: Up to 1201 Mbps

11ac: Up to 867 Mbps

11n: Up to 300 Mbps

11a: Up to 54 Mbps

2.4 GHz:

11ax: Up to 574 Mbps

11n: Up to 300 Mbps

11g: Up to 54 Mbps

11b: Up to 11 Mbps

Reception Sensitivity:

5 GHz: Ranges from -57.0 dBm to -94.5 dBm across various modes.

2.4 GHz: Ranges from -60.0 dBm to -88.0 dBm across various modes.

Transmit Power:

EIRP: 27 dBm (FCC) / 23 dBm (CE) for 5 GHz; 25 dBm (FCC) / 20 dBm (CE) for 2.4 GHz.

Wireless Modes: Supports Infrastructure mode.

Wireless Security: Compatible with 64/128-bit WEP, WPA/WPA2/WPA3, and WPA-PSK/WPA2-PSK.

Modulation Technology: Includes DBPSK, DQPSK, CCK, OFDM, and various QAM formats.

Additional Information:

Certifications: CE, FCC, RoHS

Package Contents: Archer TX20E, two high-gain antennas, low-profile bracket, Bluetooth header cable, quick installation guide, resource CD.

System Requirements: Windows 11/10 (64-bit only).

Operating Environment:

Temperature: 0℃ to 40℃ (32℉ to 104℉)

Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)

Operating Humidity: 10% to 90% (non-condensing)

Storage Humidity: 5% to 90% (non-condensing)

SKU	ARCHER-TX20E
MPN	ARCHER TX20E
Barcode #	840030708800
Brand	TP-Link
Shipping Weight	0.2200kg
Shipping Width	0.200m
Shipping Height	0.040m
Shipping Length	0.150m
Shipping Cubic	0.001298052m3
