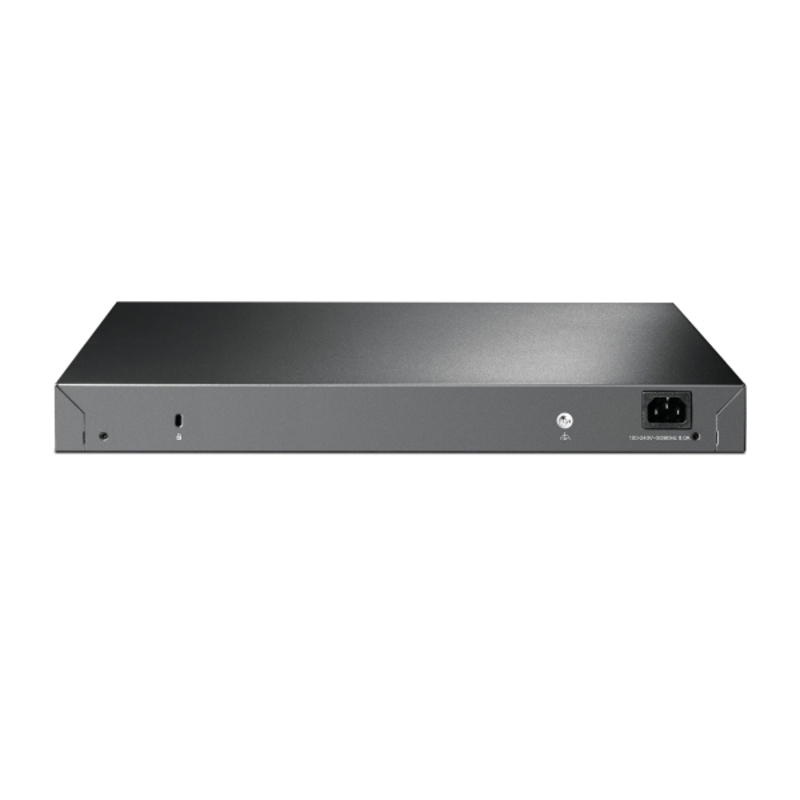

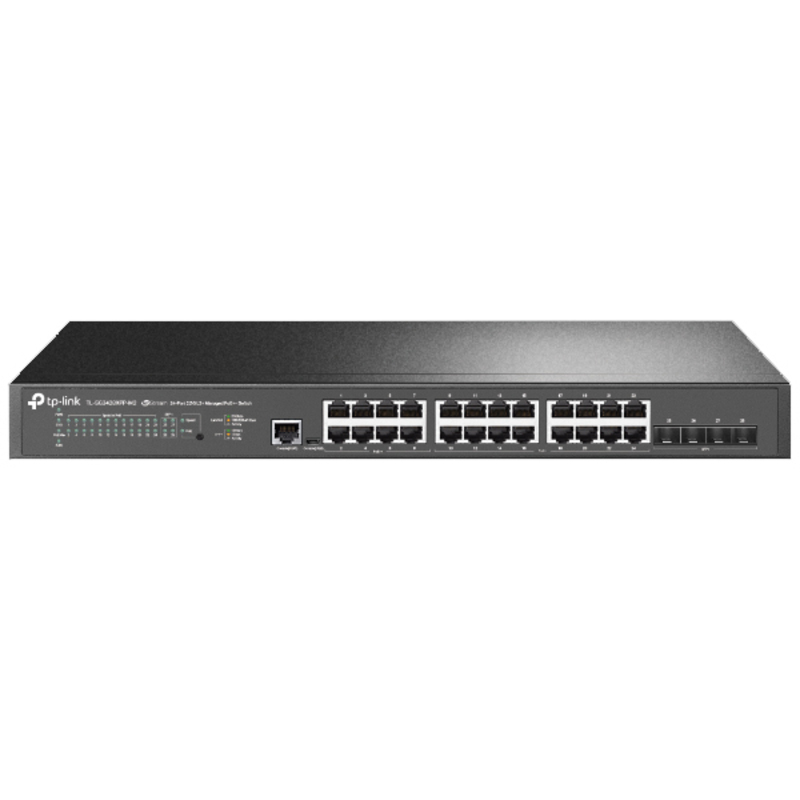

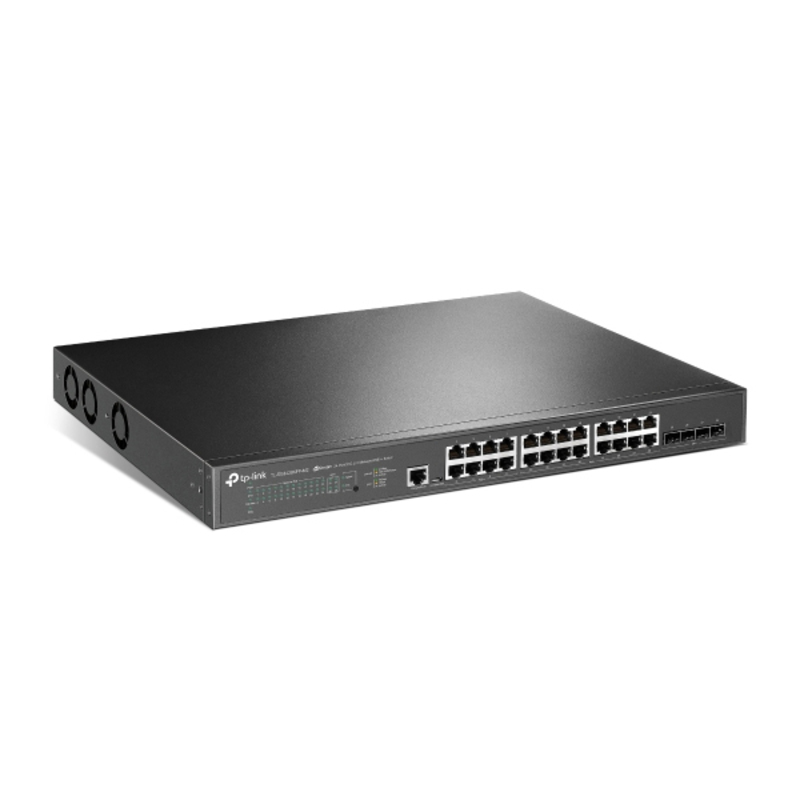

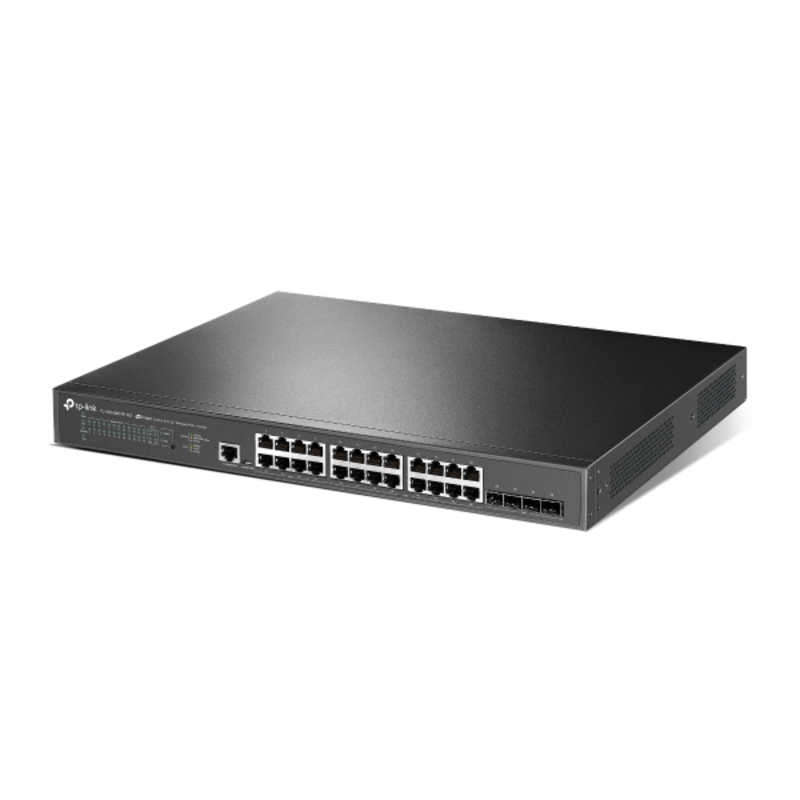

About TP-LINK OMADA 24-PORT MANAGED 2.5G BASE-T L2+ SWITCH, POE+(16), POE++(8), 10GbE SFP+(4

JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

  • 2.5G PoE++/PoE+ Ports for WiFi 7/6E/6: 24× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • 500 W PoE Budget: 8× 802.3bt/at/af/-compliant PoE++ and 16× 802.3at/af-compliant PoE+ ports with a total power supply of 500 W*.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Interface
• 24× 2.5 Gbps RJ45 Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity
3
Power Supply
100-240 V AC~50/60 Hz
PoE Ports (RJ45)
• Standard: 802.3bt/at/af compliant
• PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port
• PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port
• Power Budget: 500 W
Dimensions ( W x D x H )
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting
Rack Mountable
Max Power Consumption
629.1 W (110V/60Hz)
Switching Capacity
200 Gbps
Packet Forwarding Rate
148.80 Mpps

SKU SG3428XPP-M2
MPN SG3428XPP-M2
Brand TP-Link
Shipping Weight 6.1000kg
Shipping Width 0.440m
Shipping Height 0.100m
Shipping Length 0.530m
Unit Of Measure ea

5 Year Warranty
