About TP-Link Omada Central Hub LR Connectivity - Outdoor - 5GHZ - 867MBPS - upto 32 Flex - upto 5KM - 3y

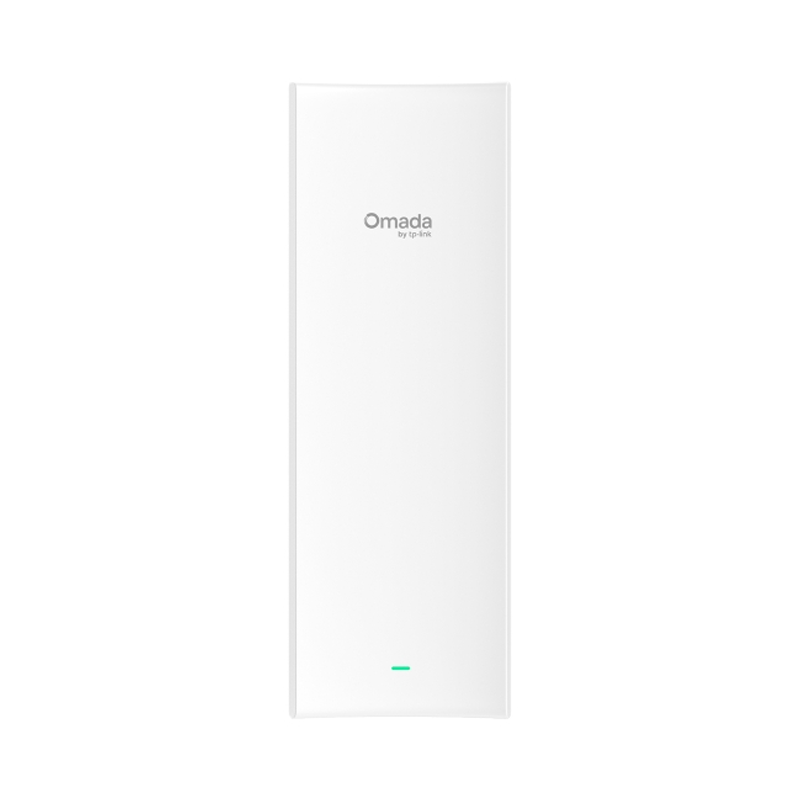

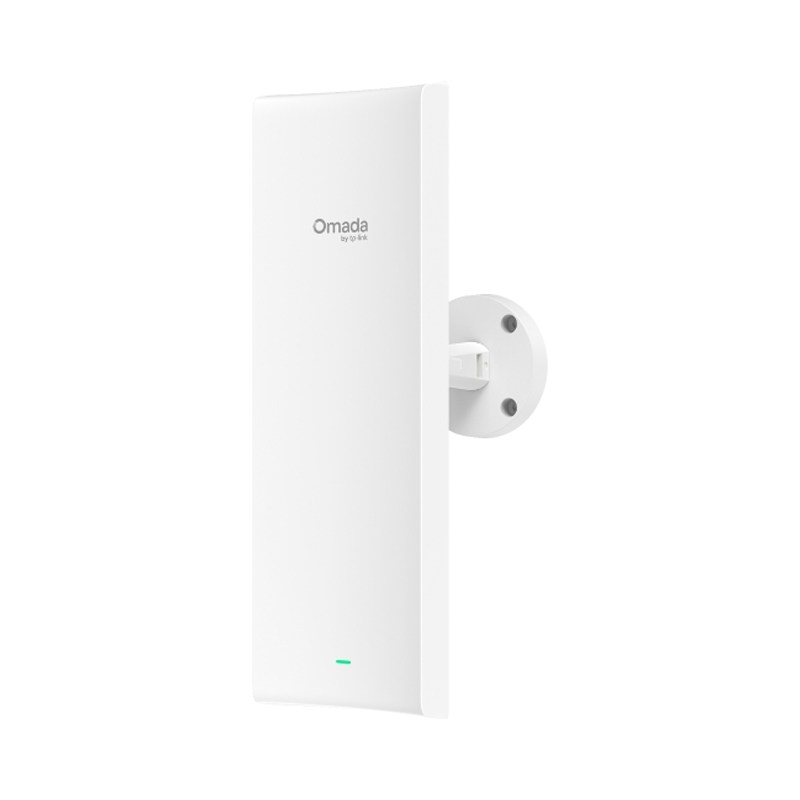

The TP-Link Omada Sector Bridge 5 is a 5 GHz outdoor wireless bridge hub built for point-to-multipoint deployments that need reliable long-range connectivity without running cable. Acting as the central hub in a wireless bridge network, it connects up to 32 Flex Bridge 5 endpoints via TDMA, covering distances of up to 5 km at 867 Mbps — a solid solution for connecting multiple buildings, remote sites, or distributed facilities across a wide area.

Key Features

• Up to 32 Flex Bridge Endpoints — Connects up to 32 Flex Bridge 5 devices via TDMA, making it straightforward to build out large, scalable point-to-multipoint networks from a single hub.
• 5 km Long-Range Connectivity — Delivers 867 Mbps on the 5 GHz band across distances up to 5 km, using powerful 16 dBi dual-polarised directional antennas.
• 120° Wide Beamwidth — A broad 120° coverage arc lets the Sector Bridge 5 serve as an effective central hub for wide-area multipoint deployments.

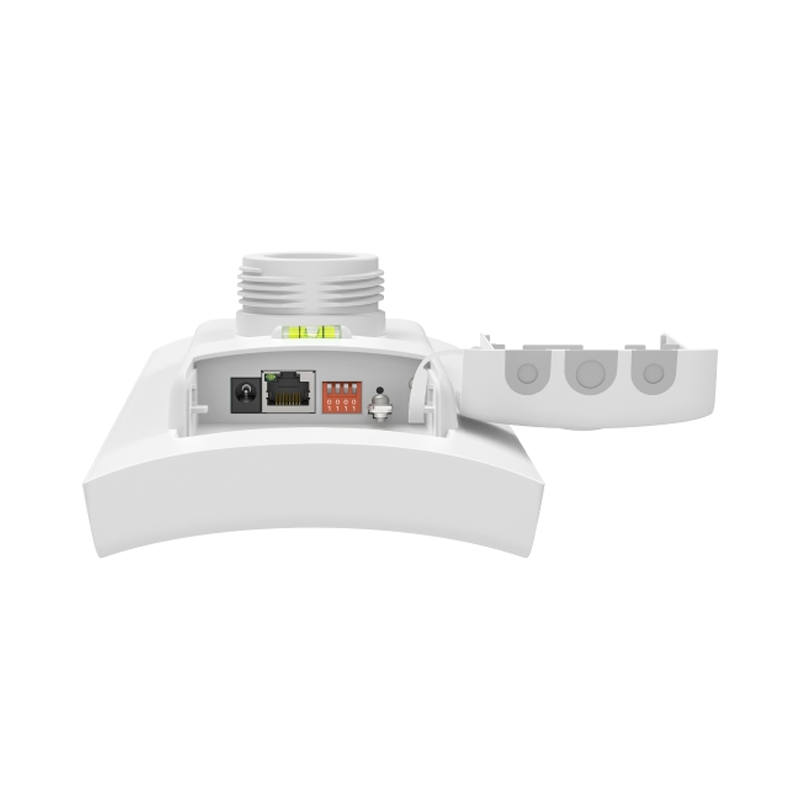

• DIP Switch Pairing — Simple DIP switch pairing with Flex Bridge 5 devices cuts configuration time right down, so you can get deployments up and running faster.
• IP66 & 6kV Lightning Protection — Built tough for permanent outdoor installation, with an IP66-rated weatherproof enclosure, 6kV lightning protection, and an operating range of -40°C to +70°C.
• Flexible Power Options — Supports 802.3af PoE, 24V passive PoE (adapter included), and 12V DC — including solar power systems for off-grid deployments.
• App-Guided Alignment — Visual alignment guidance and instant speed testing via app make long-distance setup much less of a headache.
• Omada SDN & Standalone Management — Manage remotely via the Omada controller or run it in standalone mode — whichever suits your setup.

Why Choose This Product?

If you need to connect buildings or remote locations without laying cable, the Sector Bridge 5 is a top-notch pick. It's built for tough outdoor conditions, scales up easily as your network grows, and fits neatly into the Omada ecosystem. Our Telrexperts can help you plan the right bridge setup for your site and make sure everything's aligned and performing from day one.

What's in the Box

• TP-Link Sector Bridge 5

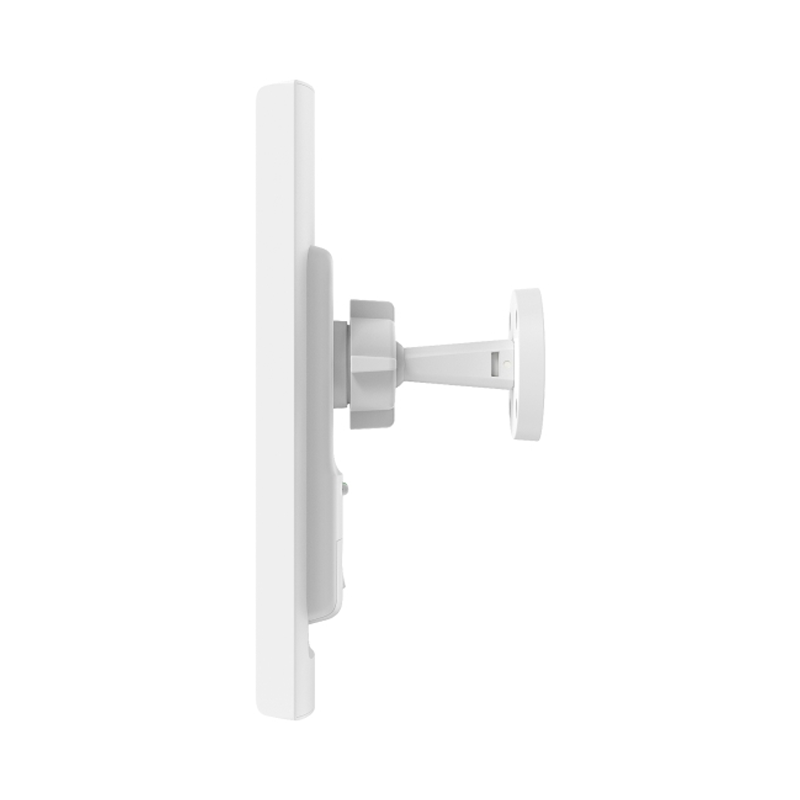

• Ball-Joint Wall/Pole Mount
• 24V Passive PoE Power Adapter
• Mounting Accessories & Hardware
• Quick Installation Guide
