About TP-LINK OMADA VPN ROUTER, 2.5GB-WAN(2), GbE/2.5GB-WAN, SFP GbE/WAN(2), RJ45(8), USB, 5YR W

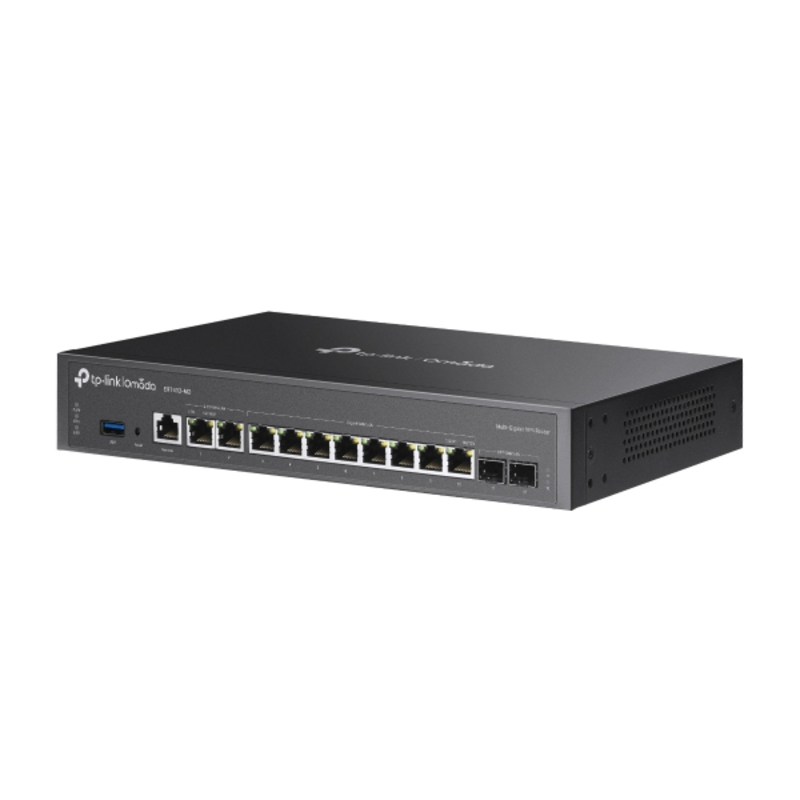

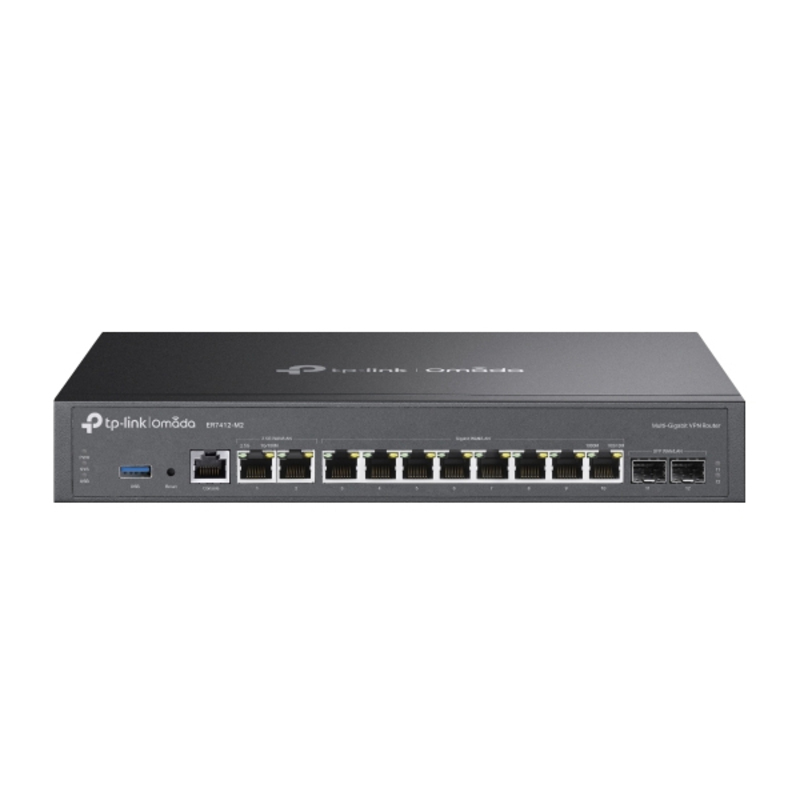

Omada Multi-Gigabit VPN Router

  • Quad-core @2.0GHz CPU
  • 2× 2.5G RJ45 WAN/LAN ports
  • 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
  • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
  • Up to 11 WAN ports
  • Multi-WAN Load Balancing raises the utilization rate of multi-line broadband
  • High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface
• 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Power Supply :100–240 VAC, 50/60 Hz
Dimensions ( W x D x H ) : 11.6×7.1×1.7 in (294×180×44 mm)
Protection : 4 kV surge protection
Enclosure : Steel
Mounting
• Desktop
• Rackmountable
Max Power Consumption : 18.5W (With USB 3.0 connected)

SKU ER7412-M2
MPN ER7412-M2
Brand TP-Link
Shipping Weight 2.1000kg
Shipping Width 0.250m
Shipping Height 0.080m
Shipping Length 0.400m

5 Year Warranty
