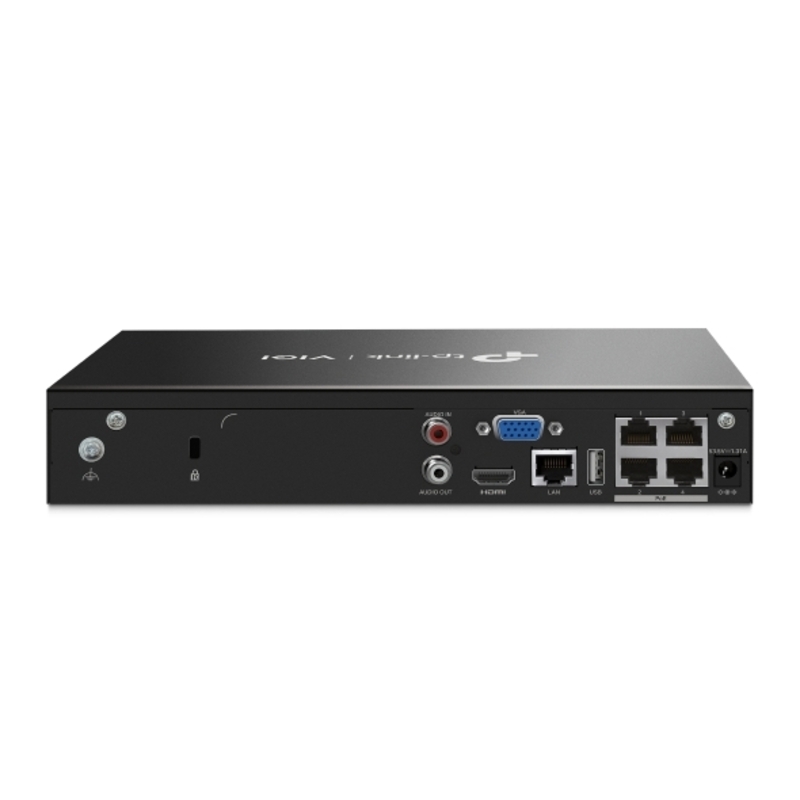

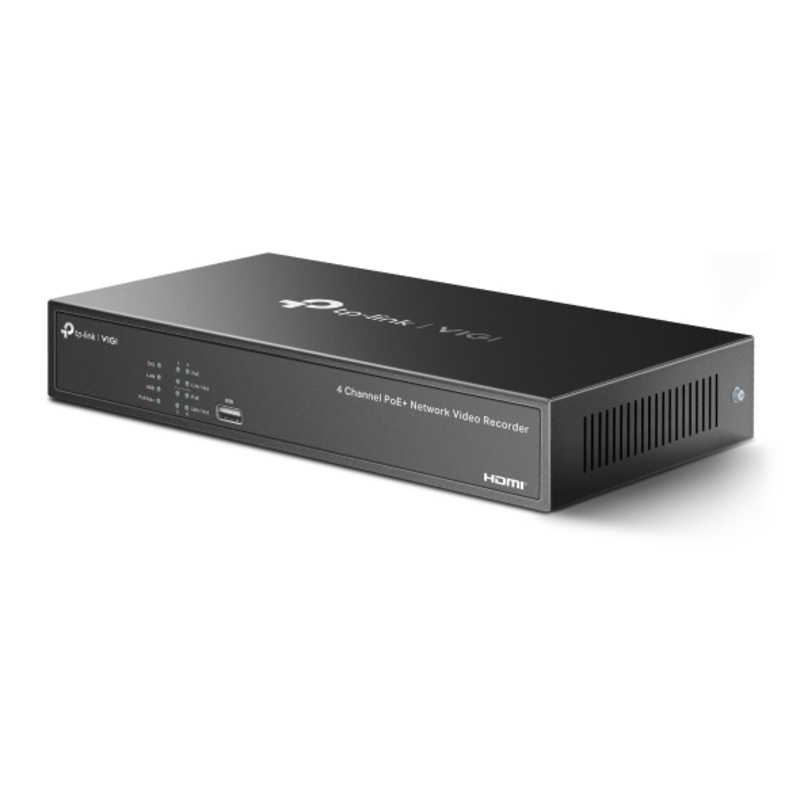

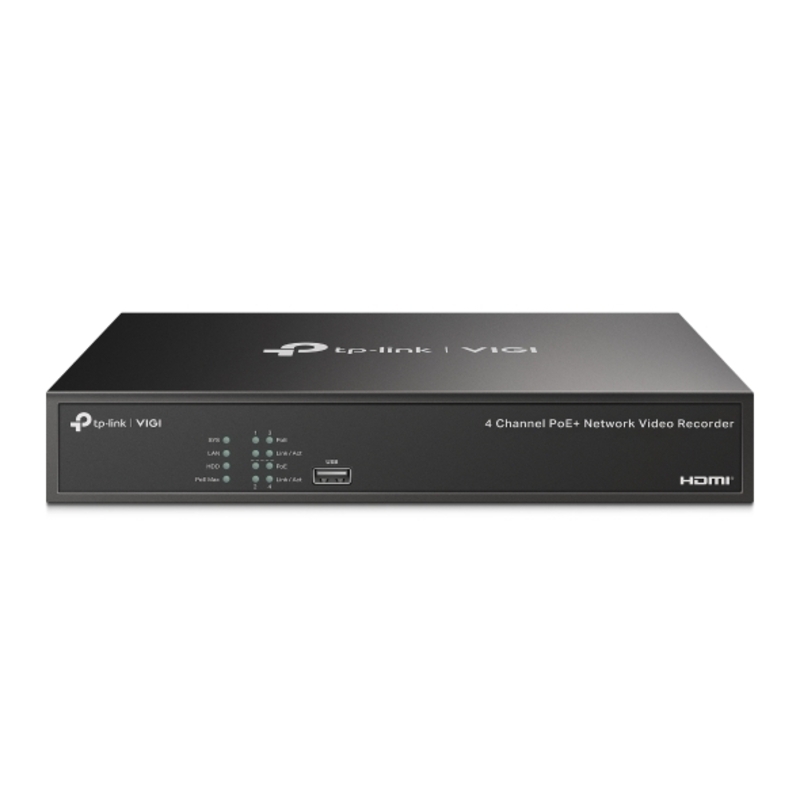

About TP-LINK VIGI NVR1004H 4P 4 CHANNEL POE NETWORK VIDEO RECORDER, 3YR WTY

VIGI 4 Channel PoE+ Network Video Recorder

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
  • 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.

VIDEO AND AUDIO
IP Video Input  - 4-Channel
Incoming Bandwidth  - 80 Mbps
Outgoing Bandwidth   - 60 Mbps
HDMI Output Resolution - 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution - 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode - HDMI/VGA Simultaneous Output

NETWORK
Protocol - TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access    - Android, iOS
Incoming Bandwith - 80 Mbps
Outgoing Bandwidth   - 60 Mbps
Web Browser - Chrome (57+), Firefox (52+), Edge (91+)

EXTERNAL INTERFACE
Network Interf - ce - 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface   - 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface - 1-ch RCA Input; 1-ch RCA Output
Power - 1× DC Jack

SKU VIGI-NVR1004H-4P
MPN VIGI NVR1004H-4P
Brand TP-Link ENTERPRISE
Shipping Weight 1.3700kg
Shipping Width 0.250m
Shipping Height 0.060m
Shipping Length 0.400m

3 Year Warranty
