Buy TP-LINK WIRELESS BRIDGE INDOOR/OUTDOOR ACCESS POINT, (EAP215-BRIDGE-KIT)

About TP-LINK WIRELESS BRIDGE INDOOR/OUTDOOR ACCESS POINT,

TP-Link Omada EAP215-Bridge-Kit | 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

High-speed wireless connectivity, engineered for long-distance bridging.

The TP-Link EAP215-Bridge-Kit is a high-performance 5GHz wireless bridge designed to extend your network across large distances—up to 5km. Perfect for connecting remote warehouses, farm buildings, or security cameras to a central network, this kit provides a stable, high-speed connection without the expense and complexity of laying underground fibre cables.

Seamless Point-to-Point Connectivity

Featuring 802.11ac Wi-Fi technology, this kit delivers speeds of up to 867Mbps on the 5GHz band. The built-in high-gain directional antennas and dedicated high-power amplifiers ensure that your data travels further with minimal interference, even in high-density wireless environments.

Omada SDN Integration

As part of the Omada Software Defined Networking (SDN) ecosystem, the EAP215-Bridge-Kit can be managed centrally alongside your access points, switches, and gateways. Monitor your bridge link, update firmware, and manage network settings from a single interface—anywhere, anytime.

Built for the Elements

Designed for both indoor and outdoor deployments, the EAP215-Bridge-Kit features an IP65-rated weatherproof enclosure. It is built to withstand harsh environments, including rain, wind, and extreme temperatures, while the 6KV lightning protection ensures your network stays safe during electrical storms.

Key Features:

High-Speed 5GHz Wi-Fi: Up to 867Mbps for lag-free data and video streaming.
Long-Range Coverage: High-gain antennas support point-to-point links up to 5km.
Auto-Pairing Technology: Units come pre-configured for instant, "out-of-the-box" setup.
Passive PoE Support: Simplify installation by running power and data over a single Ethernet cable.
Centralised Management: Full integration with the Omada SDN platform for remote cloud management.
Rugged Design: IP65 weatherproof and dustproof housing with durable UV-resistant materials.

Technical Specifications:

Wireless Standard	IEEE 802.11 a/n/ac (5GHz)
Maximum Speed	867 Mbps
Antenna Gain	3 internal 7 dBi directional antennas
Interface	3× Gigabit Ethernet Ports per unit
Power Method	Passive PoE (24V) or 12V DC
Weatherproofing	IP65 Enclosure with 6KV Lightning Protection

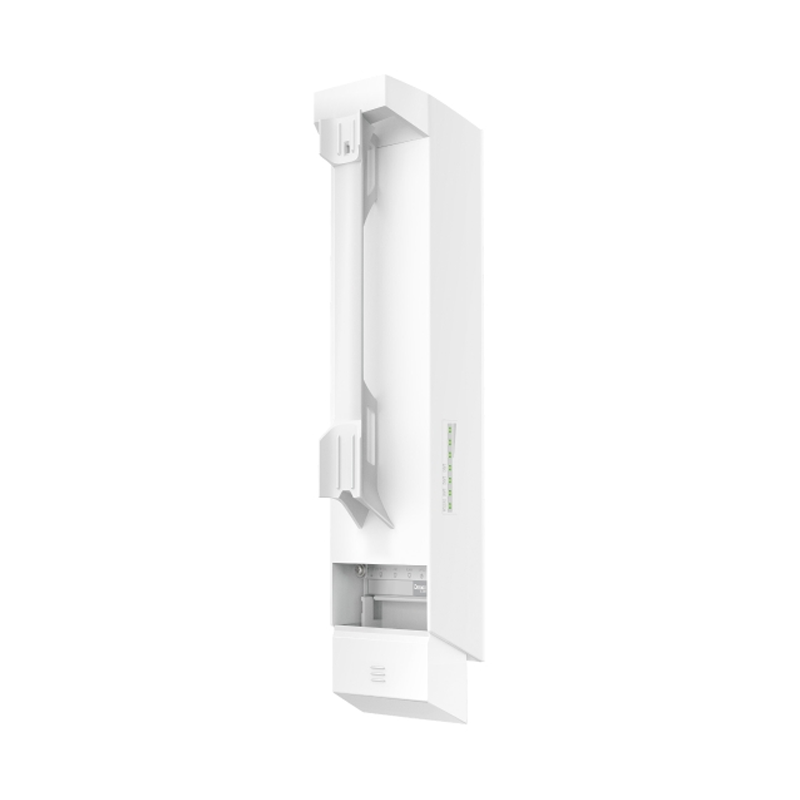

Deployment	Pole or Wall Mount (Kits included)

What’s in the Box:

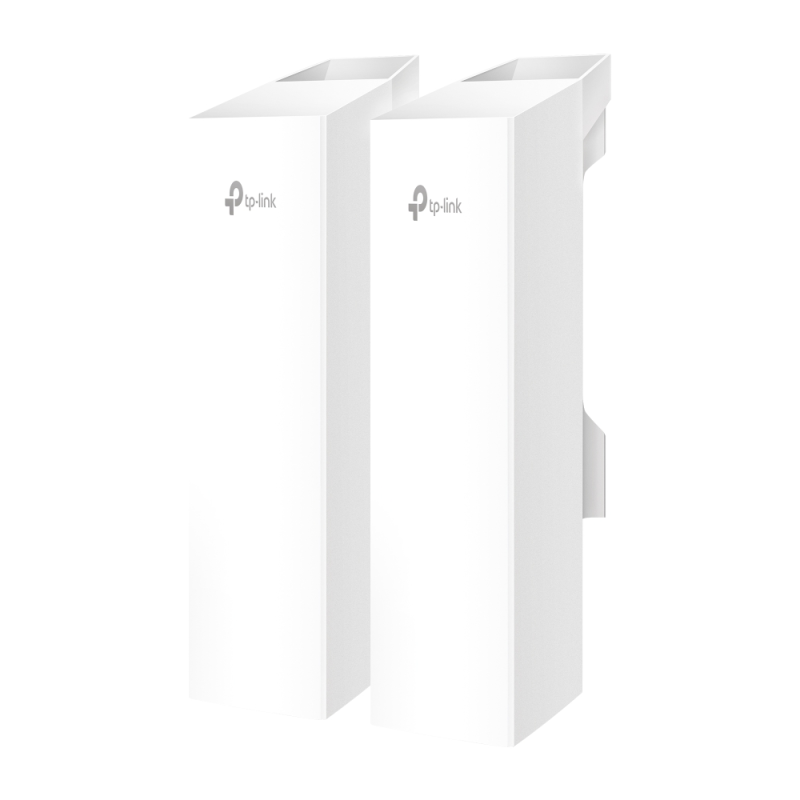

2× EAP215-Bridge Units
2× Passive PoE Adapters
Power Cords
Pole and Wall Mounting Kits
Quick Installation Guide

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

HARDWARE FEATURES

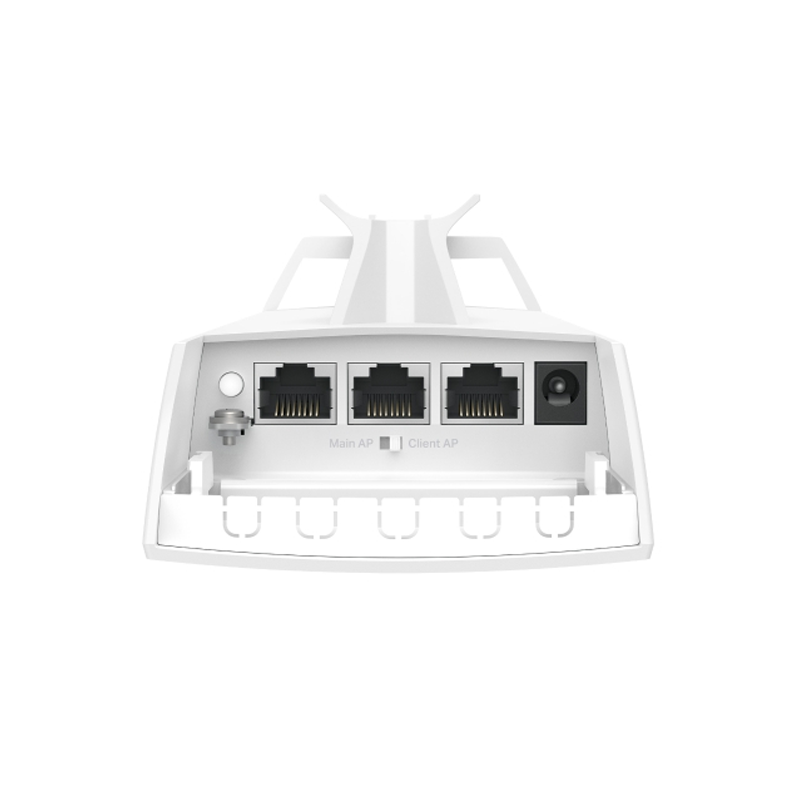

• Interface : 3x Gigabit Ethernet Ports
• Button : Reset
• Power Supply : 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Power Consumption : 11.5W
• Dimensions ( W x D x H ) : 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
• Antenna Type Internal : 2×2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
• Weatherproof Enclosure : IP65
• Mounting : Pole mounting (Accessories included)

WIRELESS FEATURES

• Coverage : 5000m(16400ft)5
• Wireless Standards : IEEE 802.11 a/b/g/n/ac
• Frequency : 5 GHz
• Signal Rate : 5 GHz: Up to 867 Mbps
• Wireless Functions :
Mesh*4
MU-MIMO: 5G 2x2 MU-MIMO DL
Load Balance
Beamforming
Airtime Fairness
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
• Wireless Security :
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication*4
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• Transmission Power :
CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

FCC:
<22dBm (5 GHz band1/4)

MANAGEMENT

• Omada App : Yes
• Restore & Backup : Yes
• Firmware update via Web : Yes
• NTP : Yes
• Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
• Cloud Access : Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
• LED ON/OFF Control : Yes
• Management MAC Access Control : Yes
• SNMP : v1, v2c, v3
• SSH : Yes
• Web-based Management : Yes

SKU	EAP215-BRIDGE-KIT
MPN	EAP215-BRIDGE-KIT
Brand	TP-Link
Shipping Weight	0.0500kg
Shipping Width	0.020m
Shipping Height	0.060m
Shipping Length	0.020m
Shipping Cubic	0.000020000m3
Unit Of Measure	ea
