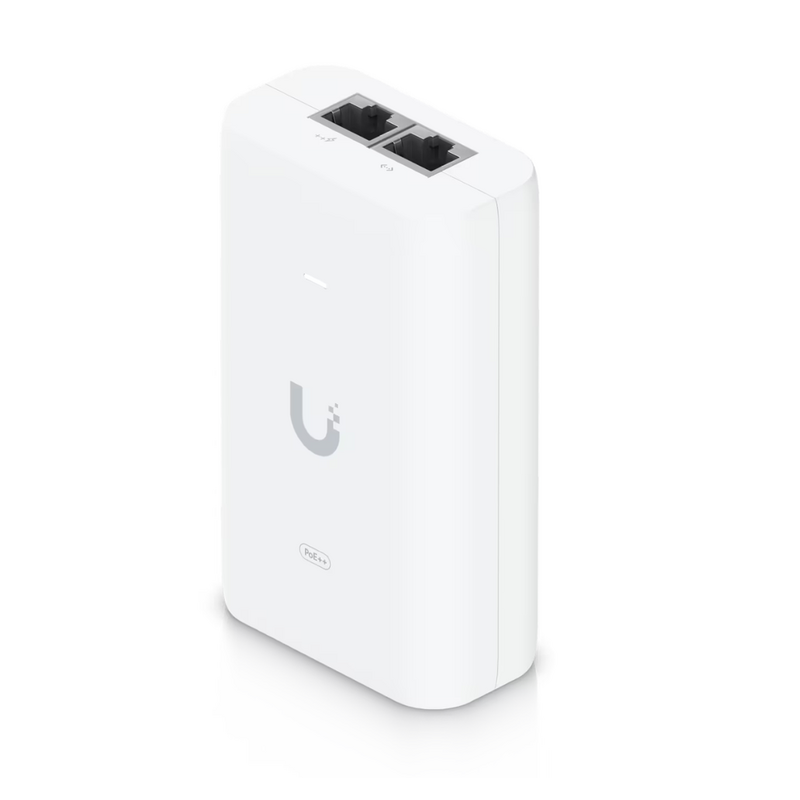

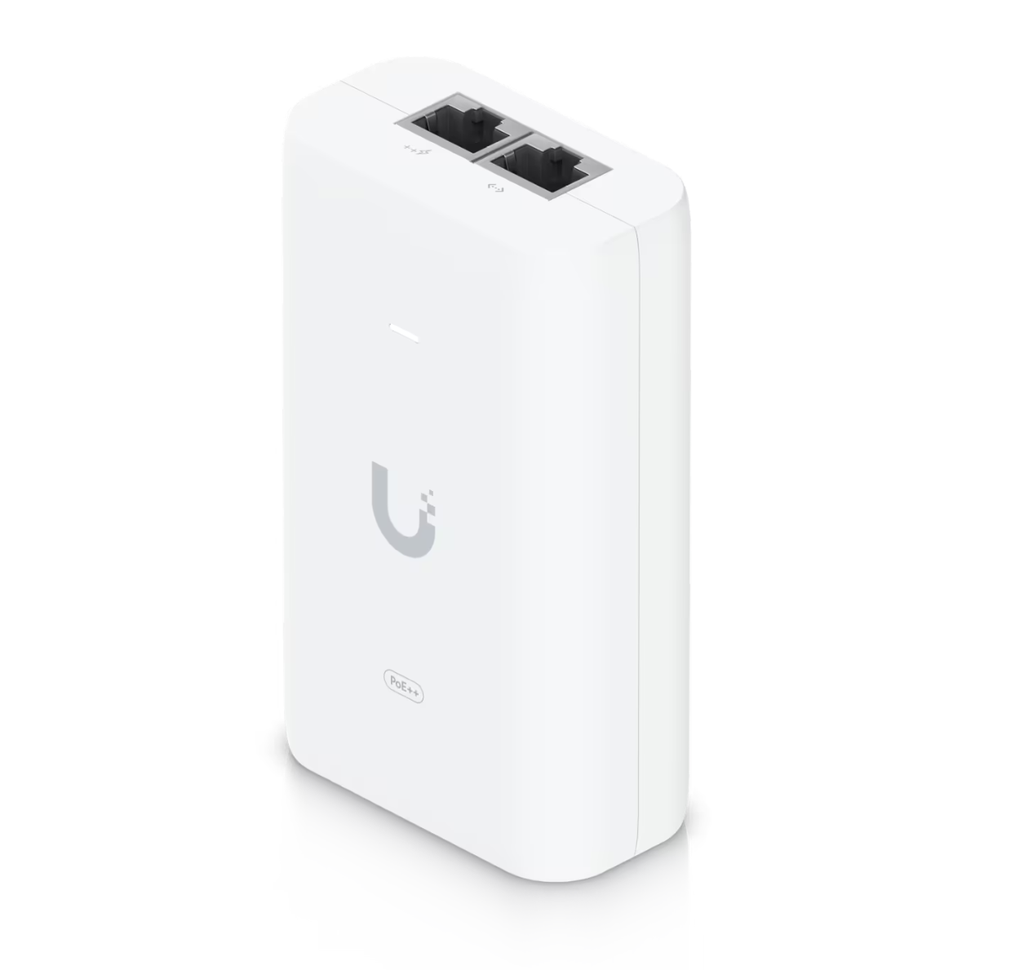

About Ubiquiti UACC-PoE+++-10G 10G PoE+++ Adapter (90W)

Ubiquiti UACC-PoE+++-10G 10G PoE+++ Adapter (90W)

Ubiquiti POE adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 90W of PoE+++

Surge, peak pulse, and overcurrent protection

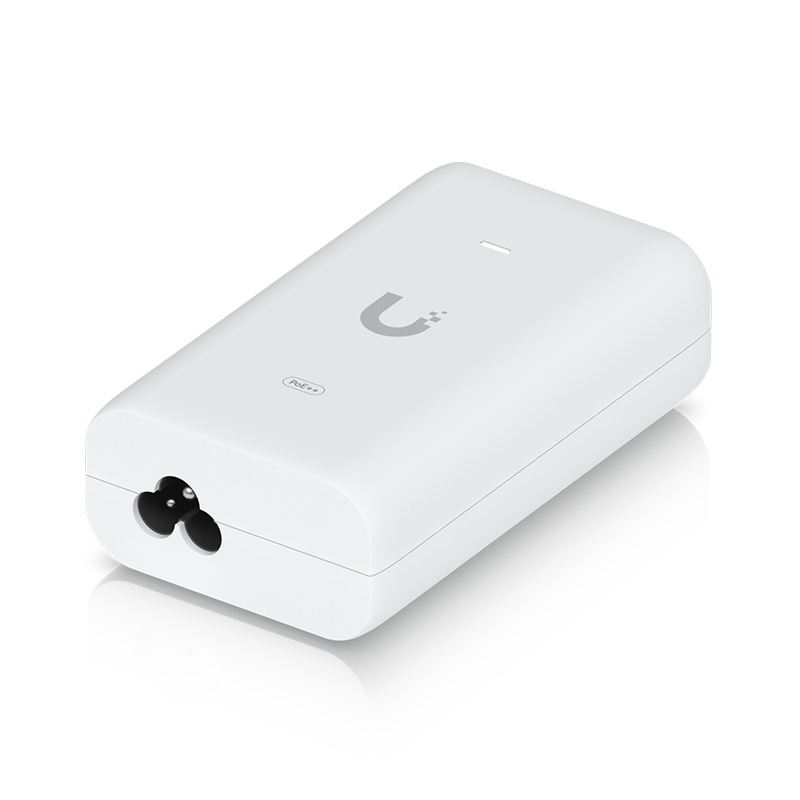

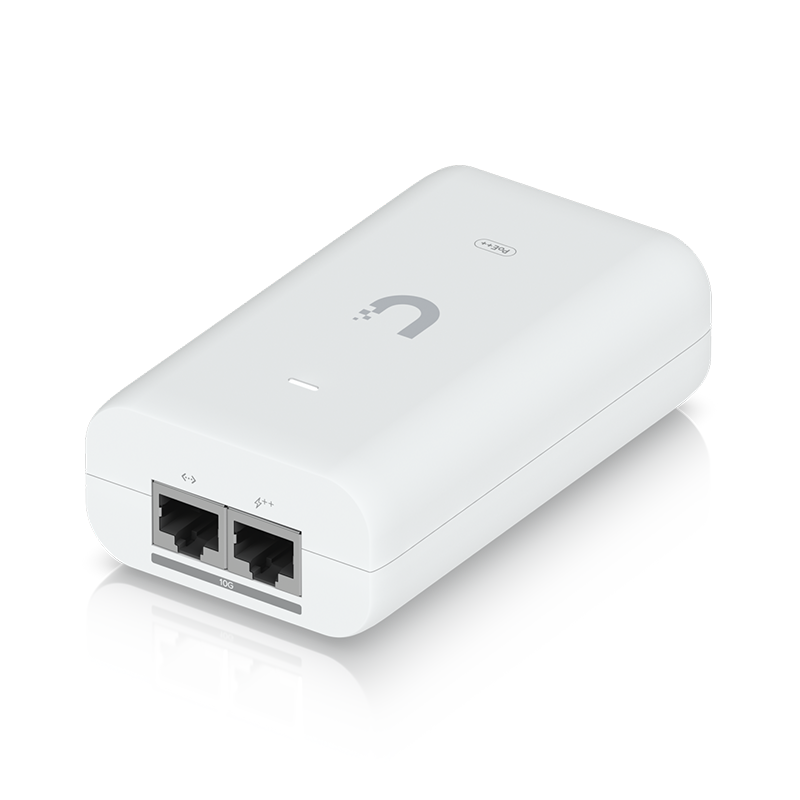

Contains RJ45 data input, AC cable with earth ground, and PoE+++ output

LED indicator for status monitoring

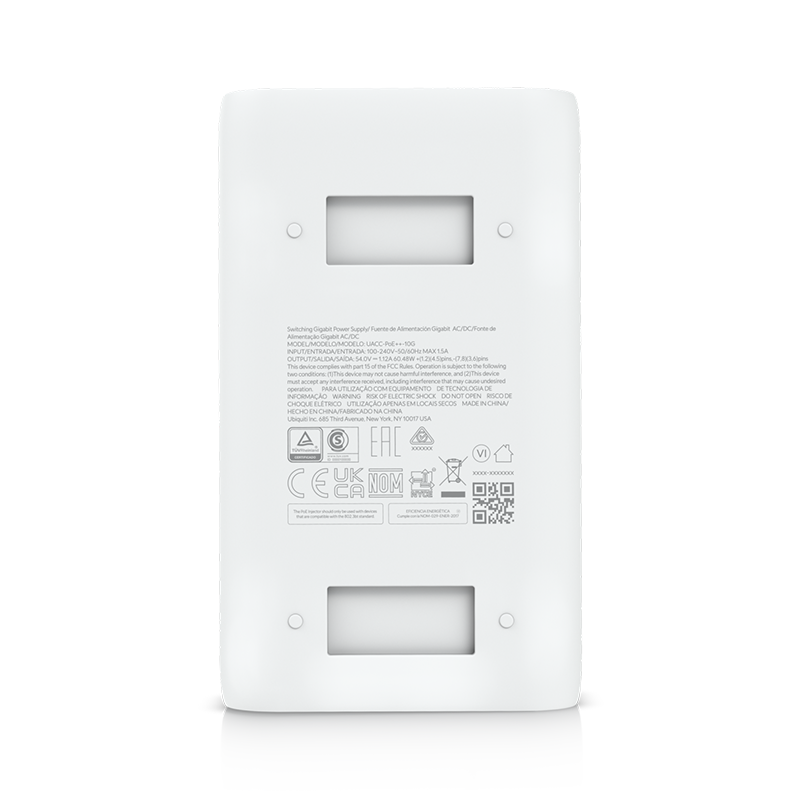

Supports wall mount, DIN rail and floating mount*




Technical Specifications

Overview
Dimensions
164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7")
Weight
372 g (13.1 oz)
Output Voltage
54V DC @ 1.67A
Rated Voltage
100—240V AC at 50/60Hz
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
No
Reset Button
No
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection
11V data, 60V power
Data In / PoE
RJ45 shielded socket
Input Current
1.5A Max.
Inrush Current
<120A peak @ 230V AC
Efficiency
>88%
Switching Frequency
65 kHz
Output Ripple
1% Max.
Line Regulation
≤ 2%
Load Regulation
≤ 5%
Max. PoE+ Wattage per Port by PSE
90W
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
SKU UACC-PoEPLUSPLUSPLUS-10G
MPN UACC-PoE+++-10G
Brand Ubiquiti
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Unit Of Measure ea
