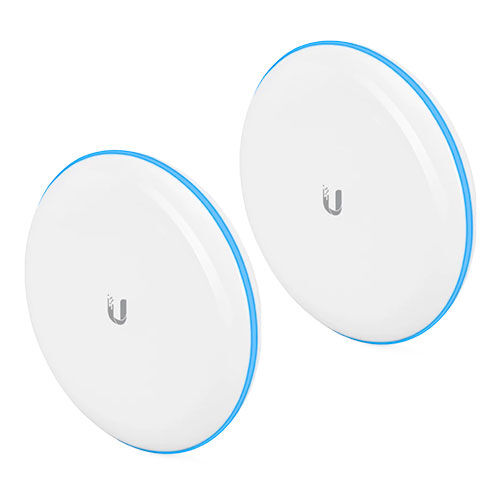

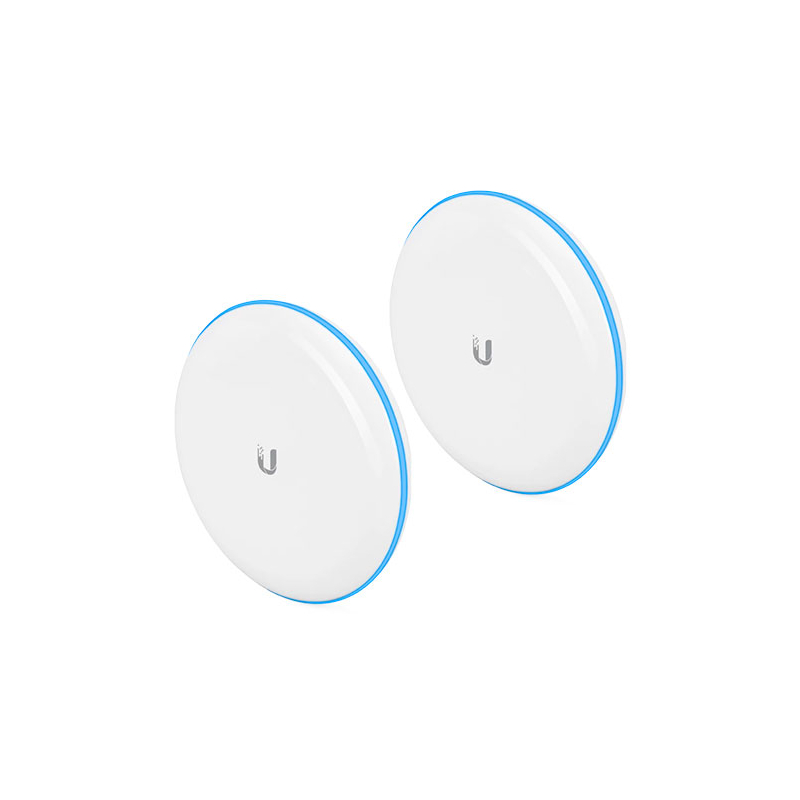

Ubiquiti UBB-XG Unifi Building to Building Bridge 10G (Pair)

Unifi 60 GHz wireless bridge with a 10 Gbps SFP+ interface

Features:

• 5 GHz backup radio

• Operational range of up to 500 meters

• 6 Gbps throughput rate

• Additional GbE RJ45 port with PoE++

• Integrated outer diameter alignment LED for easy setup

• Adopt the UBB-XG in Minutes with Your UniFi Network Application and:

• Centrally manage multiple networks from an intuitive interface

• Enjoy real-time device insights and deep configuration options

• Upgrade device firmware remotely

• Manage network users and guests with ease

• Personalize the design, architecture, and privacy of guest hotspots

• Set up devices quickly and manage them on the go with a powerful mobile app

Mechanical

• Dimensions Ø191.77 x 58.95 mm

• Weight Without mount: 1.7 kg

• With mount: 2.85 kg

• Enclosure materials Aluminum alloy, UV-resistant polycarbonate

• Mount material Stainless steel

• Mounting 60G precision alignment pole mount (included)

• Pole compatibility: Ø25.4-63.5 mm

• Weatherproong IPX6

•

Hardware

• Management interface Ethernet

• Bluetooth

• Networking interface (1) GbE RJ45 port

• (1) 1/10G SFP+ port

• Button Factory-reset

• LED R/G/B

• Power method PoE++

• Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)]

• Power supply UniFi PoE switch

• 48V, 0.65A Gigabit PoE adapter (included)

• Supported voltage range 48VDC ± 10%

• Max. power consumption 31.2W

• Throughput rate 5 GHz 866.6 Mbps

• 60 GHz 6 Gbps

• Maximum range 500+ m (1,640+ ft)

• Operating temperature -40 to 55° C (-40 to 131° F)

• Operating humidity 5 - 95% noncondensing
