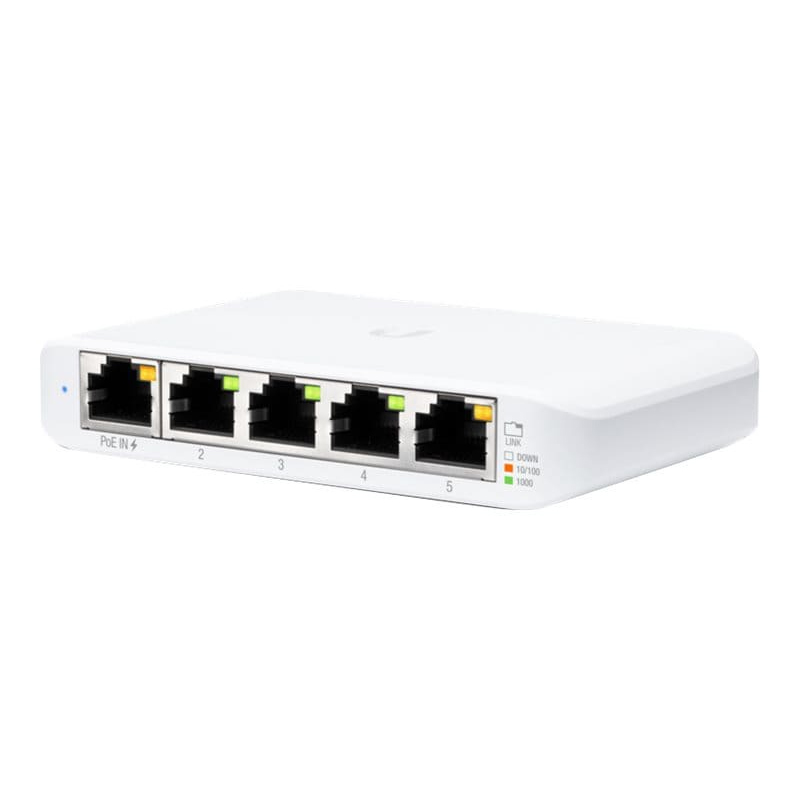

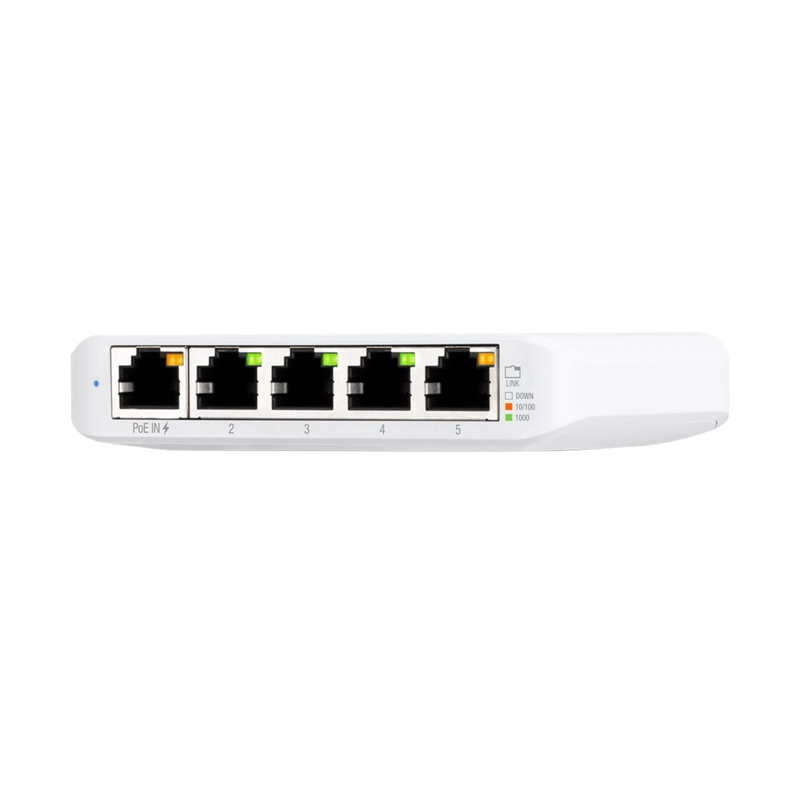

About Ubiquiti UniFi Switch USW Flex Mini - switch - 5 ports - smart

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

  • (4) GbE ports
  • (1) GbE PoE input port for power

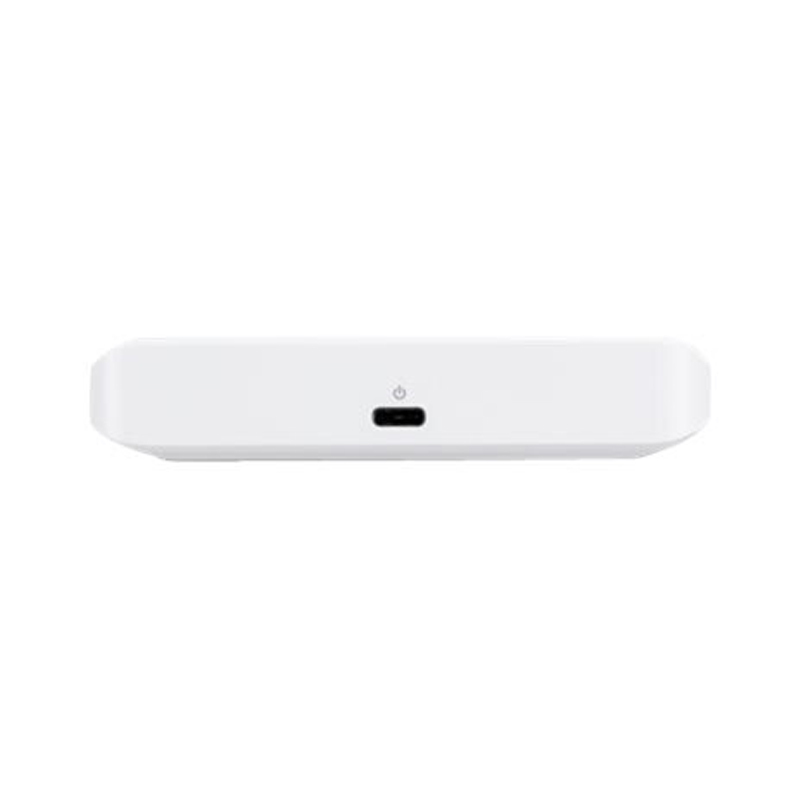

  • Optional powering with included 5V, 1A USB-C adapter*

*Adapter included with single unit purchases

Mechanical
Dimensions: 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight: 150 g (5.3 oz)
Enclosure Material: Polycarbonate

Hardware
Management Interface: Ethernet In-Band
Networking Interface: 5 x GbE RJ45 ports
Total Non-Blocking Throughput: 5 Gbps
Switching Capacity: 10 Gbps
Forwarding Rate: 7.44 Mpps
Power Method: USB Type C (5V) and PoE/PoE+ (44—57V DC)
Max Power Consumption: 2.5W
Operating Temperature: -5 to 45°C (23 to 113°F)
Operating Humidity: 10 to 90% non-condensing
Certifications: CE, FCC, IC

Switching Features
Layer 2 Features: Port isolation, storm control, port mirroring, multicast/broadcast rate limiting, flow control, jumbo frames, egress rate limit.

LEDs
System: Status
Ethernet: Speed/link/activity

Application Requirements
UniFi Network Version: 5.12.5 and later


SKU USW-FLEX-MINI-3
Brand Ubiquiti
Shipping Weight 0.3000kg
Shipping Width 0.120m
Shipping Height 0.090m
Shipping Length 0.080m

1 Year Warranty
