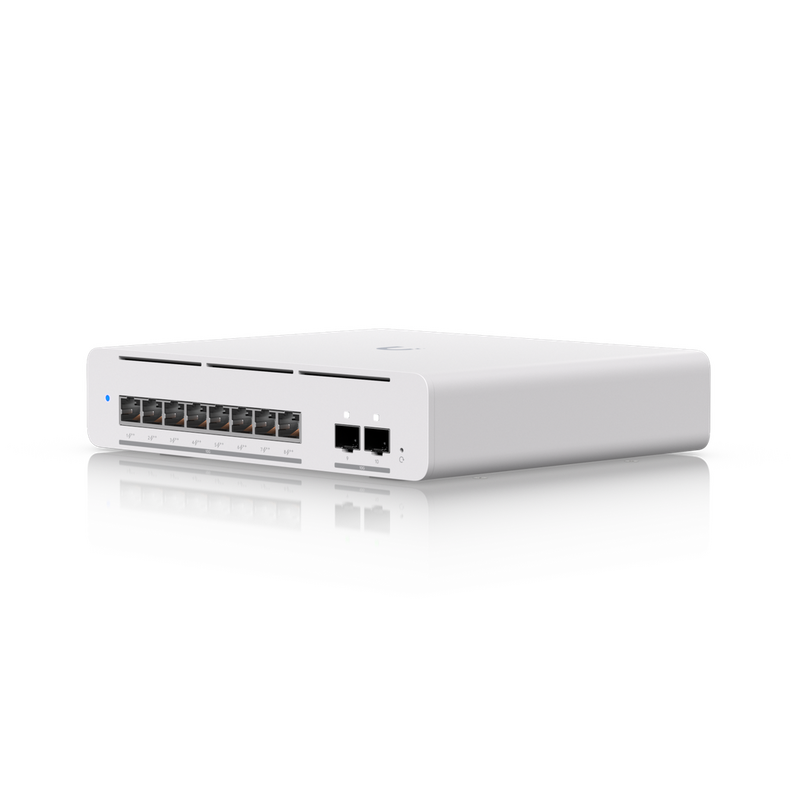

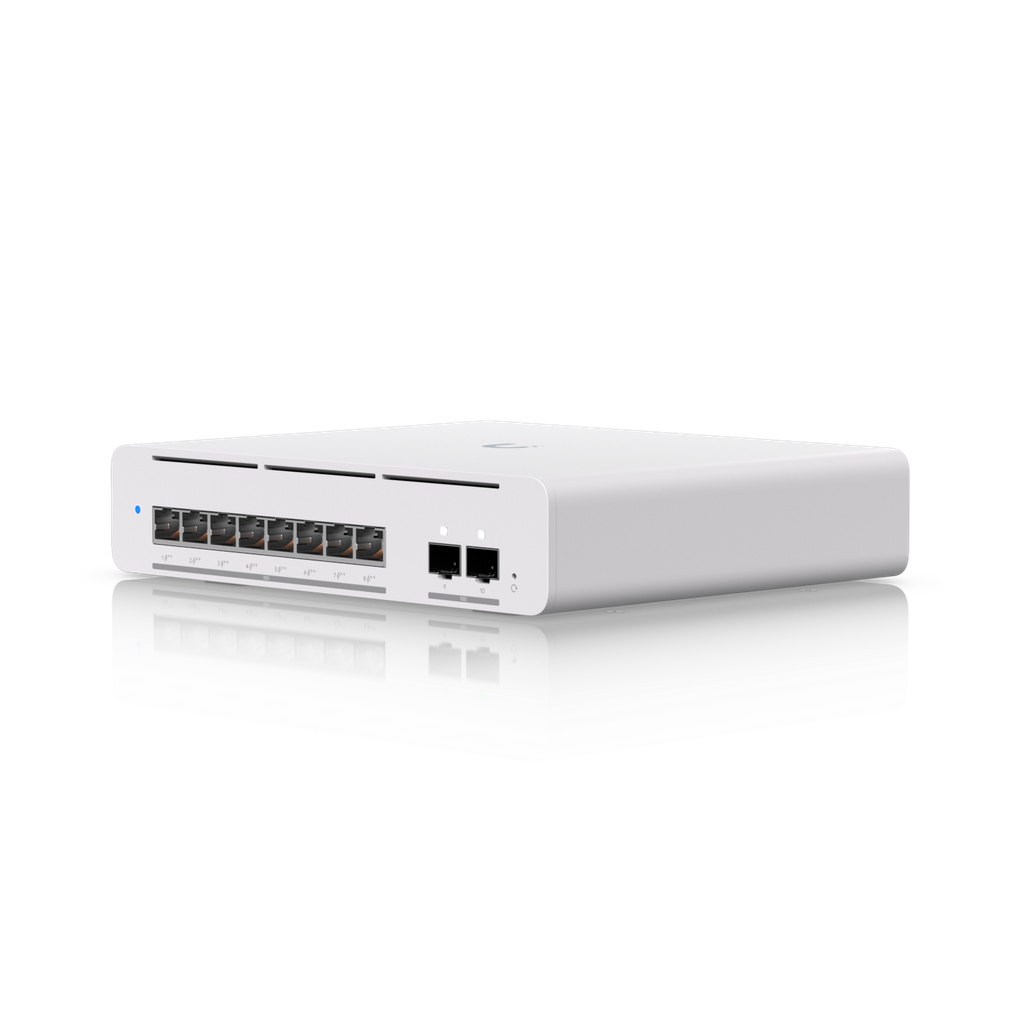

About Ubiquiti USW-Pro-XG-8-PoE UniFi Professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE (2) 10G SFP+ ports.

Ubiquiti USW-Pro-XG-8-PoE UniFi Professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE (2) 10G SFP+ ports.

Product Code: USW-Pro-XG-8-PoE

Unifi Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(8) 10 GbE PoE++ ports

(2) 10G SFP+ ports

155W total PoE availability

Versatile desktop and wall, mounting

Technical Specifications

Overview

Dimensions

210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")

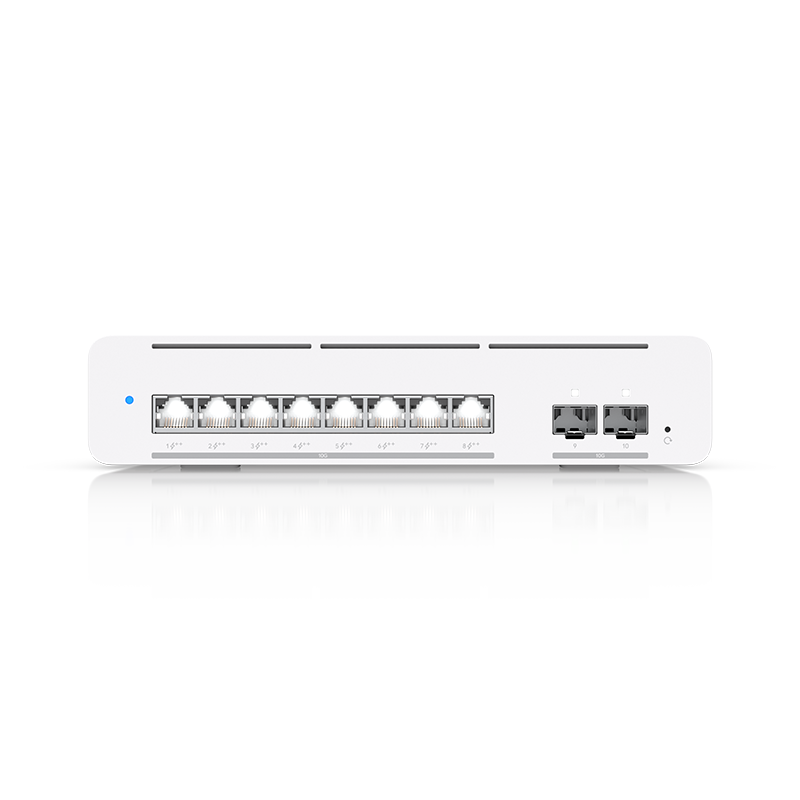

Port Layout

10 GbE RJ45

8 (All PoE++) (10G/5G/2.5G/1G/100M)

10G SFP+

2 (10G/1G)

Max. PoE Output

Up to PoE++

Total PoE Availability

155W

Layer 3

Yes

Form Factor

Compact desktop, wall

Etherlighting™

Yes

Performance

Switching Capacity

200 Gbps

Total Non-Blocking Throughput

100 Gbps

Forwarding Rate

149 Mpps

Supported VLANs

1,000

MAC Address Table Size

32,000

L3 Table Size

ARP Entries

12,000

IPv4 Routes

12,000

Packet Buffer Size

2 MB

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

STP & RSTP

Yes

QoS (DSCP)

Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

Yes

IGMP Snooping

Yes

802.1X Control

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

MAC Address Blocking

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

PoE Ports

PoE++

8

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

30W

PoE++

60W

Max. Power Consumption

61W (Excluding PoE output) 220W (Including PoE output)

Power Method

AC/DC Adapter (included)

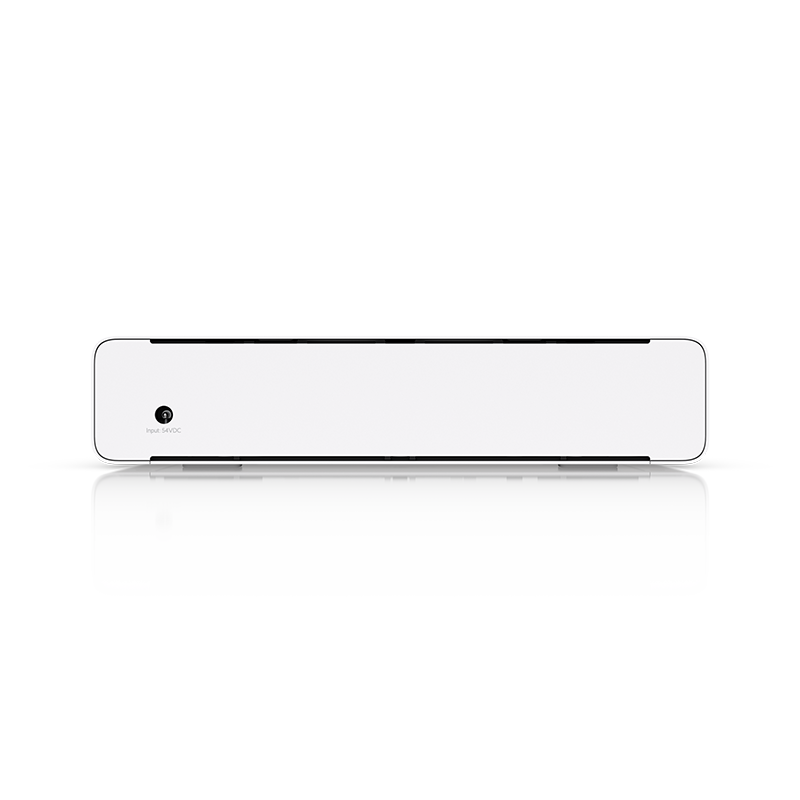

Power Input Method

DC input

Power Supply

AC/DC, external, 210W

Management

Ethernet

Weight

1.6 kg (3.5 lb)

Enclosure Material

SGCC steel

Mount Material

Polycarbonate

ESD/EMP Protection

Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature

-5 to 45° C (23 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

Yes

SFP+

Yes

LEDs

System

Yes

Certifications

CE, FCC, IC

NDAA Compliant

Yes
