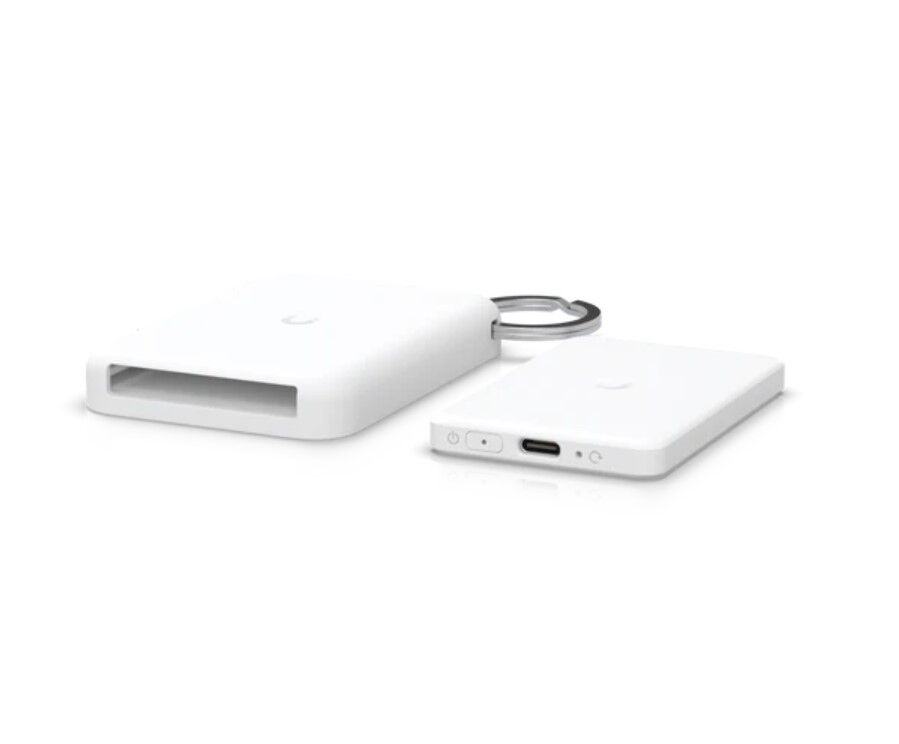

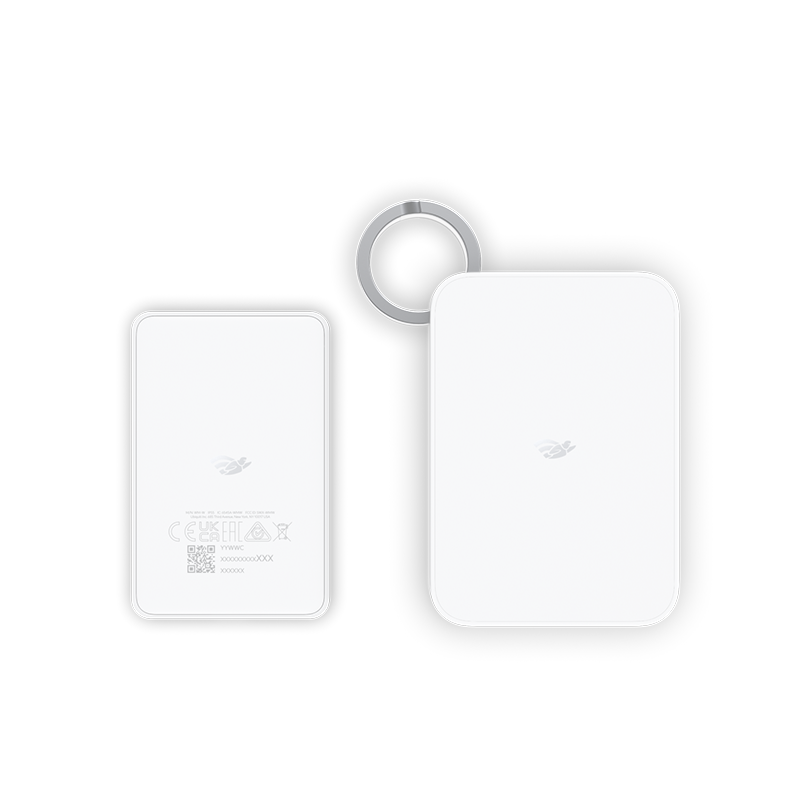

About Ubiquiti WM-W UniFi WiFiMan Wizard Portable Spectrum Analyzer

A portable spectrum analyzer designed for the Ubiquiti Unifi WiFiMan iOS and Android mobile app.

Unifi WiFiMan Features:

• 2.4 GHz and 5 GHz unlicensed band scanning

• 240 minutes continuous scanning battery life

• BLE smartphone pairing with USB-C charging port

• iPhone Magsafe attachable support*

Works with the Ubiquiti Unifi WiFiman mobile app: Version 0.18.0 for iOS and 1.15.0 for Android and later

*A mag-safe case is required to attach this device to an iPhone

Mechanical

• Dimensions 78.5 x 50.5 x 7.9 mm

• Weight 32 g (1.1 oz)

• Enclosure material Plastic

• Weatherproong IP55

Hardware

• Managementinterface Bluetooth

• Power method Li-ion battery

• Power supply Rechargeable Li-ion battery, 3.7V DC, 300mAh

• Max. power consumption 32.4mW

• Charger voltage USB-C, 5V DC/1A

• LED White/blue/red

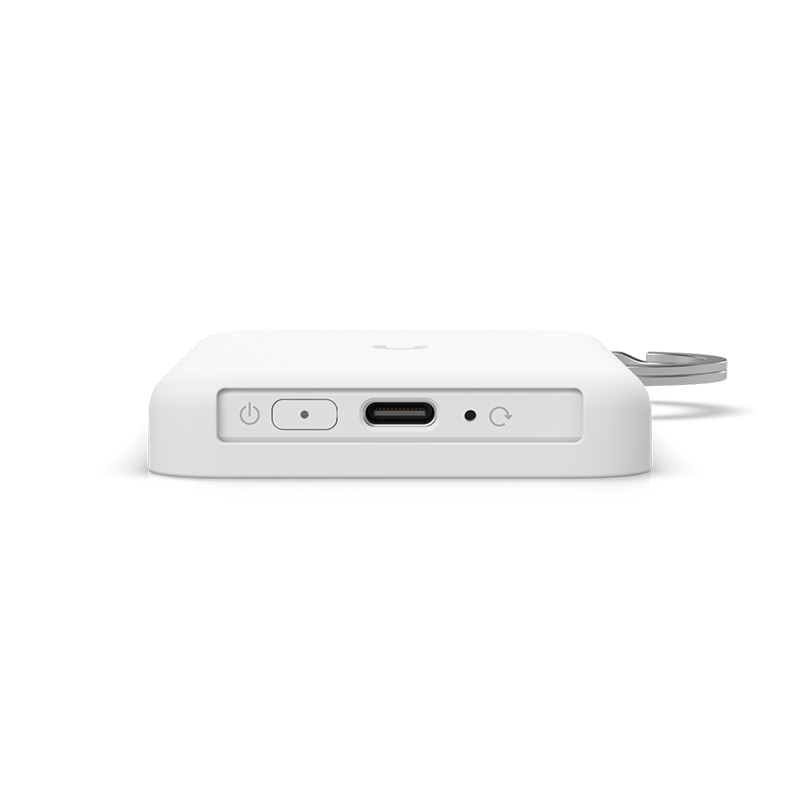

• Buttons (1) Power

• (1) Factory-reset

• Operating temperature 0 to 40° C

• Operating humidity 10 to 90% noncondensing

• Certications CE, FCC, IC

SSID Scan

• Frequency range 2.4 to 2.5 GHz

• 5.15 to 5.85 GHz

• Amplitude range -96 dBm to 0 dBm

• Amplitude resolution 1 dBm
