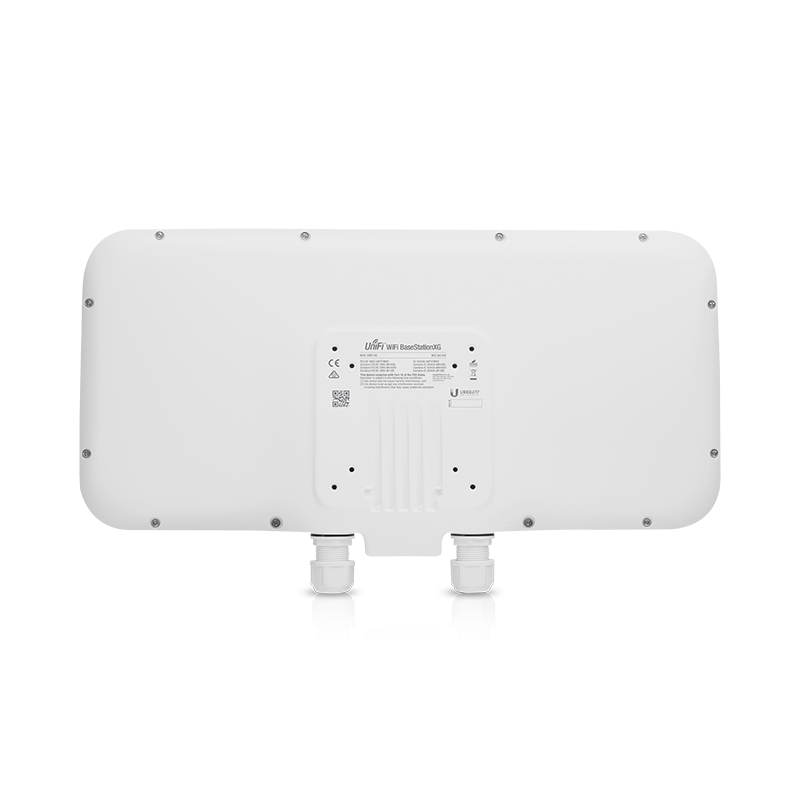

About Ubiquiti1500 Client Capacity, 10 Gbps, Beam-Forming IP67 Wi-Fi BaseStation

Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.

  • WiFi 5 (5 GHz only)
  • 12 spatial streams
  • 465+ m² (5,000+ ft²) open space coverage
  • 1,500+ connected devices
  • Powered using PoE++
  • (1) GbE and (1) 10 GbE uplink
  • Versatile wall and pole mounting
  • Phased array antenna system with software-adjustable coverage (50° or 90°)
  • Weatherproof (outdoor exposed)
Mechanical
Dimensions: 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7 inches)
Weight: 3.2 kg (7.1 lb)
Weatherproofing: IP67 rated

Hardware
Networking Interfaces: 1 GbE RJ45 port, 1/10 GbE ICM Ethernet port
Management Interfaces: Ethernet, Bluetooth
Power Method: PoE++ with a Gigabit PoE++ adapter (50V DC, 1.2A included)
Max Power Consumption: 31W
Voltage Range: 44—57V DC
Max TX Power: 5 GHz - 25 dBm
MIMO: 5 GHz - 4 x 4 (DL MU-MIMO)
Max Data Rate: 5 GHz - 1.7 Gbps (BW80)
Antenna: Integrated dual-mode array
Operating Temperature: -40 to 70°C (-40 to 158°F)
Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC

Software
WiFi Standards: 802.11 a/b/g/n/ac
Wireless Security: Supports WEP, WPA-PSK, WPA-Enterprise, and more
Advanced Features: VLAN, QoS, guest traffic isolation, beamforming
Concurrent Clients: Up to 1500+



SKU UWB-XG
MPN UWB-XG
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
