Buy Ubiquiti UDR-5G-Max (UDR-5G-Max)

About UDR-5G-Max

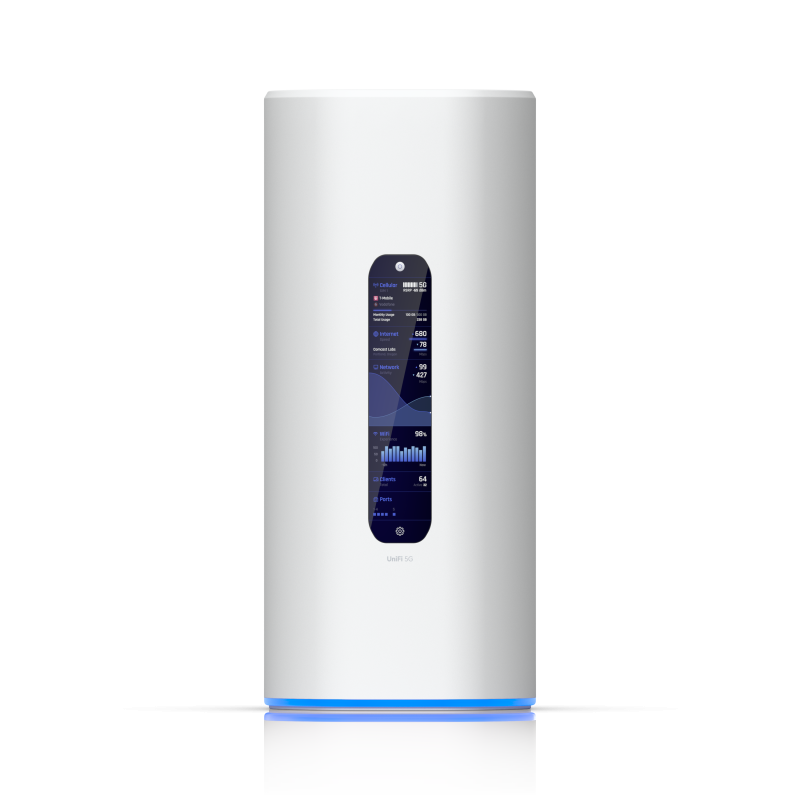

The Ubiquiti UniFi Dream Router 5G Max is an all-in-one desktop cloud gateway that brings WiFi 7, a built-in 5G modem, and the full UniFi app suite together in one tidy tower. It delivers up to 3.4 Gbps on Sub-6 5G, tri-band WiFi 7, dual Nano-SIM with eSIM support, and a 10G SFP+ WAN port. For homes and small offices, it's a top-notch choice when you need fast WiFi, solid security, and a backup connection that kicks in when the fixed line drops out.

Key Features

Built-In 5G Modem — Sub-6 5G gives you up to 3.4 Gbps down and 560 Mbps up, so you can run your whole site on mobile data or keep it ready as failover.
Dual SIM and eSIM — Two Nano-SIM slots plus eSIM support let you run two carrier plans and switch between them if one network has a bad day.
Tri-Band WiFi 7 — Up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz, with Multi-Link Operation and 4096-QAM for faster speeds and lower latency in busy spaces.
Multi-Gig Ports — A 10G SFP+ WAN port, a 2.5 GbE RJ45 WAN port, and three 2.5 GbE LAN ports including one PoE port for powering compatible gear.
Full UniFi Suite — Runs the complete UniFi application suite with support for 30+ managed UniFi devices and 300+ connected users, covering network, cameras, door access, and phones from one console.
Serious Security — Stateful and Layer 7 firewalls, deep packet inspection, content filtering, ad blocking, and intrusion prevention with 2.3 Gbps IDS/IPS throughput keep nasties off your network.
Touchscreen and Storage — A 4.7" touchscreen and a pre-installed 64 GB microSD card for NVR recording mean you can check status at a glance and store camera footage locally.

Why Choose This Product?

Our Telrexperts rate the Dream Router 5G Max for small offices and homes that can't afford downtime. You get multi-WAN with automatic failover across fibre, copper, and 5G, all managed through one friendly interface. It covers around 160 m², so most spaces are sorted. Need a hand setting it up? Give our team a call.

What's in the Box

UniFi Dream Router 5G Max
Power Adapter and Cable
Ethernet Patch Cable
SIM Eject Tool
Pre-Installed 64 GB microSD Card
Quick Start Guide

Spec	Value
Brand	Ubiquiti
Model / SKU	UDR-5G-Max (UniFi Dream Router 5G Max)
Product Type	Desktop Cloud Gateway with 5G, WiFi 7, 10G SFP+ and 4-port 2.5 GbE switch with (1) PoE port
Form Factor	Desktop
Dimensions	110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
Weight	1.4 kg (3.1 lb)
Enclosure Material	Polycarbonate
Processor	Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory	3 GB
Onboard Storage	Internal flash plus pre-installed 64 GB microSD for NVR
Expansion Slot	microSD card slot
Display	4.7" touchscreen
Buttons	Factory reset
WiFi Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
WiFi Bands	Tri-band: 2.4 GHz, 5 GHz, 6 GHz
WiFi Throughput – 6 GHz	5.7 Gbps
WiFi Throughput – 5 GHz	4.3 Gbps
WiFi Throughput – 2.4 GHz	688 Mbps
MIMO	2 x 2 (DL/UL MU-MIMO)
WiFi Features	Multi-Link Operation (MLO), 4096-QAM, 6-stream design
WiFi Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Antenna Type	Internal
WiFi Antenna Gain	6 GHz: 8 dBi; 5 GHz: 5 dBi; 2.4 GHz: 4 dBi
Max Transmit Power (WiFi)	23 dBm
Coverage Area	160 m² (1,750 ft²)
Cellular Modem	Integrated 5G Sub-6 GHz modem
5G NSA Performance	3.4 Gbps downlink, 560 Mbps uplink
5G SA Performance	1.8 Gbps downlink, 650 Mbps uplink
LTE Performance	1.6 Gbps downlink, 210 Mbps uplink
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
3G Bands	B1, B2, B4, B5, B8, B19
Cellular Max TX Power	HPUE power class 2: 25 dBm
Cellular Antenna Gain	617–960 MHz: 3 dBi; 1710–2700 MHz: 7 dBi; 3300–5000 MHz: 8 dBi; 5150–5925 MHz: 8 dBi
SIM Support	2x Nano SIM slots supporting two Nano SIMs or one Nano SIM and one eSIM
Carrier Certification	AT&T and T-Mobile (Verizon coming soon)
Total Network Ports	5
Default WAN Ports	(1) 10G SFP+, (1) 2.5 GbE RJ45
Max WAN Port Count	4
LAN Ports	(3) 2.5 GbE RJ45 LAN ports, including (1) PoE port
Port Speeds	2.5 GbE RJ45: 2.5G/1G/100M; 10G SFP+: 10G/1G
PoE Standard	802.3af PoE output
PoE Output / Budget	15.4W
IDS/IPS Throughput	2.3 Gbps
IDS/IPS Signatures	20,000+ with CyberSecure
Security Features	Stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based firewall advanced filtering, content filtering, IPS/IDS, ad blocking
VPN Support	WireGuard, OpenVPN, IPsec, Teleport Zero-Configuration VPN
Managed UniFi Devices	30+
Managed Cameras	(5) HD, (2) 2K, (1) 4K
Simultaneous Users	300+
UniFi Application Support	Network, Protect, Access, Talk, Connect
Management Interfaces	Ethernet, Bluetooth
Mobile App Compatibility	UniFi iOS 10.33.0 and later; UniFi Android 10.36.1 and later
Power Input	DC jack, 54V DC/1.1A (adapter included); 100–240V AC
PoE Input Voltage Range	44–57V
Max Power Consumption	34.5W (excluding PoE output)
Thermal Dissipation	115 BTU/hr (excluding PoE output)
Cooling	Internal fan
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	5 to 95% noncondensing
Additional Features	Supports wireless meshing with other UniFi access points
In the Box	Dream Router 5G Max, 54V DC/1.1A power adapter, pre-installed 64 GB microSD card
