About USW-Flex-2.5G-8-PoE Switch

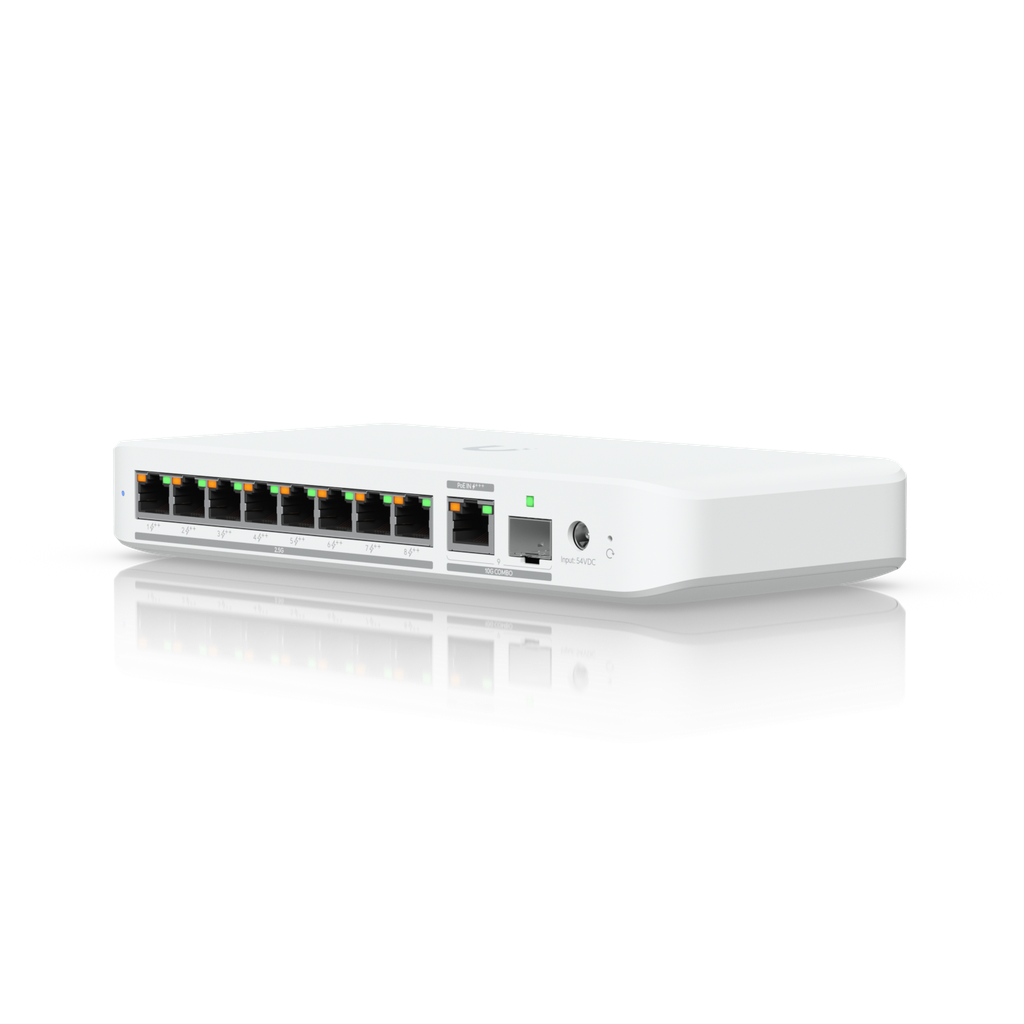

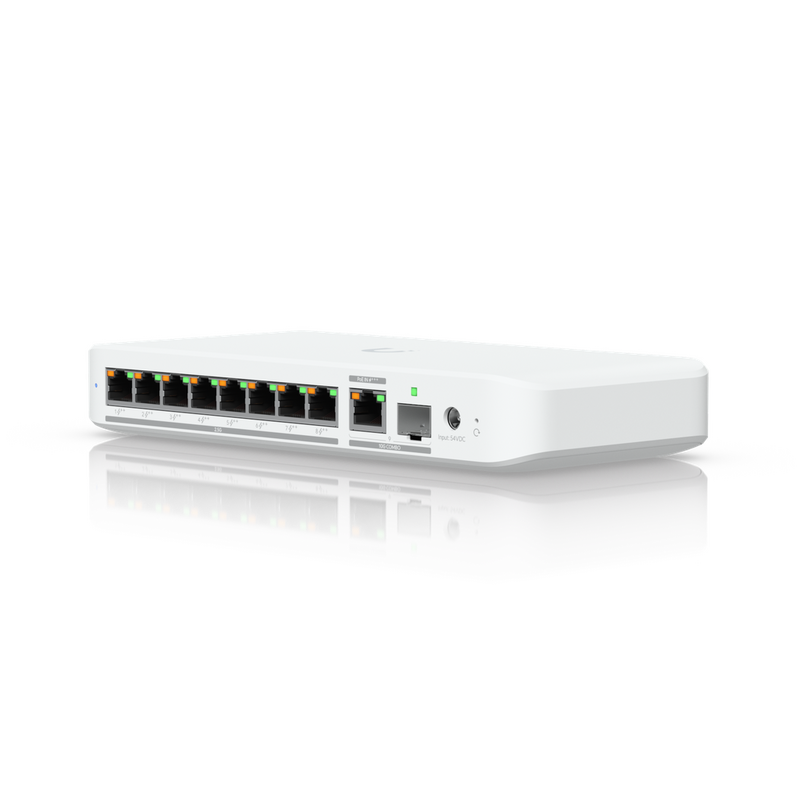

Ubiquiti USW-Flex-2.5G-8-POE UniFi Compact 8 Port Gigabit Desktop Switch POE

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.

(8) 2.5 GbE PoE++ output ports

(1) 10 GbE PoE+++ input port for power / SFP+ port combo
— 57W PoE availability with PoE+++ input
— 37W PoE availability with PoE++ input
— 12W PoE availability with PoE+ input

196W PoE availability with optional AC power adapter*

Mechanical
Dimensions 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")
Weight 567 g (20 oz)
Enclosure material Polycarbonate
Mounting Wall-mountable (kit included)
DIN rail-mountable (sold separately)
Hardware
Management interface Ethernet In-Band
Networking interface (8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE combination port*
While only one is active, GbE can receive power and SFP+ can be utilized for data.
PoE interface (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 30 Gbps
Switching capacity 60 Gbps
Forwarding rate 44.64 Mpps
Power method (1) AC power adapter, 54V DC, 3.9A (Not included)
(1) PoE+++ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)
Power supply External AC/DC adapter
UniFi PoE switch
Supported voltage range AC/DC input: 54V DC (DC jack)
PoE input: 50—57V DC
Max. power consumption PoE input: 14W (Excluding PoE output)
AC input: 17W (Excluding PoE output)
Total available PoE PoE+++ input: 57W
PoE++ input: 37W
PoE+ input: 12W
210W AC adapter input: 196W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+/PoE++: 50—57V
Button Factory reset
Ambient operating temperature -20 to 45° C (-4 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features STP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring
LEDs
System Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted
Ethernet Link/activity
PoE input/output
SFP+ Link/activity
SKU USW-Flex-2.5G-8-PoE
MPN USW-FLEX-2.5G-8-POE
Brand Ubiquiti
Shipping Weight 1.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.190m
Shipping Cubic 0.005700000m3
Unit Of Measure ea
