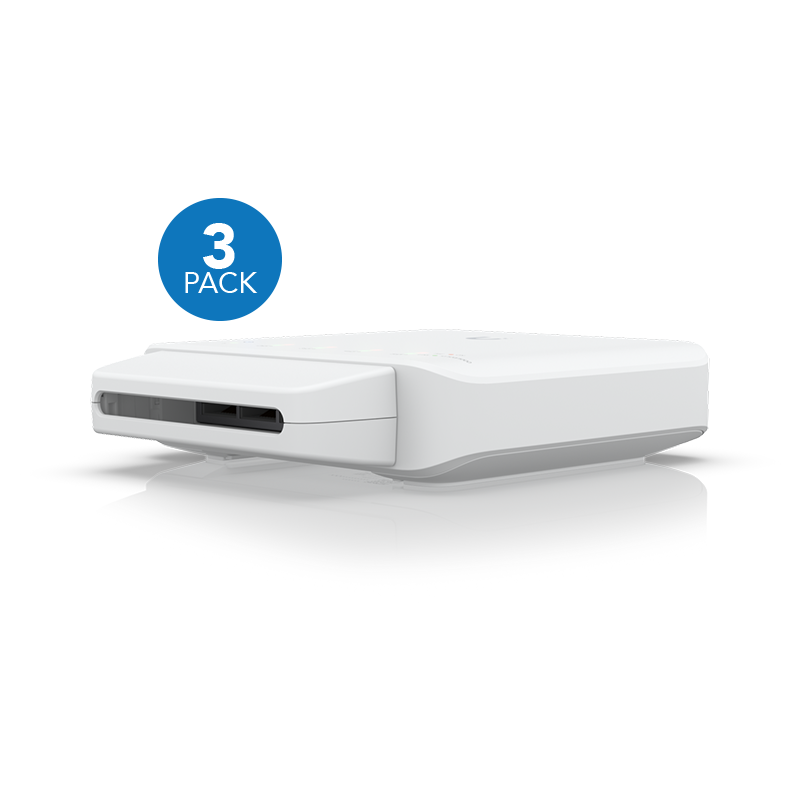

About USW-FLEX-3 pack

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

  • (4) GbE PoE+ ports
  • (1) GbE PoE++ input port for power
            46W PoE availability* PoE++ input
            20W PoE availability PoE+ input
            8W PoE availability PoE input
  • Indoor/Outdoor
Mechanical
Dimensions: 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight: 230 g (8.1 oz)

Hardware
Management Interface: Ethernet In-Band
Networking Interfaces: 5 GbE RJ45 ports
PoE Interfaces: 4 PoE+ ports
Throughput: 5 Gbps (non-blocking), 10 Gbps (switching capacity)
Power Method: PoE++
Power Supply: Supports PoE/PoE+ and PoE++ with a 50V/60W adapter (not included)
Max Power Consumption: 5W (excluding PoE output)
Total Available PoE: 46W (with PoE++ switch or 60W adapter)
Max PoE per Port: 25W
Operating Temperature: -40 to 55°C (for 46W output), -40 to 65°C (for 25W output)
Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC

Switching Features
Layer 2: Port isolation, mirroring, multicast/broadcast rate limiting, flow control, jumbo frames, egress rate limit
Layer 3: Not specified

Application Requirements
UniFi Network: Version 5.10.3 and later



SKU USW-FLEX-3
MPN USW-FLEX-3
Brand Ubiquiti
Shipping Weight 1.1000kg
Shipping Width 0.150m
Shipping Height 0.170m
Shipping Length 0.160m
Unit Of Measure ea

1 Year Warranty
