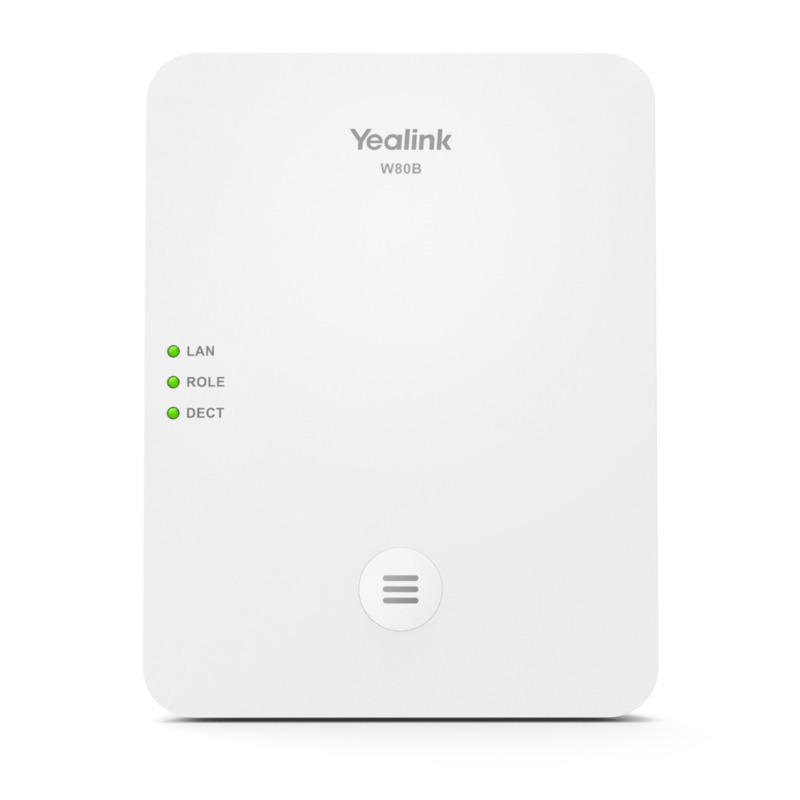

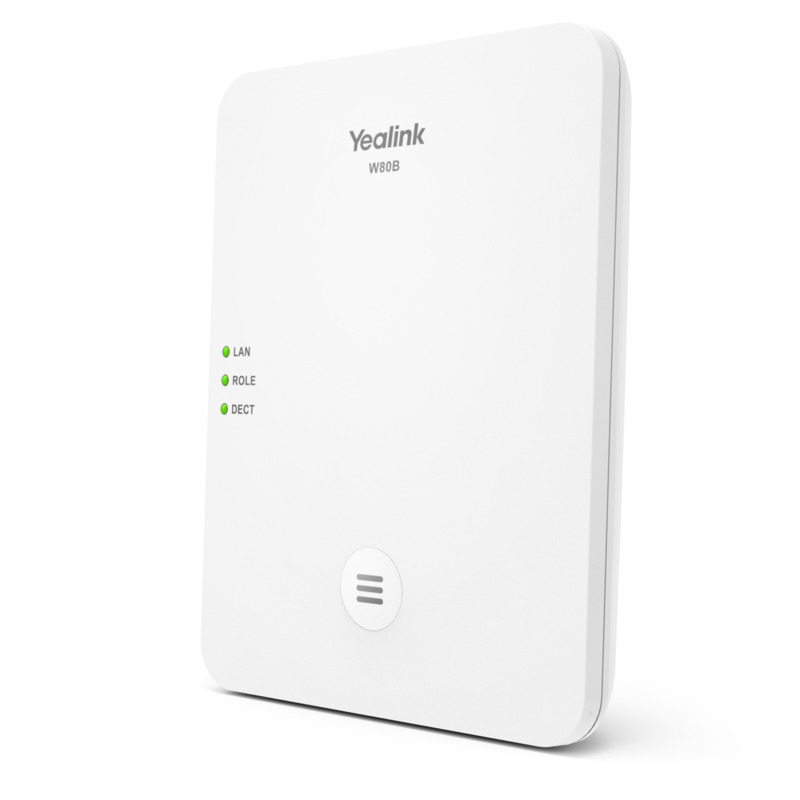

About YEALINK (W80DM) MULTI CELL DECT MANAGER

The Yealink W80 DECT IP Multi-Cell System, consisting of two elements - a base station W80B and a DECT Manager W80DM, is designed to provide the organizations who require wireless coverage with the full ease of deployment. This DECT multi-cell system intends to create an extremely scalable and reliable solution for organizations of any size and shape. The system supports up to 100 handsets and 100 simultaneous calls, ensuring one call in each handset and allowing you to get rid of the limited wireless coverage of only one base station. Meanwhile, the system can work with Yealink W53H, W56H, W57R, W59R, W73H, W78H, WH62, WH63, CP930W, CP935W and DD Phone with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Both W80B and W80DM join the modern, compact design with Yealink HD voice quality, which is wrapped with the full-duplex technology, that setting free your ears and giving you an elaborate audio experience.

About Yealink

Are you looking for reliable and affordable communication solutions for your business? Telrex is an authorized reseller of Yealink products, providing a wide range of phones and devices.

Yealink is a leading global provider of enterprise communication and collaboration solutions, with a wide range of products designed for all kinds of businesses. From IP phones and video conferencing systems to wireless solutions and audio conferencing products, Yealink has a product to fit every business need. At Telrex, we are committed to providing our customers with the best solutions for their business needs. Our experienced team can help you find the perfect product to meet your communication requirements.

Choose Telrex as your trusted reseller, and get the most out of your communication technology. Contact us today to discuss your business communication needs.

Phone Features:

  • Sync over the air (Seamless handover and roaming)
  • Up to 100 simultaneous calls
  • Up to 30 base stations
  • Up to 8 WB (4 active handsets) calls per base
  • Up to 8 NB calls per base
  • Up to 100 handsets
  • Up to 100 VoIP accounts
  • Up to 2 simultaneous calls per handset
  • Call hold, call transfer, 3-way conference
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call, Anonymous call rejection
  • Call forward (always/busy/no answer)
  • Speed dial, voicemail, redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 100 entries per handset
  • Remote phonebook/LDAP/XML phonebook
  • Phonebook search/import/export
  • Call history (all/missed/placed/received)
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • Broadsoft directory, BroadSoft call log
  • Broadworks feature key synchronization
  • Shared Call Appearance (SCA)
  • XML browser
  • IPUI registration
  • User access level

Management:

  • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
  • Auto-provision with PnP
  • Handset upgrade: OTA (Over-The-Air)
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export

Audio Features:

  • Full-duplex speakerphone
  • Hearing Aid Compatibility (HAC) compliant
  • DTMF
  • Wideband codec: AMR-WB (optional), G.722
  • Narrowband codec: AMR-NB (optional), PCMU(G.711µ), PCMA(G.711A), G.726, G.729, G.729A, iLBC
  • VAD, CNG, AGC, PLC, AJB

Network Features:

  • SIP v1 (RFC2543), v2 (RFC3261)
  • SNTP/NTP
  • VLAN (802.1Q and 802.1P)
  • 802.1x, LLDP
  • STUN Client (NAT Traversal)
  • UDP/TCP/TLS
  • IP assignment: static/DHCP
  • Support outbound proxy server backup

Security:

  • Open VPN
  • Transport Layer Security (TLS1.0/TLS1.2)
  • HTTPS (server/client), SRTP
  • Digest authentication
  • Secure configuration file via AES encryption
  • Support SHA256/SHA512/SHA384

DECT:

  • Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US), 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)

Interface:

  • 1 x RJ45 10/100M Ethernet port
  • Power over Ethernet (IEEE 802.3af), Class 1

Physical Features:

  • Indoor Range: 20 m-50 m (ideal distance is 50 m)
  • Outdoor Range: 300 m (in ideal conditions)
  • Wall mountable
  • Three LED indicators on W80DM/W80B: DECT LED, Role LED, LAN (Power Indicator & Network Status) LED
  • External Yealink AC adapter: AC 100-240V Input and DC 5V/1.2A Output
  • Color: Pearl White
  • Dimension: 130 mm x 100 mm x 25.1 mm
  • Operating humidity: 10-95%
  • Operating temperature: -10°C to +50°C (+14-122°F)
  • Storage temperature: -30 to +70°C (-22 to +158 °F)



SKU W80DM
MPN W80DM
Brand Yealink
Shipping Weight 0.6600kg
Shipping Width 0.180m
Shipping Height 0.070m
Shipping Length 0.190m
Shipping Cubic 0.002394000m3

1 Year Warranty
