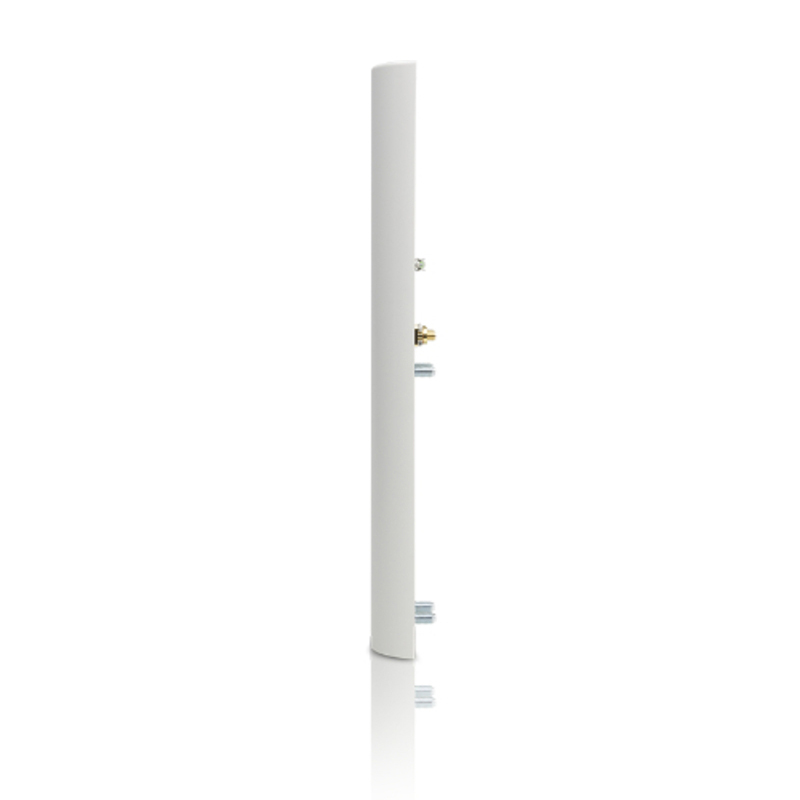

About 4.9-5.9GHz AirMax Base Station 20dBi, 90 deg w/ rocket kit

5 GHz, 120º, 19 dBi or 90º, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

  • 2x2 dual-polarity performance
  • Robust mechanical design for outdoor application use
  • Compatible with Rocket Prism 5AC

Dimensions : 700 x 135 x 70 mm (27.6 x 5.3 x 2.8")
Weight : 5.9 kg (13 lb)
Frequency Range : 5.15 - 5.85 GHz
Gain : 19.4 - 20.3 dBi
HPOL Beamwidth : 91° (6 dB)
VPOL Beamwidth : 85° (6 dB)
Electrical Beamwidth : 4°
Electrical Downtilt : 2°
Max. VSWR : 1.5:1
Wind Survivability : 200 km/h (125 mph)
Wind Loading : 115 N @ 160 km/h (26 lbf @ 100 mph)
Polarization : Dual-Linear
Cross-pol Isolation : 28 dB Min.
ETSI Specification : EN 302 326 DN2
Mounting : Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

SKU AM-5G20-90
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty

Need more information or assistance with this product?

Contact us on 1300 665 970 or complete an online enquiry and one of our staff members will get back to you as soon as possible.

SKU: AM-5G20-90
