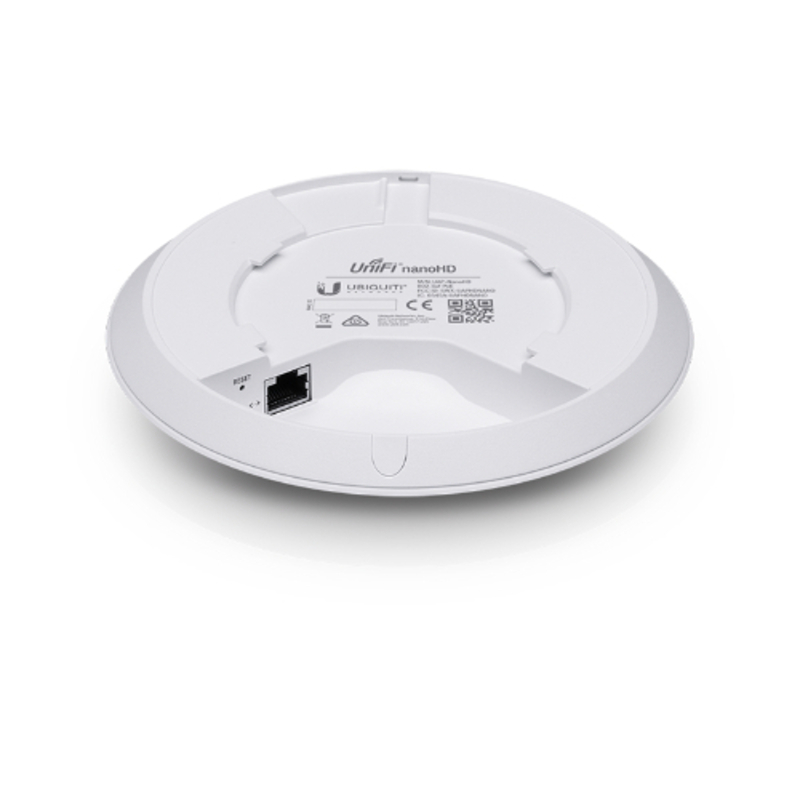

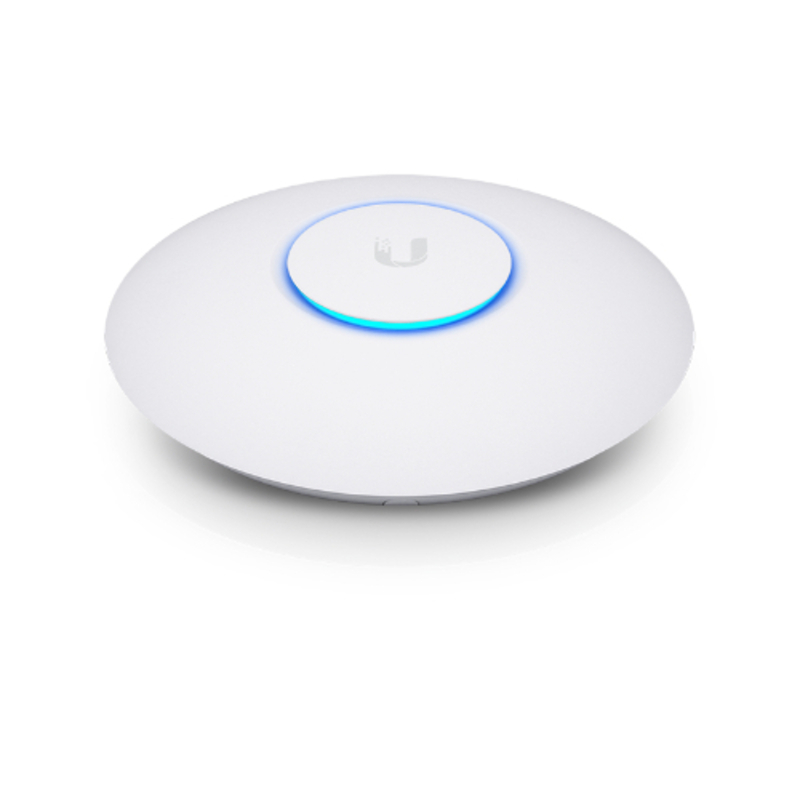

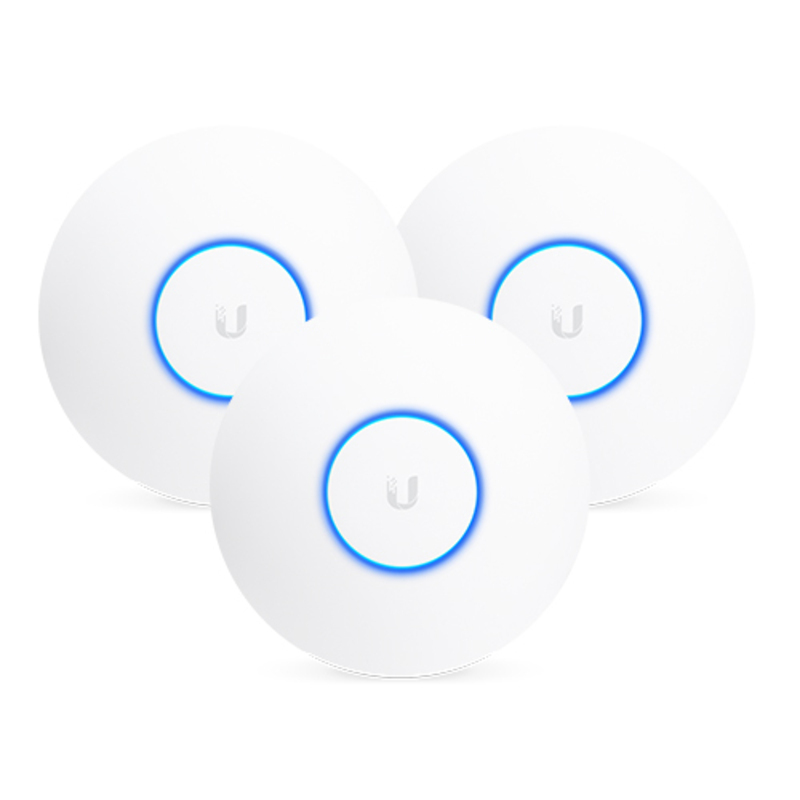

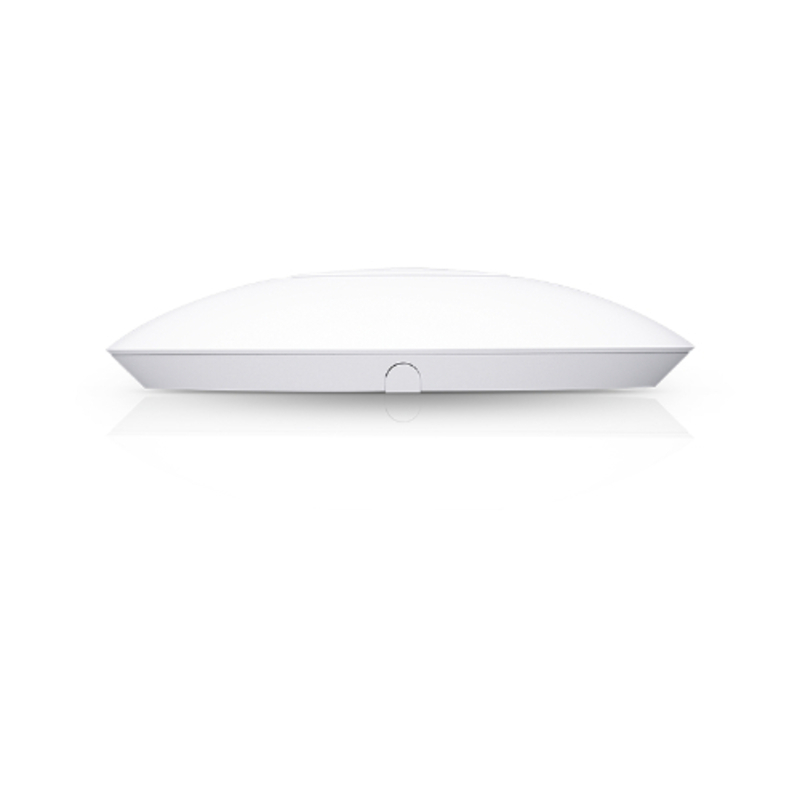

About 4x4 MU-MIMO Wave 2 802.11ac Enterprise Wi-Fi Access Point, 3-Pack (*PoE injector is not included)

Compact, ceiling-mounted WiFi 5 AP with 6 spatial streams ideal for smaller offices.

  • WiFi 5
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 200+ connected devices
  • Powered using PoE*
  • GbE uplink

*PoE power adapter included with single unit purchases.

Mechanical
Dimensions: Ø160 x 32.7 mm (Ø6.3 x 1.3")
Weight: Without mount: 300 g (10.6 oz)
With mount: 315 g (11.1 oz)

Hardware
Networking Interface: 1 GbE RJ45 port
Power Method: PoE (Power over Ethernet)
Power Supply: UniFi PoE Switch
Max Power Consumption: 10.5W
Voltage Range: 44—57V DC
Max TX Power:
2.4 GHz: 23 dBm
5 GHz: 26 dBm
MIMO:
2.4 GHz: 2 x 2
5 GHz: 4 x 4
Max Data Rate:
2.4 GHz: 300 Mbps
5 GHz: 1.7 Gbps
Antenna Gain:
2.4 GHz: 2.8 dBi
5 GHz: 3 dBi
Mounting: Wall/ceiling (included)
Operating Temperature: -10 to 70°C (14 to 158°F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC, cULus

Software
WiFi Standards: 802.11 a/b/g/n/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to 8 per radio
WMM: Supports voice, video, best effort, and background
Concurrent Clients: 200+



SKU UAP-NANOHD-3
MPN UAP-NANOHD-3
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
