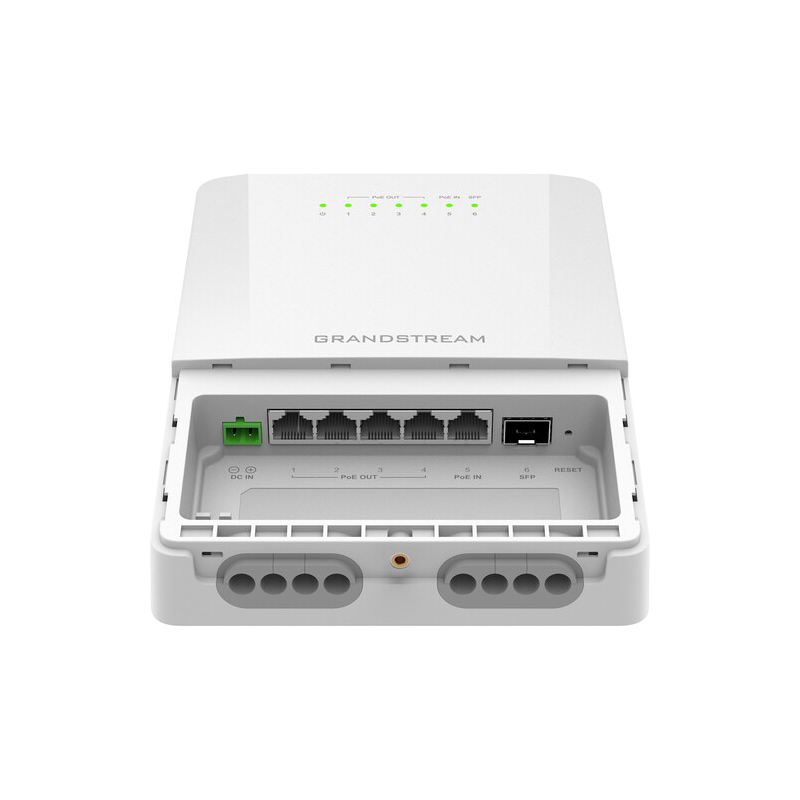

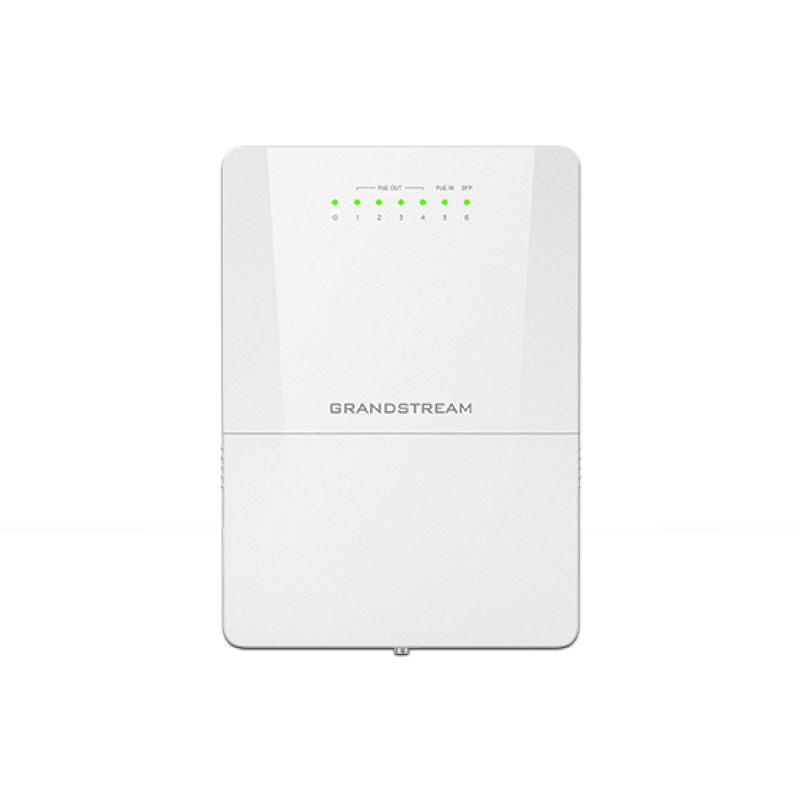

About Grandstream GWN7710R Waterproof Managed Switch 5 X POE 1 X SFP POE Output AC/DC Powered

The Grandstream GWN7710R is a 6-port outdoor L2 Lite managed PoE switch built for deployments where the weather doesn't play nice. With an IP66-rated waterproof and dustproof enclosure, an operating temperature range of -40°C to 60°C, and flexible AC or DC power input, it's a great pick for outdoor surveillance, wireless access point deployment, and IoT networks across campuses, car parks, industrial sites, and more. Five Gigabit RJ45 ports plus a 2.5G SFP uplink keep your outdoor network fast and connected.

Key Features

• IP66-Rated Outdoor Enclosure — Fully protected against dust and powerful water jets, with an operating range of -40°C to 60°C, so it keeps running no matter what the conditions throw at it.
• 5 x Gigabit PoE Ports — Four PoE output ports deliver up to 60W on Port 1 and up to 30W on Ports 2—4, supporting IEEE 802.3af/at as well as 24V and 48V DC passive PoE output. One Gigabit port accepts PoE++ input to power the switch itself from an upstream device.
• 2.5G SFP Uplink — The fibre SFP port extends your network over long distances, making it well suited to large sites where copper cable won't cut it.
• AC & DC Power Input — Supports both AC mains and DC input, including solar-powered setups and cascaded PoE power supply, giving you real flexibility in how you deploy it.
• PoE Watchdog — Automatically detects and restarts unresponsive PoE-powered devices like cameras and access points, keeping your network up without manual intervention.
• Flexible Management — Manage via local web UI, on-premises GWN Manager, or Grandstream's GDMS cloud platform, with VLAN, QoS, STP/RSTP, storm control, and DHCP Snooping all included.

Why Choose This Product?

If you need a managed PoE switch that can live outdoors permanently and keep your network running reliably, the GWN7710R is a top-notch choice. It's tough, well-featured, and easy to manage remotely. Our Telrexperts can help you plan the right deployment for your site and make sure everything is configured correctly from day one.

What's in the Box

• Grandstream GWN7710R Outdoor Managed PoE Switch
• Mounting Hardware (Pole, Wall & DIN-Rail)
• Quick Installation Guide
