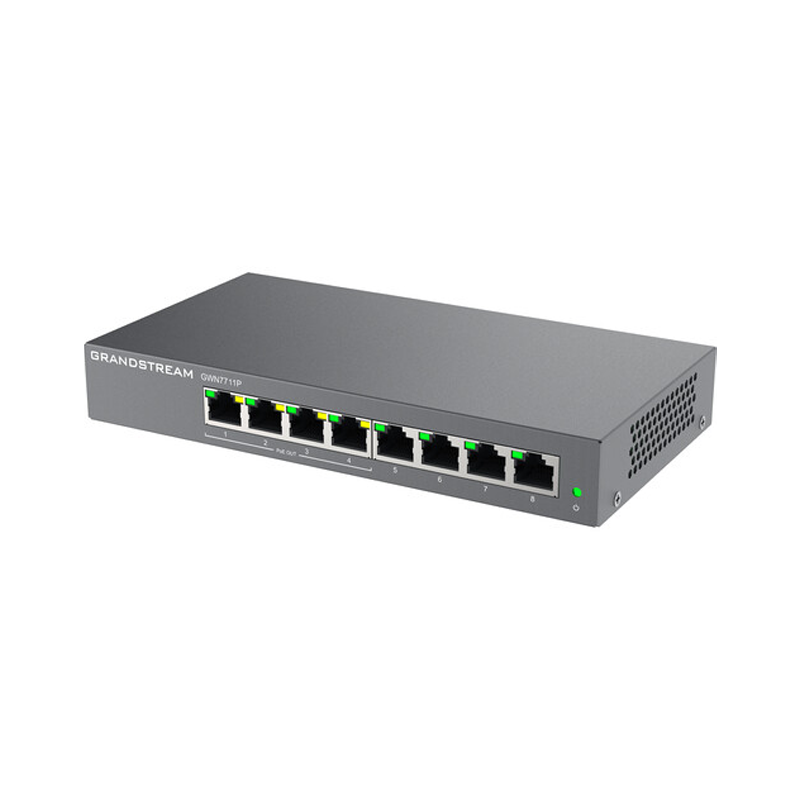

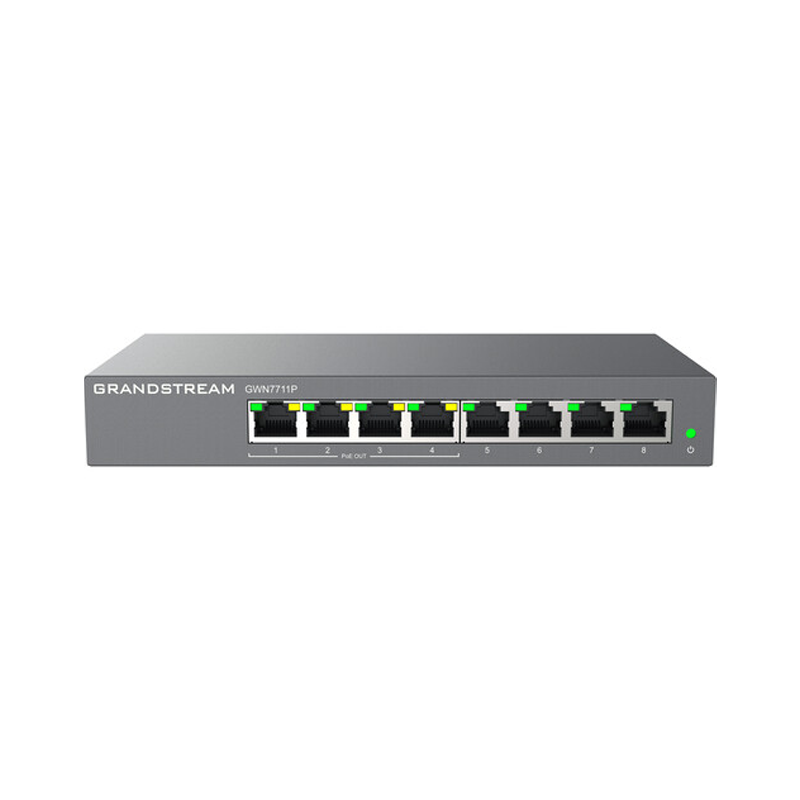

About Grandstream GWN7711P Layer 2-LITE Managed Switch 8 X GIGE 4 X POE/POE OR24VDC Output Mode

The Grandstream GWN7711P is a compact, cost-effective Layer 2 Lite managed switch built for small-to-medium businesses that need reliable, smart networking without the enterprise price tag. With 8 Gigabit Ethernet ports — four of which deliver PoE/PoE+ or 24V DC passive PoE output — it's a practical pick for powering IP phones, cameras, and access points while keeping your network organised and secure. It's fanless, wall or desktop mountable, and managed easily via a web UI or Grandstream's cloud platform.

Key Features

• 8 Gigabit Ethernet Ports — All eight ports run at full Gigabit speed, with a 16 Gbps switching capacity and 11.9 Mpps forwarding rate for smooth, fast data transfers.
• 4 x PoE/PoE+ or 24V DC Output — Ports 1—4 support 802.3af/at PoE with up to 30W per port and a 60W total power budget, plus a 24V DC passive PoE-out mode for compatible devices.
• VLAN & QoS Support — Built-in VLAN segmentation, voice VLAN, QoS traffic prioritisation, and IGMP snooping help keep your VoIP, video, and data traffic running smoothly side by side.
• Cloud & Local Management — Manage the switch through the web UI or Grandstream's cloud-based GDMS platform, with an embedded controller so no separate management server is needed.
• Network Fault Tools — Loop detection, cable test, and port mirroring make it straightforward to track down and sort out network issues quickly.
• Fanless & Flexible Mounting — Completely silent operation in a metal enclosure, with support for both desktop and wall-mount installation to suit different environments.

Why Choose This Product?

The GWN7711P is a great pick for businesses that need a managed PoE switch that's easy to deploy and even easier to manage day to day. It integrates neatly with Grandstream's wider ecosystem of IP phones, cameras, and access points. Our Telrexperts can help you work out the right switch configuration for your network.

What's in the Box

• Grandstream GWN7711P Switch
• Power Adapter
• Quick Installation Guide
