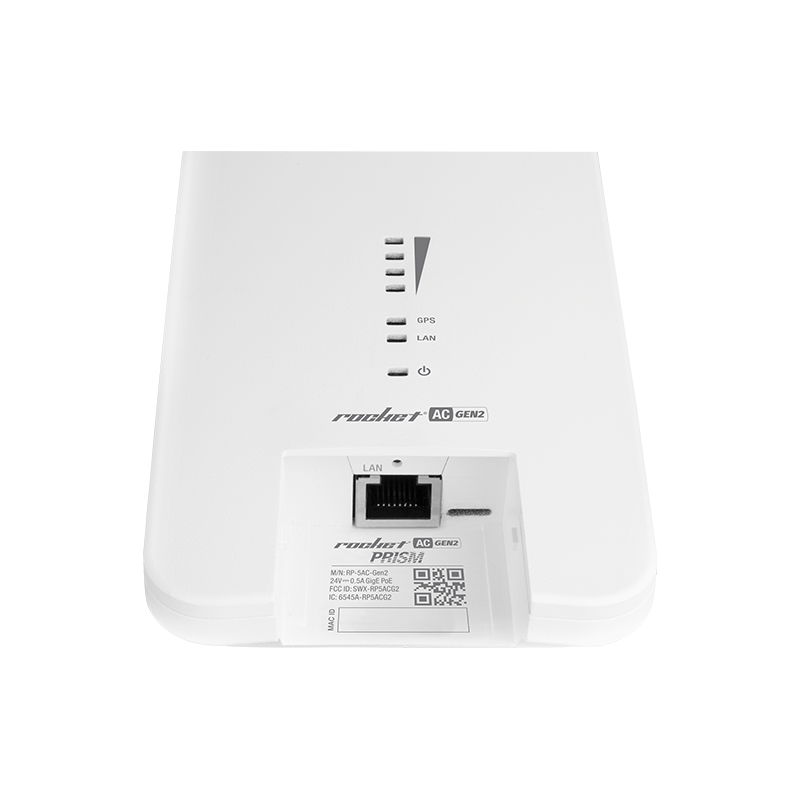

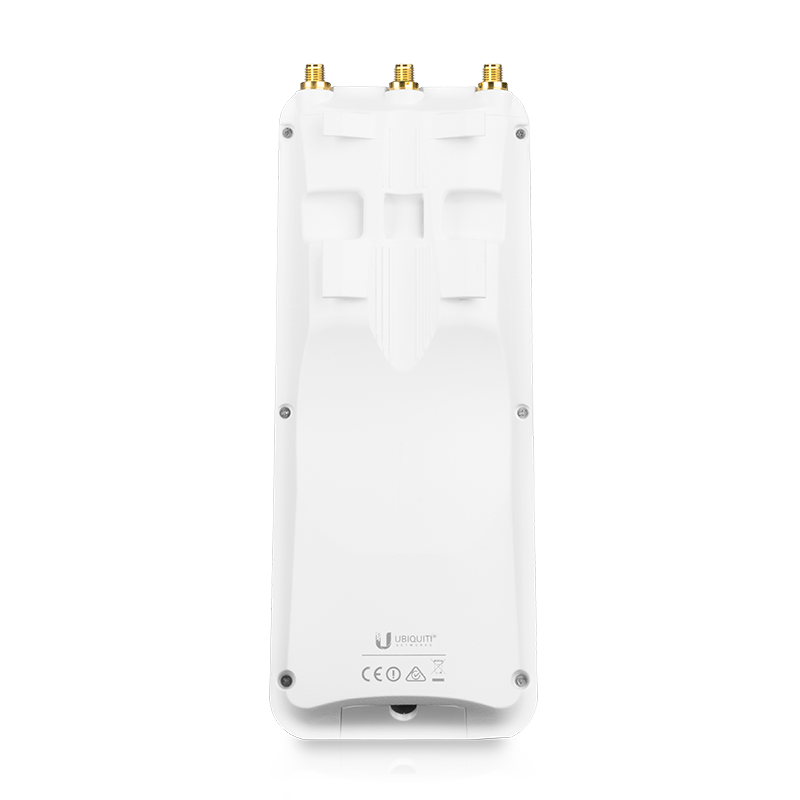

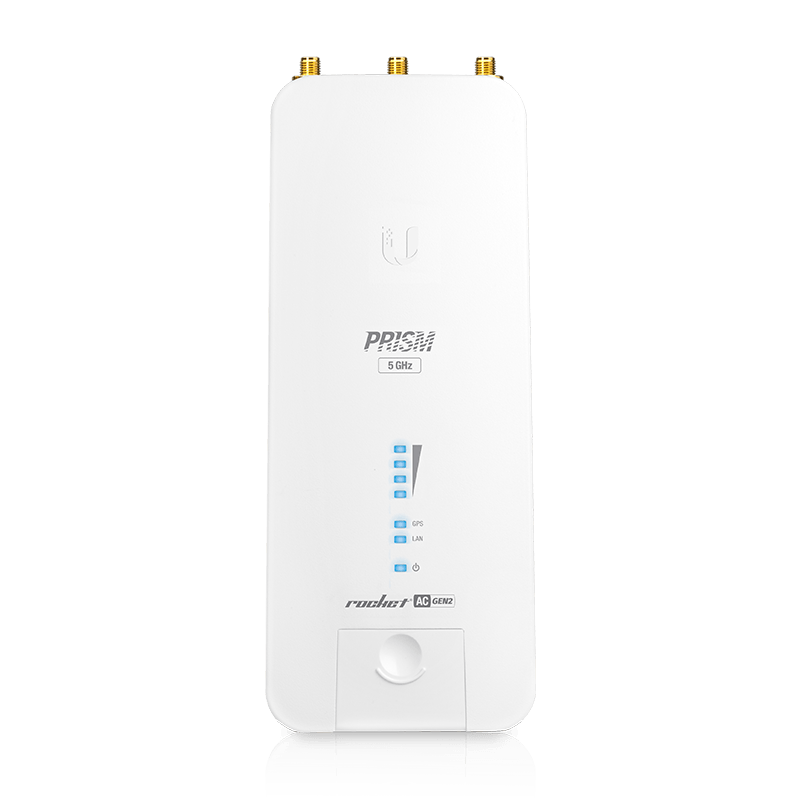

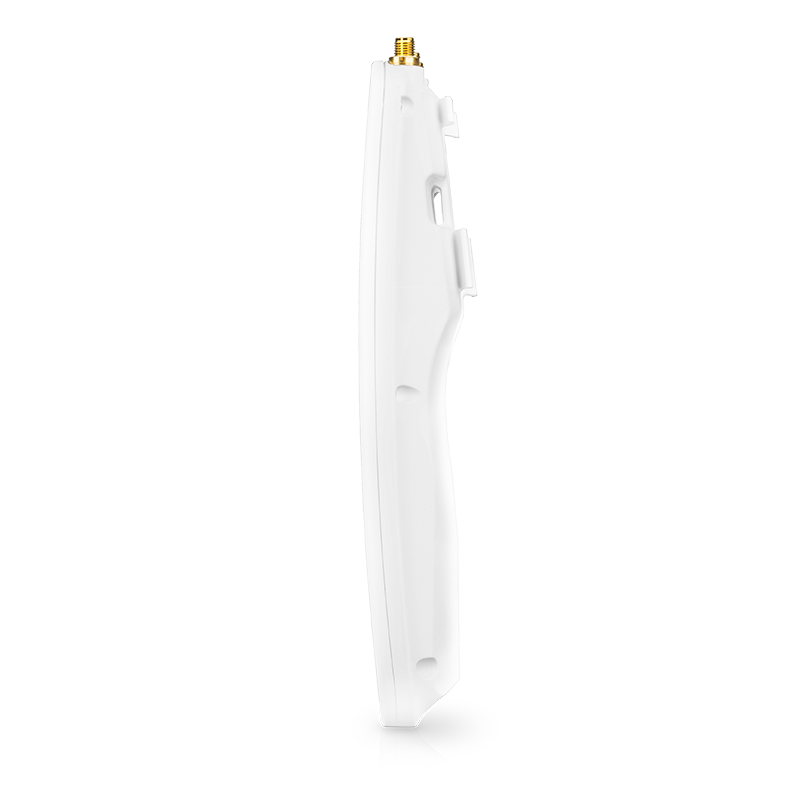

About Rocket AC Prism Gen2 5GHz Radio with speeds up to 500+Mbps

High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.

  • 5 GHz airPrism active RF filtering technology
  • 450+ Mbps throughput
  • 50+ client capacity
  • Dedicated spectral analysis radio
  • Integrated GPS sync
Mechanical
Dimensions: 88 x 40 x 230 mm (3.5 x 1.6 x 9.1")
Weight: 400 g (14.1 oz)
Enclosure Material: Die-cast aluminum
Mounting: Pole mounting (kit included)
Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)

Hardware
Networking Interface: (1) GbE RJ45 port
RF Connectors: (2) RP-SMA (waterproof), (1) GPS (waterproof)
Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply: 24V, 1A gigabit PoE adapter (included)
Supported Voltage Range: 18—27V DC
Max Power Consumption: 9.5W
LEDs: (4) Signal strength indicators (software-adjustable)
Shock and Vibration: ETSI300-019-1.4
Operating Temperature: -40 to 80°C (-40 to 176°F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC, RoHS

Software
Modes: Access Point, Station
Channel Sizes:
PtP mode: 10/20/30/40/50/60/80 MHz
PtMP mode: 10/20/30/40 MHz
Services: Web server, SNMP, SSH, Telnet, DHCP, NAT, bridging, routing
Utilities: airMagic, airView, antenna alignment tool, site survey, ping, traceroute, speed test
Distance Adjustment: Dynamic Ack and Ackless mode
Power Adjustment: Software adjustable UI or CLI
Security: WPA2 AES only
QoS: Supports packet level classification (WMM)
Statistical Reporting: Uptime, packet errors, data rates, wireless distance, Ethernet link rate
Ubiquiti Features: 30/50/60 MHz channels, airMAX ac mode, traffic shaping, discovery protocol

Operating Frequency
Worldwide: 5150–5875 MHz

Management Radio
Worldwide: 2412–2472 MHz



SKU RP-5AC-GEN2
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.050m
Shipping Cubic 0.002000000m3

1 Year Warranty
