About TP-LINK INSIGHT IR PANORAMIC TURRET CAMERA, 8MP, AUDIO, POE, IP67, 3YR

Overview

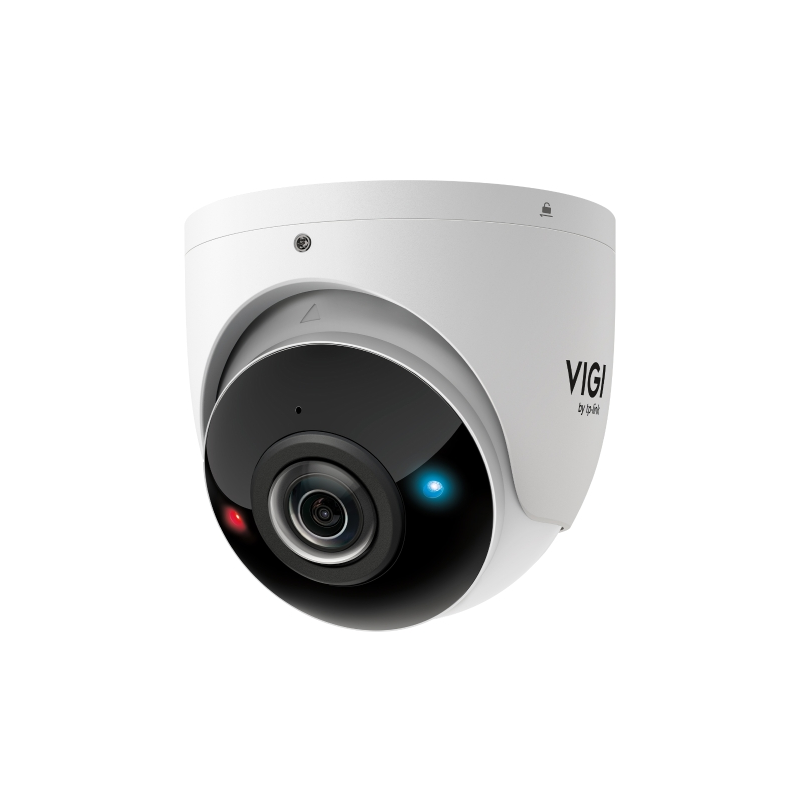

The TP‑Link InSight S485PI (formerly part of the VIGI lineup) is an 8 MP (4K) IR panoramic turret-style network camera that delivers a full 180° ultra-wide field of view. With built-in IR LEDs, it provides night vision up to approximately 20 m (65 ft), and includes both audio and alarm interfaces. The unit is housed in a robust, weatherproof (IP67) and vandal-resistant (IK10) enclosure, designed for both indoor and outdoor use—even in harsh conditions.

Key Features

  • 180° Panoramic 4K Imaging: Captures ultra-wide scenes in crisp 3840 × 2160 resolution, reducing the number of cameras needed in large spaces.
  • 8 MP Progressive‑Scan CMOS Sensor: Offers strong image clarity and a wide panorama (H‑FOV 180°, V‑FOV 86°).
  • Night Vision with Smart IR: Offers clear infrared vision up to 20 m, with dynamic exposure control to prevent glare.
  • H.265+ Compression: Efficient video encoding that reduces bandwidth/storage use by up to ~57.5% vs H.264.
  • AI‑Powered Smart Detection: Detects human and vehicle presence, with capabilities like line crossing, intrusion, loitering, scene change, as well as object abandoned/removed alerts.
  • Active Defense: Features built-in red/blue strobe lights (and optional audible alarm), triggered manually or by smart events to deter intruders.
  • Audio & Alarm I/O: Supports two-way audio (mic + speaker) and external alarm devices via dedicated I/O ports.
  • Rugged Build: Rated IP67 for dust/water protection and IK10 for impact resistance—ideal for outdoor deployment.
  • Versatile Power Options: Can be powered via 12 V DC or PoE (802.3at), simplifying installation.

Why Choose This Product

  • Cost-Efficient Coverage: Its wide 180° field of view lets you cover large areas—hotel lobbies, parking lots, warehouses—with a single camera, cutting down equipment and installation costs.
  • Reliable Night & Day Performance: Smart IR and WDR ensure high-quality, clear footage in varied lighting—from bright daylight to low-light scenarios.
  • Reduced False Alarms: Advanced AI analytics (human/vehicle classification) filter out irrelevant movements like shadows or insects for smarter alerts.
  • Proactive Deterrence: The red/blue strobe and built-in speaker allow active, on‑site deterrence—great for retail, school, or public spaces.
  • Built to Last: Rugged IP67/IK10 certification ensures resilience in harsh conditions and against tampering.
  • Simplified Deployment: PoE support plus flexible alarm/audio I/O make it easy to integrate with existing systems and reduce cabling complexity.

What’s in the Box

  • InSight S485PI 8 MP Network Camera
  • Quick Installation Guide (installation manual included)
  • Waterproof Cable Gland(s) to seal connections
  • Mounting Accessories (screws, brackets, drill guide)



SKU INSIGHT-S485PI
MPN INSIGHT-S485PI
Brand TP-Link ENTERPRISE
