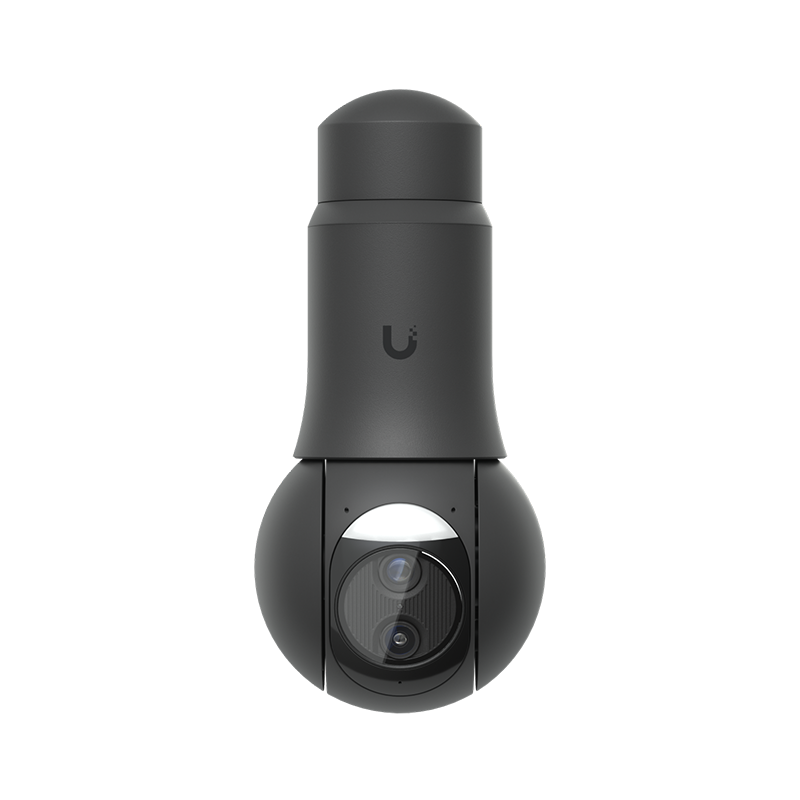

About Ubiquiti Protect 4K 8MP 10x Zoom PTZ Black UVC-G6-PTZ-B

Ubiquiti UVC-G6-PTZ-B Multi-TOPS AI Engine UniFi Protect 4K 8MP 10x Zoom PTZ Black

Ubiquiti Unifi Protect  UVC-G6-PTZ is a All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.

4K (8MP) video resolution

10x hybrid zoom

20 m (65 ft) IR night vision

Multi-TOPS AI Engine

Record audio with an integrated microphone

Dual-lens camera

Connect and power using PoE+

Weatherproof (outdoor exposed)

Technical Specifications

Overview

Dimensions

Without mount: Ø107.2 x 104.5 x 203.2 mm (Ø4.2 x 4.1 x 8") With mount: Ø107.2 x 111 x 230.2 mm (Ø4.2 x 4.8 x 9.1")

IR Night Vision

30 m (98 ft)

Zoom Mode

10x Hybrid

Face Recognition

Yes

License Plate Recognition

Yes

Smart Detections (People, Vehicles, Animals)

Yes

Resolution

4K

Field of View

Wide: H: 109.9°, V: 56.7°, D: 134.1° Tele: H: 26.6°, V: 15.1° , D: 30.4°

Pan-Tilt Range

Pan: 350° Tilt: 100°

Audio

Two-way audio

Weatherproofing

IP66

Tamper Resistance

IK04

Mounting

Wall, Surface, Ceiling, Pole mount (Included) Corner, In-Ceiling, Pendant mount, Conduit adapter (Optional)

UniFi Application Suite

Protect

Yes

Performance

Networking Interface

10/100 MbE RJ45 port

Video

Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Max. Frame Rate

Dual mode: 15 FPS Single mode: 30 FPS

Resolution

8MP 3840 x 2160 (16:9)

Optics

Sensor

1/1.8" 8MP

Lens

Wide: F 4.46 mm; ƒ/1.65 Tele: F 16.3 mm; ƒ/2.4

Night Mode

Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption

24.5W

Supported Voltage Range

42.5—57V DC

Power Method

PoE+

Processor

Quad-core Arm® Cortex®-A53 based chip

Pole Mount Diameter

1.5–2" (38–50 mm)

Weight

Without arm mount: 1 kg (2.2 lb) With arm mount: 1.1 kg (2.4 lb)

Enclosure Material

Aluminum alloy, polycarbonate

Mount Material

Arm mount: polycarbonate Pole mount: aluminum alloy

Expansion Slot

MicroSD card

Button

(1) Factory-reset

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

20 to 90% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC
