About Ubiquiti U7-IW Unifi U7 In-Wall Mounted WiFi 7 AP - POE injector NOT included

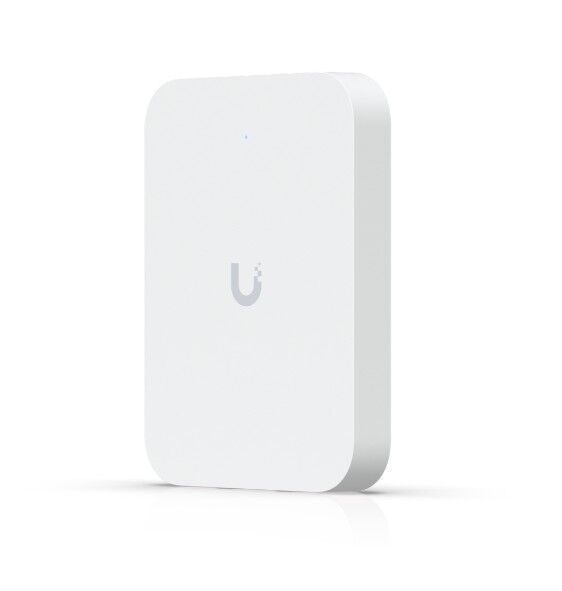

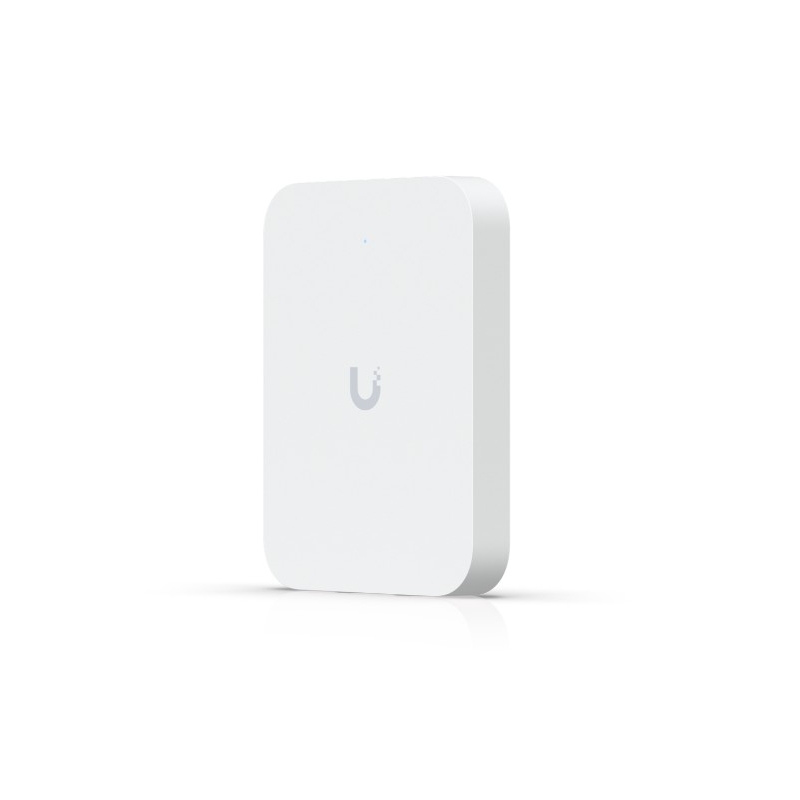

Ubiquiti U7-IW Unifi In Wall WiFi 7 Access Point

Unifi Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

WiFi 7

4 spatial streams

115 m² (1,250 ft²) coverage

200+ connected devices

Powered using PoE/PoE+*

2.5 GbE uplink

*PoE+ required for single-port PoE output.

Technical Specifications

Mechanical
Dimensions	137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
Weight	400 g (14.1 oz)
Enclosure material	Polycarbonate, aluminum
Mount material	Aluminum
Hardware

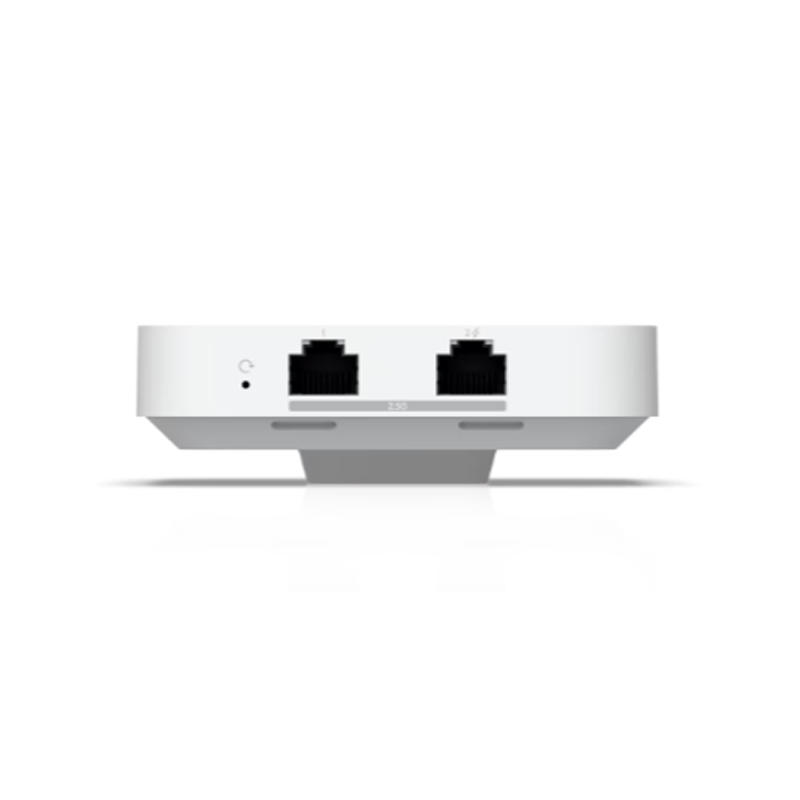

Networking interface	(3) 1/2.5 GbE RJ45 ports
Management interface	Ethernet
PoE interface	(1) PoE+ input (1) PoE output
Power method	PoE PoE+ (Required for PoE output)
Power supply	UniFi PoE switch
Supported voltage range	42.5—57V DC
Max. power consumption	13W (Excluding PoE output)
Max. PoE wattage per port by PSE	12W
Max. TX power 2.4 GHz 5 GHz 6 GHz	23 dBm 24 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) –
Max. data rate 2.4 GHz 5 GHz 6 GHz	688 Mbps (BW40) 4.3 Gbps (BW240) – Depends on regulatory region.
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 8 dBi –
LEDs	White/blue
Button	Factory reset
Mounting	Wall (Included)
Ambient operating temperature	-30 to 40° C (-22 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	200+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) Depends on regulatory region.

Mechanical
Dimensions	150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight	580 g (1.3 lb)
Enclosure material	Polycarbonate, aluminum
Mount material	Aluminum
Hardware
Networking interface	(1) 1/2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	44—57V DC
Max. power consumption	22W
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm 23 dBm
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 2 x 2 2 x 2
Throughput rate 2.4 GHz 5 GHz 6 GHz	688 Mbps 4324 Mbps 5764 Mbps
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 5 dBi 6 dBi
LEDs	White/blue
Button	Factory reset
Mounting	Wall (Included) Table stand, flush mount (Optional)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

SKU	U7-IW
MPN	U7-IW
Brand	Ubiquiti
Shipping Weight	0.0400kg
Shipping Width	0.100m
Shipping Height	0.040m
Shipping Length	0.010m
Shipping Cubic	0.000047000m3
Unit Of Measure	ea
