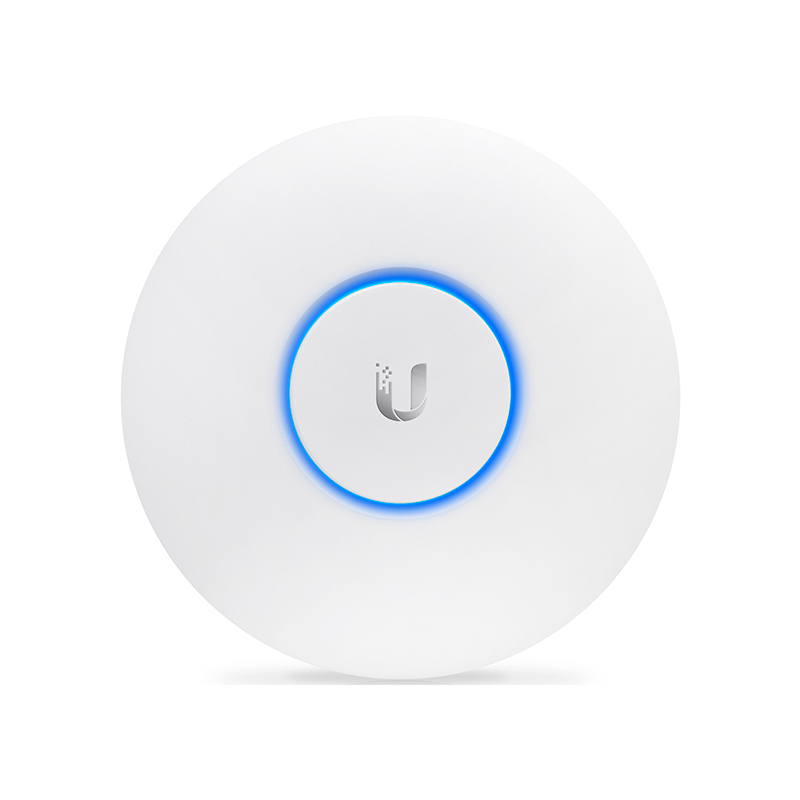

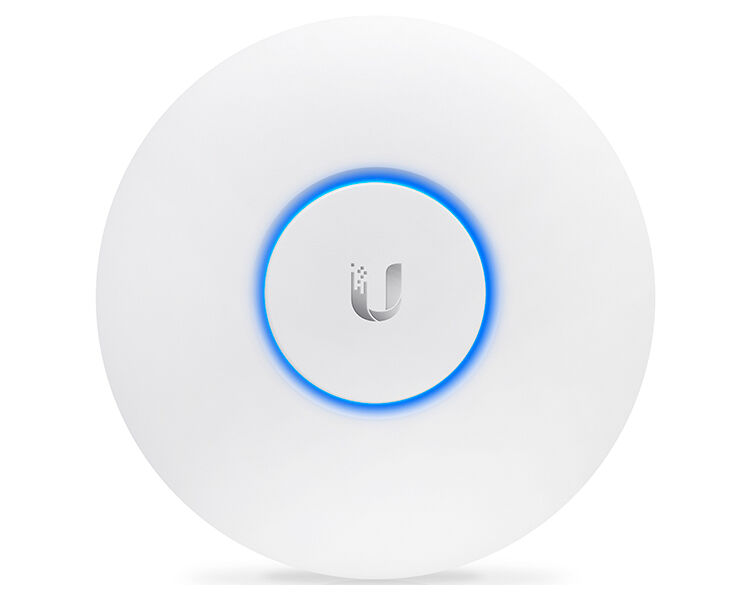

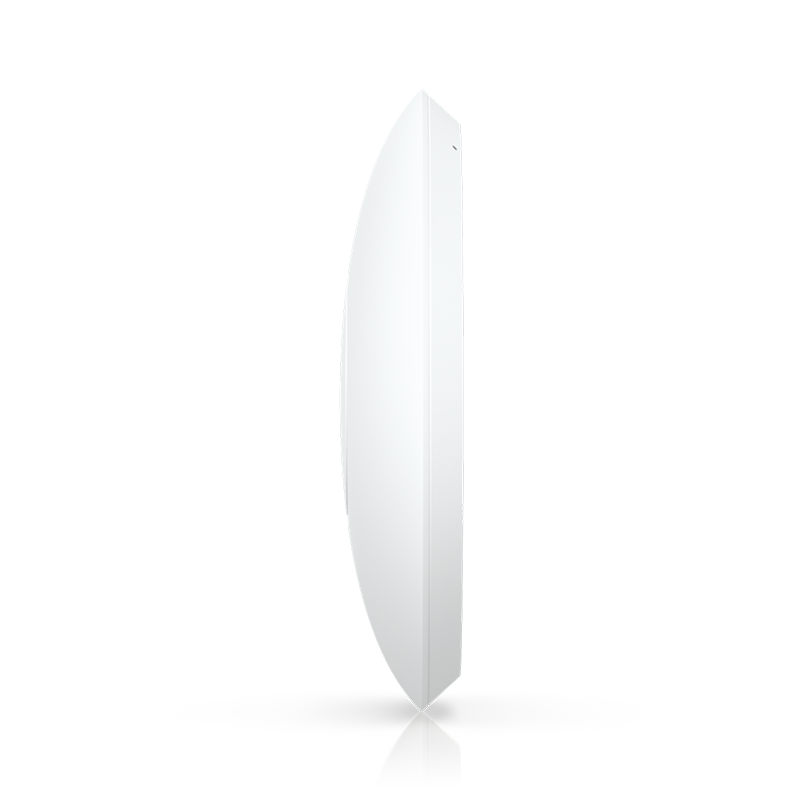

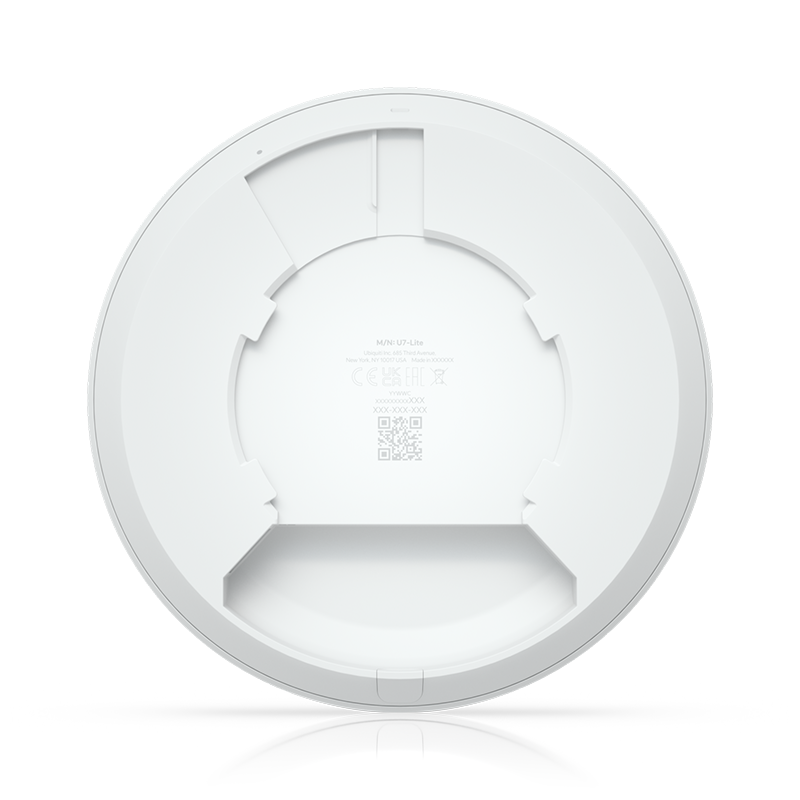

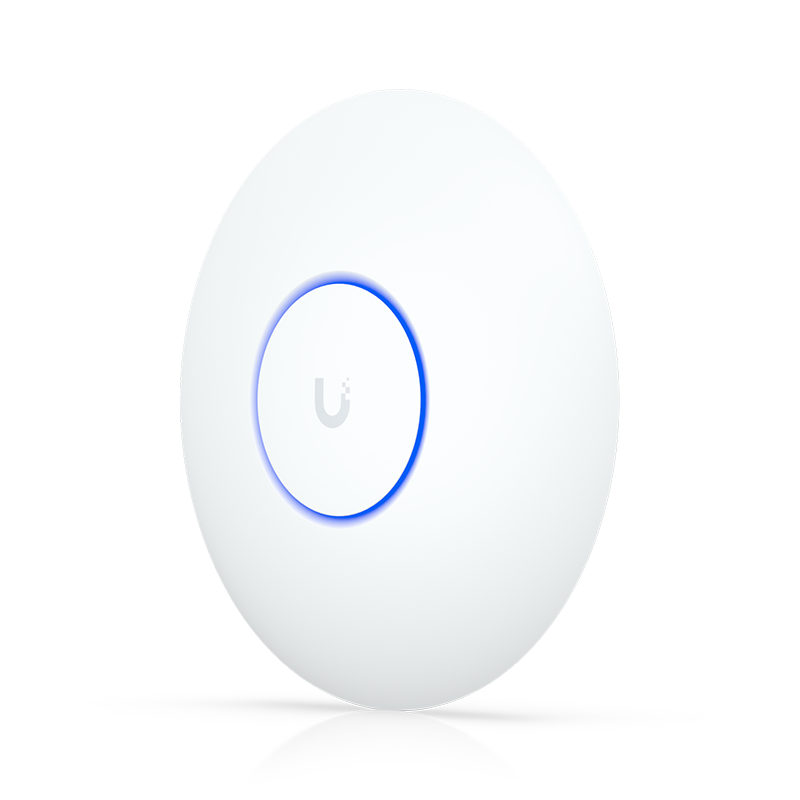

About Ubiquiti U7-Lite UniFi Compact, Ceiling Mounted WiFi 7 AP

Ubiquiti U7-Lite UniFi Compact, Ceiling Mounted WiFi 7 AP 2.5 GbE - No POE Injector Included



Ubiquiti Unifi Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

WiFi 7

4 spatial streams

115 m² (1,250 ft²) coverage

200+ connected devices

Powered using PoE

2.5 GbE uplink





Technical Specifications

Mechanical
Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3")
Weight 313 g (11 oz)
Enclosure material Polycarbonate
Mount material Polycarbonate, galvanized steel (SGCC)
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 13W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
24 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
4.3 Gbps (BW240*)
–
*Depends on regulatory region.
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
5 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Ambient operating temperature -30 to 40° C (-22 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 200+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240*)
*Depends on regulatory region.
Application Requirements
UniFi Network Version X and later
UniFi OS Version X and later
SKU U7-Lite
MPN u7-lite
Brand Ubiquiti
Shipping Weight 0.0500kg
Shipping Width 0.020m
Shipping Height 0.015m
Shipping Length 0.020m
Shipping Cubic 0.000006000m3
Unit Of Measure ea
