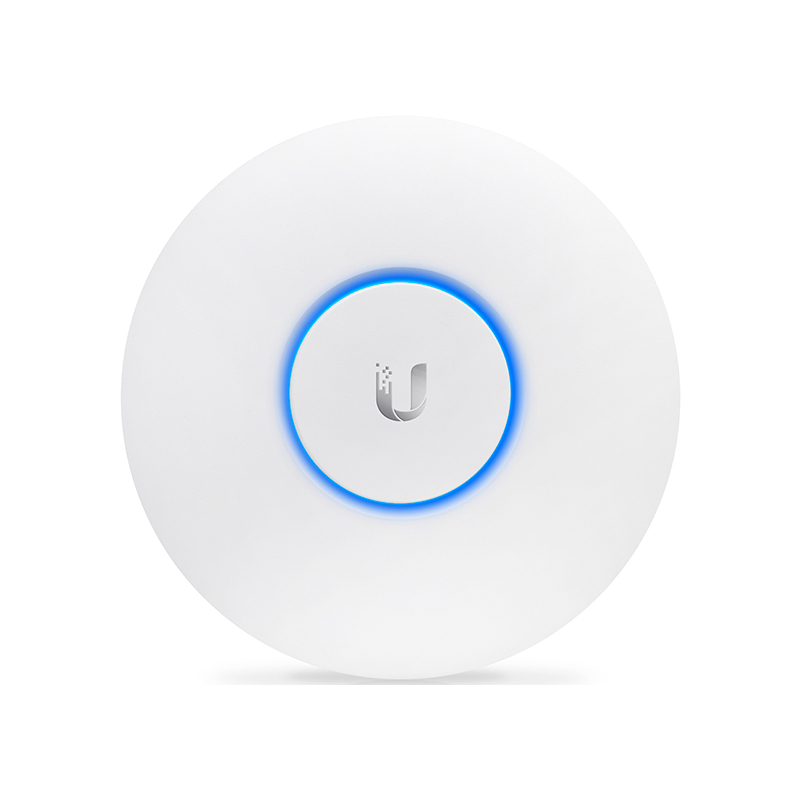

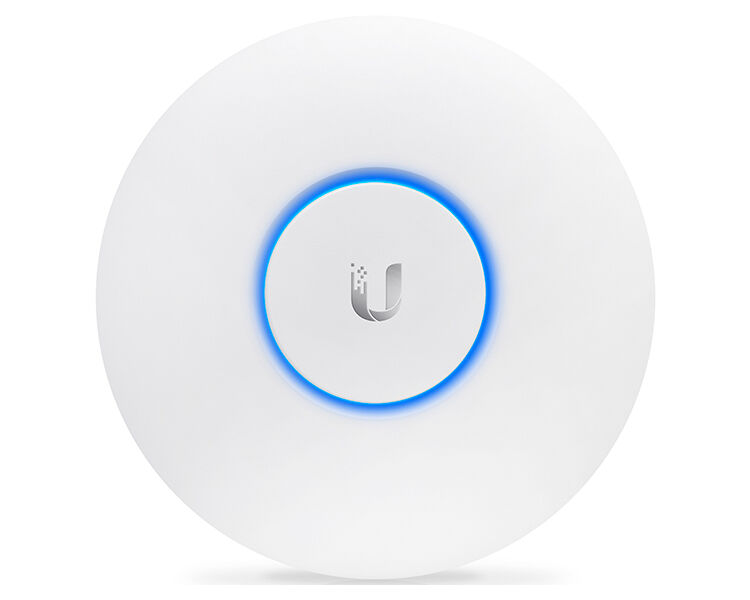

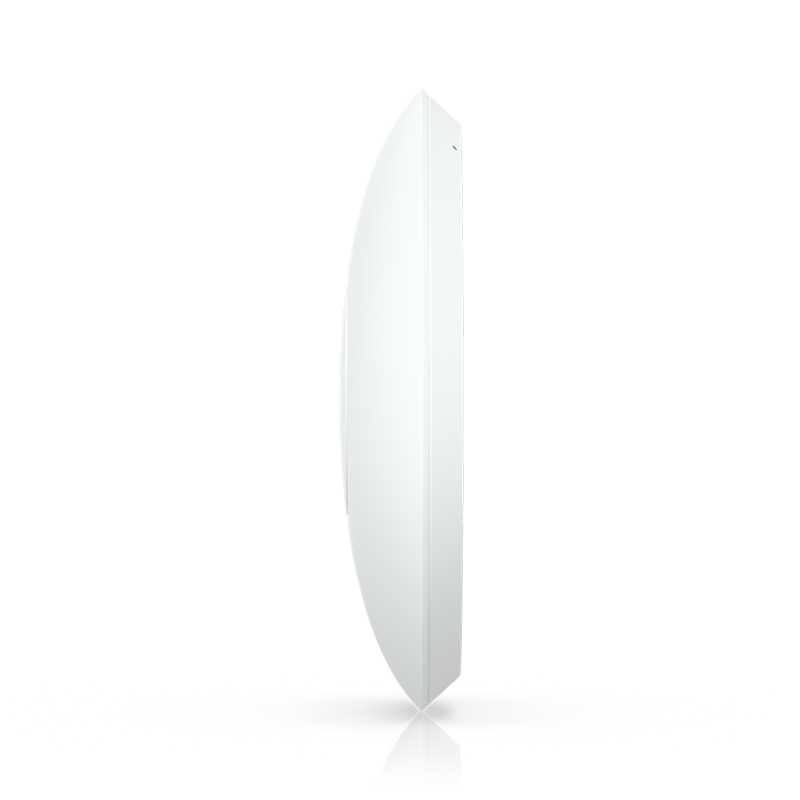

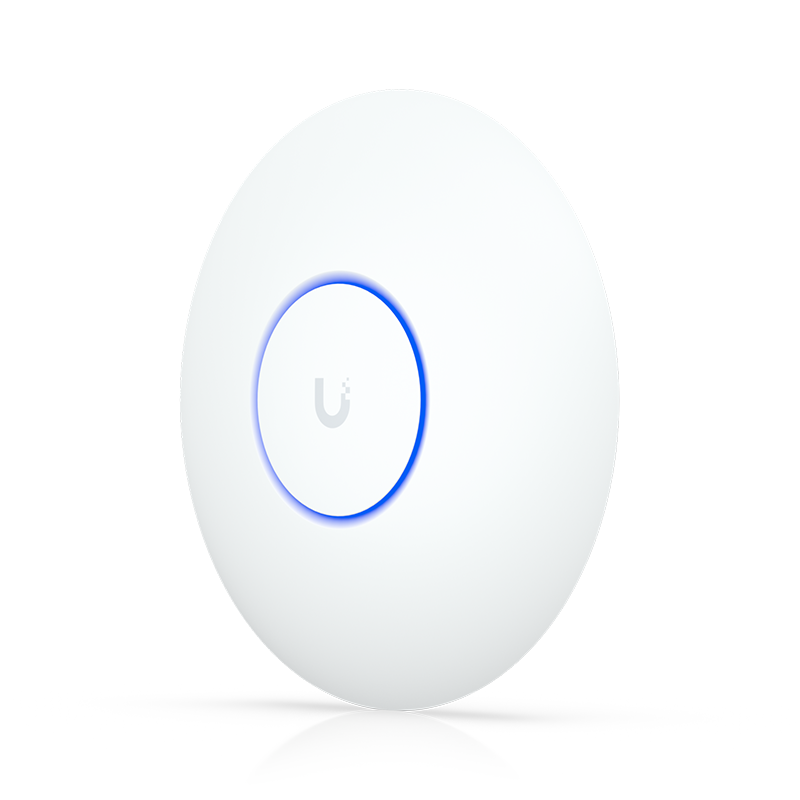

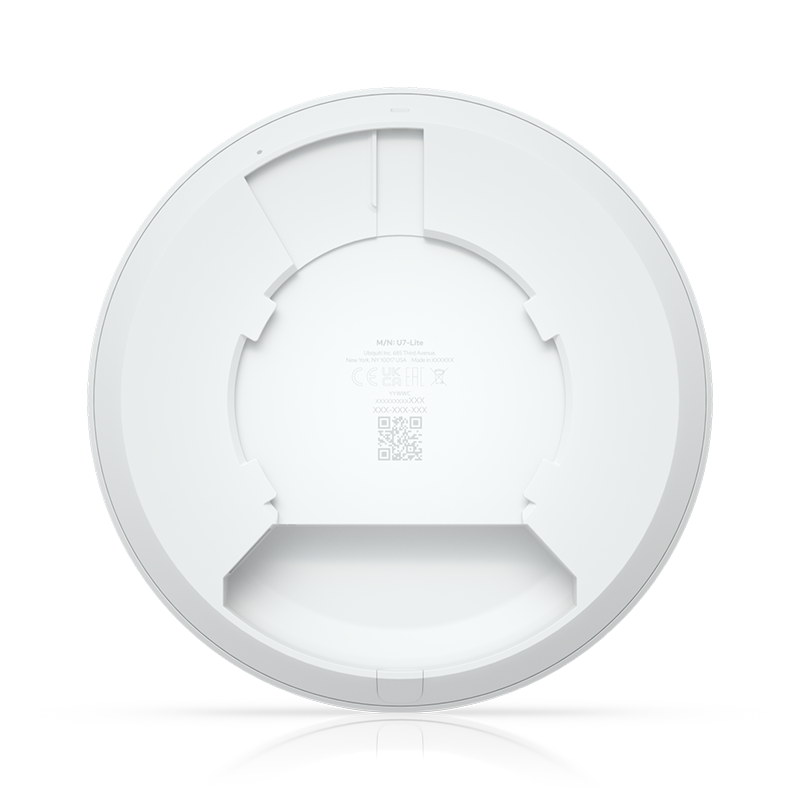

About Ubiquiti U7-LR UniFi U7 Long-Range

Ubiquiti U7-LR UniFi U7 Long-Range, Ceiling Mounted WiFi 7 AP 2.5 GbE - No POE Injector Included

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

WiFi 7

5 spatial streams

160 m² (1,750 ft²) coverage

300+ connected devices

Powered using PoE

2.5 GbE uplink

Technical Specifications

Overview

Dimensions

Ø175.7 x 43 mm (Ø6.9 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams

5

Coverage Area

160 m² (1,750 ft²)

Max. Client Count

300+

Uplink

2.5 GbE

Mounting

Ceiling, Wall (Plastic Mounting Plate included)

Power Method

PoE

Performance

MIMO

5 GHz

3 x 3 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.3 Gbps (BW160)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

6 dBi

2.4 GHz

4 dBi

Max. TX Power

5 GHz

27 dBm

2.4 GHz

26 dBm

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n

6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page

Yes

Voucher Authentication

Yes

Payment-Based Authentication

Yes

External Portal Server Support

Yes

Password Authentication

Yes

Guest Network Isolation

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

14W

Includes PoE Adapter

No

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

448 g (15.8 oz)

Management

Ethernet

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Polycarbonate, galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing
