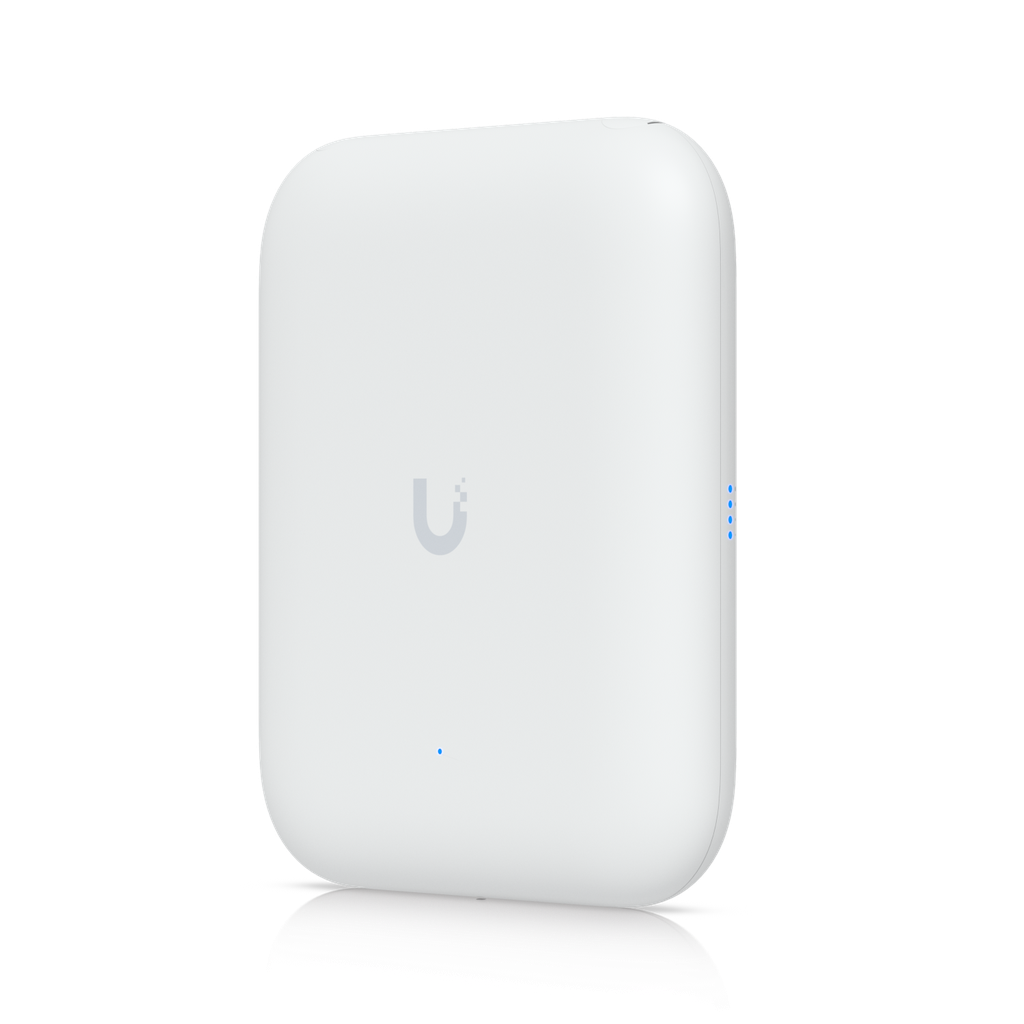

About Ubiquiti U7-Pro-Outdoor Unifi All-weather IP67 WiFi 7 AP

Ubiquiti U7-Pro-Outdoor Unifi All-weather IP67 WiFi 7 AP 2.5G IP67 Outdoor With Omni Antenna Kit

Ubiquiti Unifi Wifi 7 AP All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna, and articulation mounting bracket.

WiFi 7

6 spatial streams

465 m² (5,000 ft²) open space coverage with the integrated directional super antenna

Software-switchable from internal directional to included external omni antennas

300+ connected devices

Powered using PoE+

2.5 GbE uplink

Versatile wall and pole mounting

Weatherproof (outdoor exposed

Unifi U7-Pro-Outdoor Specs

Mechanical
Dimensions	Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
Weight	Device: 1.2 kg (2.6 lb) Mount: 130 g (0.3 lb)
Enclosure material	UV-stabilized polycarbonate, aluminum alloy
Mount material	UV-stabilized polycarbonate
Pole mount diameter	25–63.5 mm (1–2.5") on pipe outer diameter
Wind survivability	74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing	IPX6 IP67 with cable-gland door kit (Included)
Hardware
Networking interface	(1) 1/2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	42.5—57V DC
Max. power consumption	21W
Max. TX power 2.4 GHz 5 GHz 6 GHz	23 dBm 26 dBm 26 dBm* *With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO)
Max. data rate 2.4 GHz 5 GHz 6 GHz	688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320)
Antenna gain 2.4 GHz 5 GHz 6 GHz	Directional internal: 8 dBi / External omni: 6 dBi Directional internal: 11 dBi / External omni: 8 dBi Directional internal: 10 dBi / External omni: –
Antenna beamwidth 2.4 GHz 5 GHz 6 GHz	90° 90° 90°
Antennas	(1) Directional internal antenna (2) RP-SMA connectors for external antenna
LEDs	(1) Power: white/blue (4) Mesh signal: blue
Button	Factory reset
Mounting	Wall, ceiling, pole (Included)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

SKU	U7-PRO-OUTDOOR
MPN	U7-PRO-OUTDOOR
Brand	Ubiquiti
Shipping Weight	2.0000kg
Shipping Width	0.300m
Shipping Height	0.150m
Shipping Length	0.200m
Shipping Cubic	0.009000000m3
Unit Of Measure	ea
