About Ubiquiti UCG-Ultra-AU UniFi Controller Cloud Gateway Ultra

SFP+ direct attach cable with a 10 Gbps max data rate.

  • Supported data rates: 10 / 1 Gbps
  • Compatible with SFP+ and SFP interfaces
  • Cable length: 0.5 to 3 m
Mechanical
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight: 520 g (1.1 lb)
Enclosure Material: Polycarbonate

Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB DDR4
On-board Storage: 16 GB eMMC
Management Interface: Ethernet, Bluetooth
Networking Interfaces:

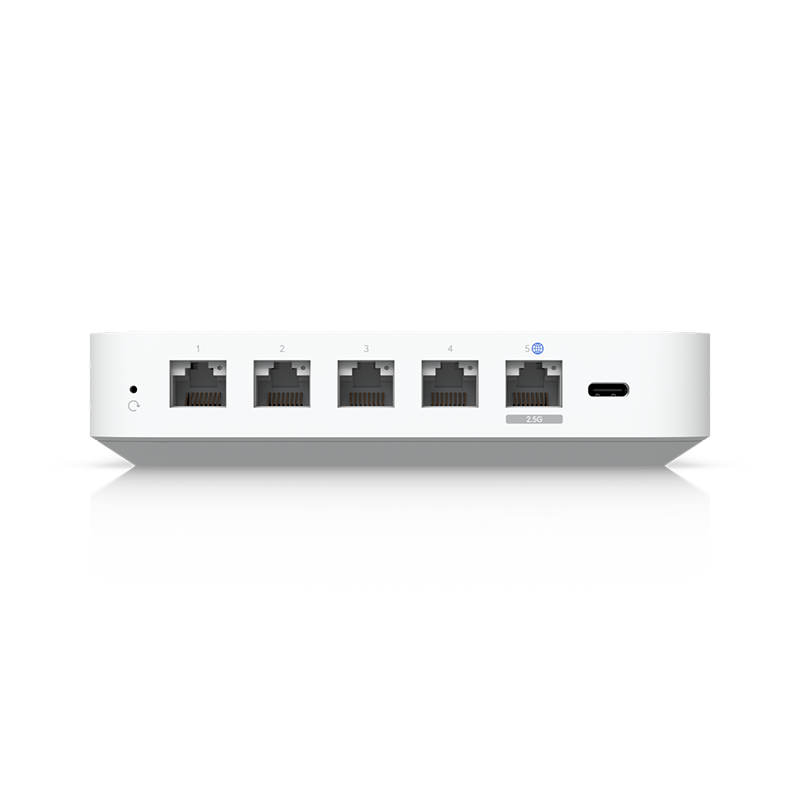

LAN: 4 GbE RJ45 ports
WAN: 1/2.5 GbE RJ45 port
IDS/IPS Throughput: 1 Gbps (performance may vary)
Power Method: USB Type C (5V DC/3A)
Supported Voltage Range: 100–240V AC
Max Power Consumption: 6.2W
Display: 0.96" status display
Button: Factory reset
Operating Temperature: -10 to 40°C (14 to 104°F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC

Gateway Features
Performance: Redundant WAN with failover, load balancing, and WiFi QoS
Security: Application-aware firewall, IPS/IDS threat detection, content filtering
Networking: License-free SD-WAN, VPN support, customizable DHCP server

LEDs
Ethernet: Green for link/activity

Application Requirements
Mobile App: UniFi iOS™ (Version 10.12.0+) and UniFi Android™ (Version 10.11.2+)



SKU UCG-Ultra-AU
Brand Ubiquiti
Shipping Weight 1.0000kg
Shipping Width 0.140m
Shipping Height 0.300m
Shipping Length 0.120m
Shipping Cubic 0.005245200m3

1 Year Warranty

No brochure is available for this product.

Need more information or assistance with this product?

Contact us on 1300 665 970 or complete an online enquiry and one of our staff members will get back to you as soon as possible.

SKU: UCG-Ultra-AU
