About Ubiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway

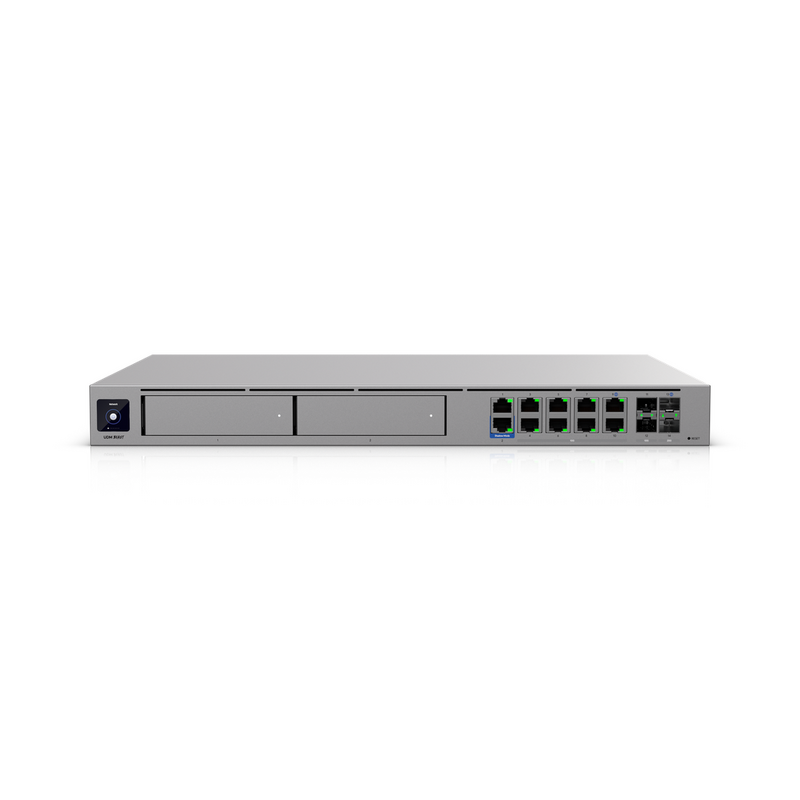

Ubiquiti UDM-Beast UniFi Dream Machine Beast Cloud Gateway

UDM-Beast is a hyperscale-class UniFi Cloud Gateway for high-density networks, delivering 25 Gbps IDS/IPS throughput, 7,500+ client capacity, advanced routing and security, and the full UniFi application platform in a 1U rackmount system.

Key Features

• Hyperscale-class UniFi Cloud Gateway with 25 Gbps IDS/IPS throughput.
• Supports 7,500+ simultaneous users, 750+ managed UniFi devices, and up to 100 HD UniFi Protect cameras.
• High-performance WAN and LAN connectivity with 25G SFP28, 10G SFP+, and 10GbE RJ45 ports.
• Runs the full UniFi application suite: Network, Protect, Access, Talk, and Connect.
• Advanced security and routing including application-aware Layer 7 firewalling, DPI, IPS/IDS, SD-WAN, OSPF, BGP, VPN, and multi-WAN load balancing.
• 1U rackmount chassis with Shadow Mode gateway failover and UniFi RPS DC backup support.

Technical Specifications

• Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
• Weight: 5.5 kg (12.13 lb)
• Form factor: 1U rackmount
• Processor / memory: Octa-core Arm v9 at 2.1 GHz with 16 GB system memory
• Storage: Integrated 128 GB SSD plus two 3.5" NVR HDD bays
• Default WAN ports: 1 x 25G SFP28 and 1 x 10 GbE RJ45
• Ethernet / fibre ports: 2 x 1 GbE RJ45, 8 x 10 GbE RJ45, 2 x 10G SFP+, and 2 x 25G SFP28
• Protect capacity: Up to 100 HD, 60 2K, or 40 4K cameras
• Max. power consumption: 100W
• Power method: Universal 100-240V AC input and USP-RPS DC input for backup power
• Display: 1.3" touchscreen LCM
• Operating environment: 0 to 40°C, 5 to 95% noncondensing humidity
• Certifications: CE, FCC, IC; NDAA compliant
• Application requirements: UniFi iOS 10.34.0+ and UniFi Android 10.37.1+
