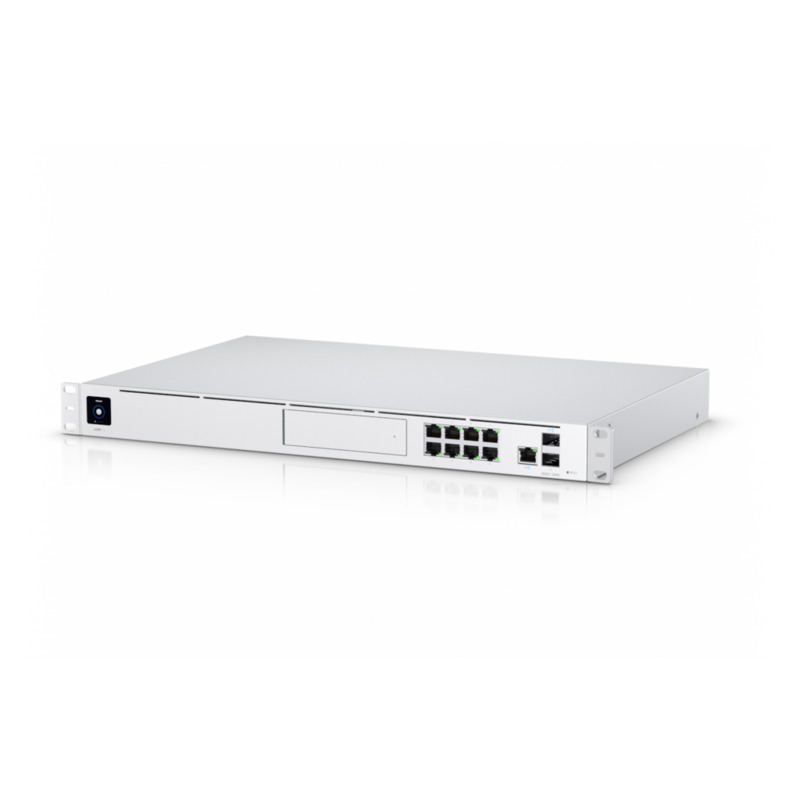

About Ubiquiti UniFi Dream Machine Pro

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.

  • Includes full UniFi application suite for device management
  • 3.5+ Gbps routing with IDS/IPS
  • (1) 10G SFP+*, (8) GbE RJ45 LAN ports
  • (1) 10G SFP+*, (1) GbE RJ45 WAN ports
  • 3.5" NVR HDD bay
  • 1.3" touchscreen
Mechanical
Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight: 3.9 kg (8.6 lb)
Enclosure Material: Aluminium CNC, SGCC steel
Mount Material: SGCC steel

Hardware
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory: 4 GB DDR4
On-board Storage: 16 GB eMMC
Management Interface: Ethernet, Bluetooth
Networking Interfaces:
LAN: 8 GbE RJ45 ports, 1 10G SFP+ port
WAN: 1 GbE RJ45 port, 1 10G SFP+ port
IDS/IPS Throughput: 3.5 Gbps (performance may vary)
Power Method: Universal AC input (100—240V AC, 50/60 Hz), USP-RPS DC input
Power Supply: AC/DC, internal, 50W
Max Power Consumption: 33W
ESD/EMP Protection: ± 15kV air, ± 8kV contact
Display: 1.3" touchscreen
Buttons: Factory reset
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC

Gateway Features
Performance: Redundant WAN, WiFi QoS, LTE backup
Security: Application-aware firewall, IPS/IDS threat detection, content filtering
Advanced Networking: License-free SD-WAN, multiple VPN options, customizable DHCP server

LEDs
Ethernet: Link/activity indicators (green for 1G, amber for 10/100M)
SFP+: Link/activity indicators (white for 10G, green for 1G)
HDD: Disk activity (white) and error (amber)
RPS: Ready indicator (blue)



SKU UDM-PRO
MPN UDM-PRO
Brand Ubiquiti
Shipping Weight 5.1200kg
Shipping Width 0.120m
Shipping Height 0.390m
Shipping Length 0.520m
Shipping Cubic 0.016500000m3
Unit Of Measure ea

1 Year Warranty
