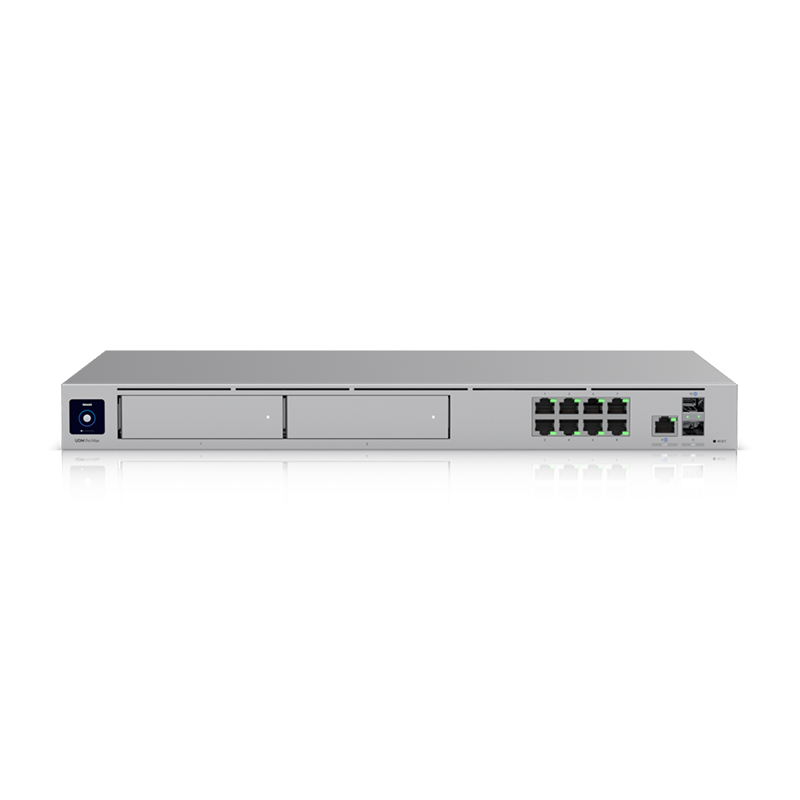

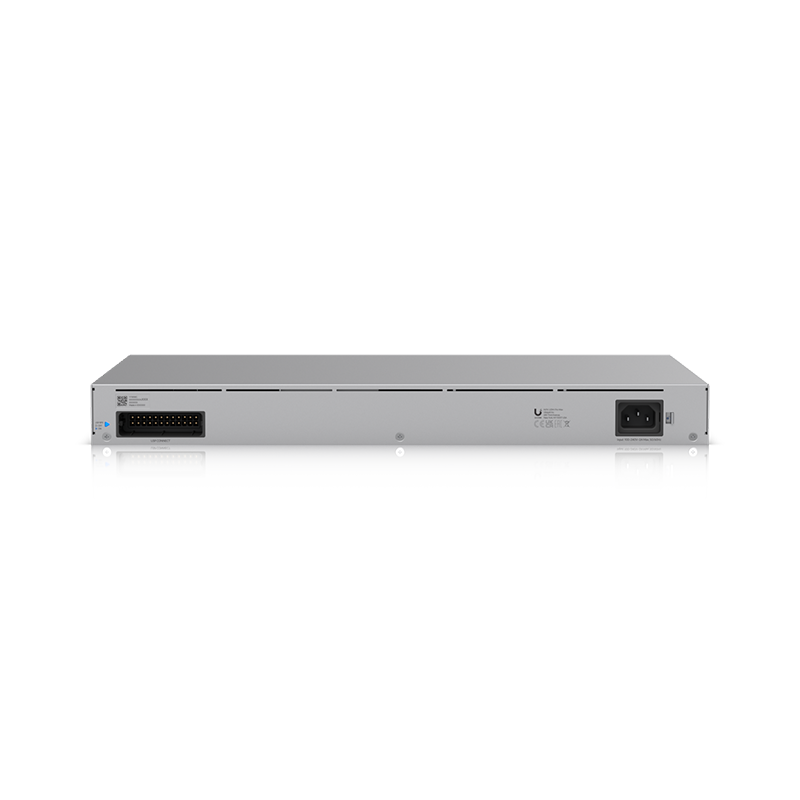

About UDM-PRO-MAX-AU

10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

  • Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
  • Includes full UniFi application suite for device management
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+*, (8) GbE RJ45 LAN ports
  • (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
  • (2) 3.5" NVR HDD bays with RAID data protection
  • Built-in 128 GB SSD for NVR detection recordings
Mechanical
Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight: 4.7 kg (10.4 lb)
Enclosure Material: Aluminium CNC, SGCC steel
Mount Material: SGCC steel

Hardware
Processor: Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory: 8 GB DDR4
On-board Storage: 32 GB eMMC, integrated 128 GB SSD
Management Interface: Ethernet, Bluetooth
Networking Interfaces:
LAN: 8 GbE RJ45 ports, 1 10G SFP+ port
WAN: 1 2.5 GbE RJ45 port, 1 10G SFP+ port
IDS/IPS Throughput: 5 Gbps (performance may vary)
Power Method: Universal AC input (100—240V AC, 2A Max), USP-RPS DC input (11.5V DC, 8.7A)
Power Supply: AC/DC, internal, 100W
Max Power Consumption: 100W
ESD/EMP Protection: ± 15kV air, ± 8kV contact
Display: 1.3" touchscreen
Buttons: Factory reset
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC

Gateway Features
Performance: Redundant WAN, WiFi QoS, LTE backup
Security: Application-aware firewall, IPS/IDS threat detection, content filtering
Advanced Networking: License-free SD-WAN, multiple VPN options, customizable DHCP server

LEDs
Ethernet: Green for link/activity
SFP+: Green for link/activity
HDD: White for disk activity, amber for disk error
RPS: Blue for ready status



SKU UDM-PRO-MAX
MPN UDM-PRO-MAX-AU
Brand Ubiquiti
Shipping Weight 2.0000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
Unit Of Measure ea

1 Year Warranty

No brochure is available for this product.

Need more information or assistance with this product?

Contact us on 1300 665 970 or complete an online enquiry and one of our staff members will get back to you as soon as possible.

SKU: UDM-PRO-MAX • MPN: UDM-PRO-MAX-AU
