Buy Ubiquiti USW-Pro-Max-24-POE UniFi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output (USW-PRO-MAX-24-POE)

About Ubiquiti USW-Pro-Max-24-POE UniFi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output

A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

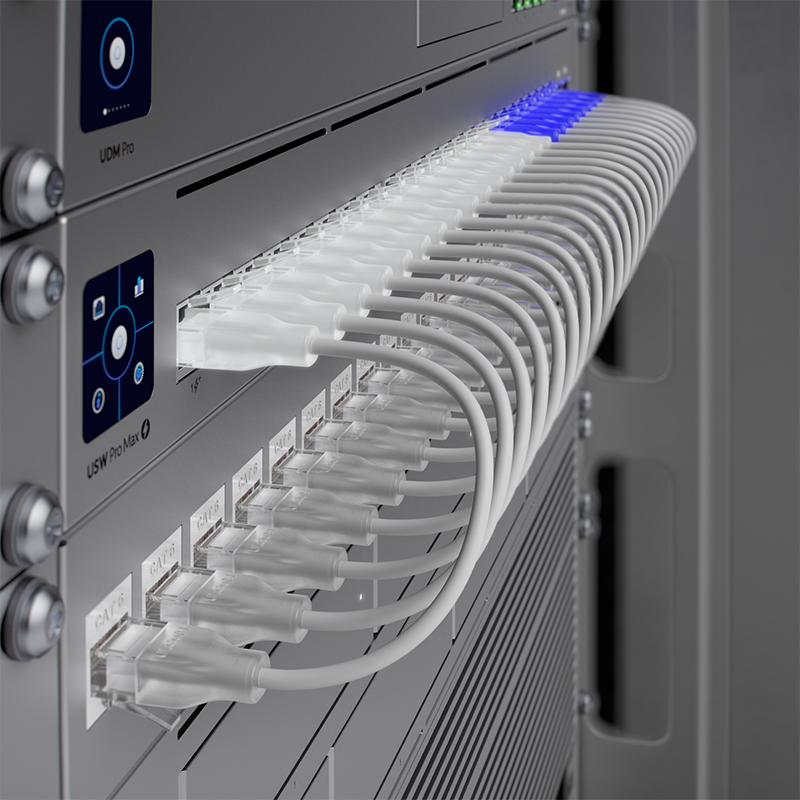

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability

_{*Pair with UniFi Etherlighting Patch Cables for optimal brightness.}

Mechanical

Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 inches)

Weight: Without mounting brackets: 5.1 kg (11.3 lb)

With mounting brackets: 5.2 kg (11.5 lb)

Material: SGCC steel

Hardware

Management Interface: Ethernet In-Band

Networking Interfaces: 16 GbE RJ45 ports

8 1/2.5 GbE RJ45 ports

2 10G SFP+ ports

PoE Interfaces: 8 PoE/PoE+ ports

16 ports with 60W PoE++

Throughput: Total non-blocking: 56 Gbps

Switching capacity: 112 Gbps

Forwarding rate: 83.328 Mpps

Power Supply: Internal AC/DC, 450W

Max power consumption: 50W (excluding PoE)

Total available PoE: 400W

Environmental

Operating Temperature: -5 to 40°C (23 to 104°F)

Humidity: 10 to 90% non-condensing

Certifications: CE, FCC, IC

Features

Layer 2: IGMP snooping, STP/RSTP, VLAN support, and more.

Layer 3: DHCP, static routing, and network isolation.

Application Requirements

UniFi Network: Version 8.0.24 and later.
