About UVC-G5-Dome-Ultra

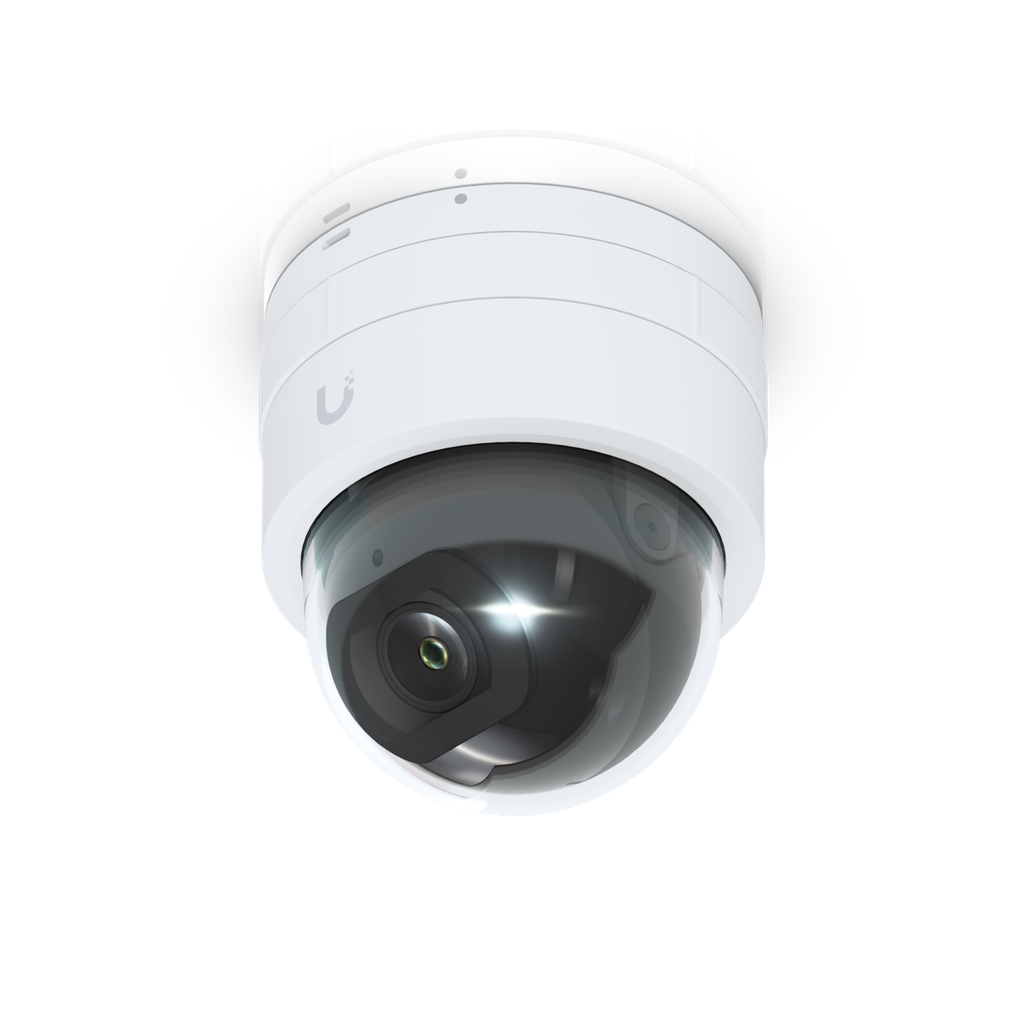

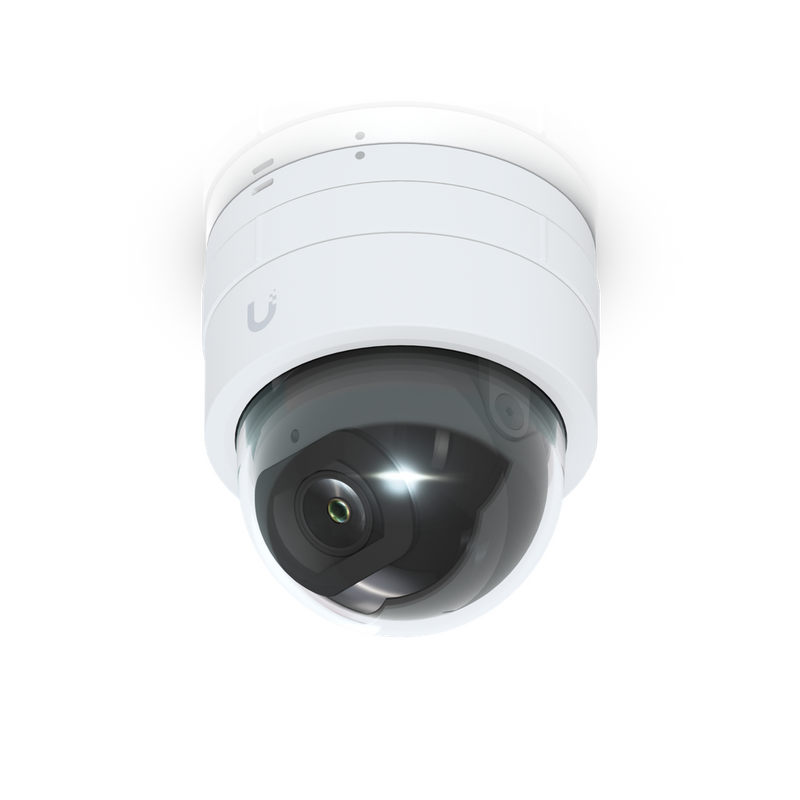

Ubiquiti UVC-G5-Dome-Ultra Unifi G5 Dome Ultra



Ubiquiti Unifi UVC-G5-Dome-Ultra

Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.

2K (4MP) video resolution

Ultra-wide viewing angle (102.4°)

20 m (65 ft) IR night vision

AI event detections

Connect and power using PoE

Optional Flush Mount for in-ceiling installation

UVC-G5-Dome-Ultra Technical Specifications

Mechanical
Dimensions Ø63.6 x 68.2 mm
Weight 175 g
Enclosure material Aluminum alloy, polycarbonate
Mount material Stainless steel
Resistance IK06
Optics
Sensor 1/2.4" CMOS
Lens Fixed focal length
View angle H: 102.4°, V: 54.9°, D: 120.6°
Night mode Built-in IR LED illumination and IR cut filter
IR distance 20 m
Video
Video compression H.264
Resolution 4MP 2688 x 1512 (16:9)
Max. frame rate 30 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor Dual-core Arm® Cortex®-A7 based chip
Networking interface 10/100 MbE RJ45 port
Max. power consumption 4.2W
Power method PoE
Supported voltage range 37–57V DC
Button Factory reset
Mounting Surface mount
Ambient operating temperature -20 to 40º C
Ambient operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Software
Web application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
SKU UVC-G5-DOME-ULTRA
MPN UVC-G5-DOME-ULTRA
Brand Ubiquiti
Shipping Weight 0.0500kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.140m
Unit Of Measure ea
