About Grandstream GDS3725 Smart IP Video Door Station with Keypad - 4MP HDR Camera, RFID, PoE, IP66 - Access Control & Video Intercom

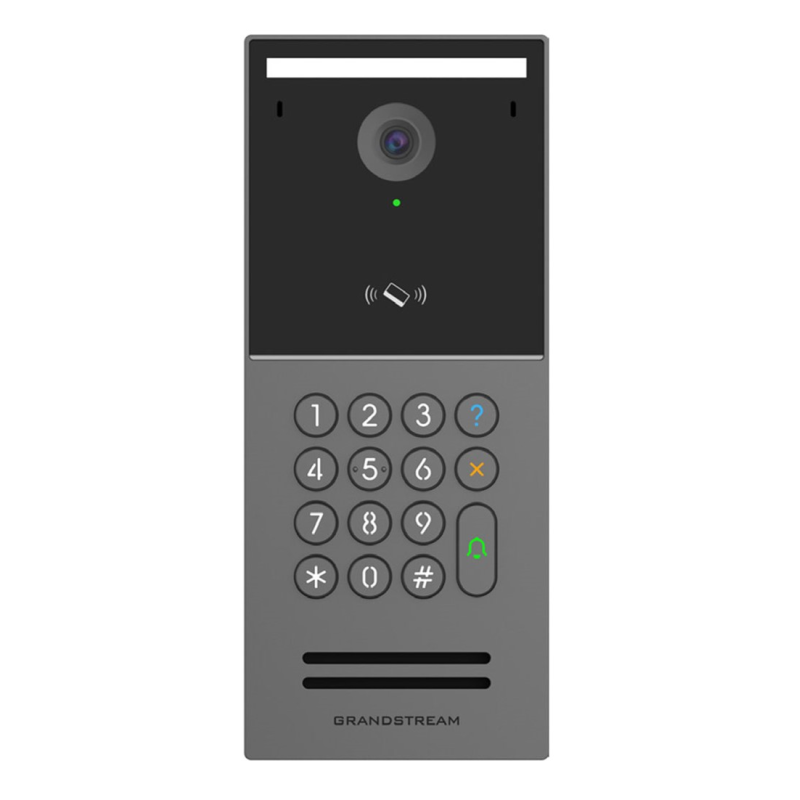

Grandstream GDS3725 Smart IP Video Door Station with Keypad

The Grandstream GDS3725 is a rugged, all-in-one IP video door station for access control and video intercom at offices, warehouses, apartment blocks, schools and gated sites. A 4 MP HDR camera with a 152° diagonal view and white-light illumination gives a clear picture day or night, while two-way HD audio, a 15-key numeric keypad and a built-in RFID reader let visitors call in and authorised staff unlock the door with a PIN, card or fob. It runs on standard PoE over a single network cable and integrates with Grandstream UCM IP PBXs, GRP/GXV IP phones and the GDMS cloud, so a call from the door can ring straight to a desk phone, Wave app or mobile with one-touch door release.

Key Features

• 4 MP HDR camera (up to 120 dB WDR) with F2.2 lens – 127° horizontal, 70° vertical, 152° diagonal field of view
• Auto-brightness white-light illumination (6 LEDs) for clear colour video at night
• 15-key backlit numeric keypad with doorbell, manager and clear keys for PIN access
• Built-in RFID reader: 13.56 MHz MIFARE Classic / Ultralight / PLUS / DESFire and 125 kHz ID cards
• Two-way HD audio with dual microphones, 3 W speaker and wideband G.722 codec
• SIP video intercom – H.264 video to Grandstream IP phones, Wave app and UCM PBXs
• 2 relay outputs for lock control and alarm linkage, 3 alarm inputs, Wiegand (26/34/58-bit) and RS-485 ports
• Single 10/100 Mbps PoE (802.3af) Ethernet port; 9–36 V DC input alternative
• IP66 weatherproof and IK10 vandal-resistant metal housing, -30°C to 60°C operation
• Wall or flush mount; managed via web GUI, GDS Manager, GDMS and the SecureAccess app

Why Choose This Product?

The GDS3725 replaces a separate door phone, camera and access reader with one PoE device that talks SIP, so it slots into a Grandstream UCM6300 series system (or most SIP platforms) without extra controllers. The keypad makes it the right pick in the GDS3720 family when you need PIN entry as well as cards – choose the GDS3726 if you only need a call button, or the GDS3727 for Wi-Fi. Our Telrexperts can help you plan the door strike, power and cabling and pre-configure it with your phone system.

What's in the Box

• Grandstream GDS3725 IP video door station
• Mounting bracket and terminal block back panel
• Expansion bolts, screws and waterproof plugs
• Sample IC card, keypad labels and keycap puller
• Quick Installation Guide

Note: designed to be powered via PoE (802.3af). A 12 V DC power supply is available separately if PoE is not available.
