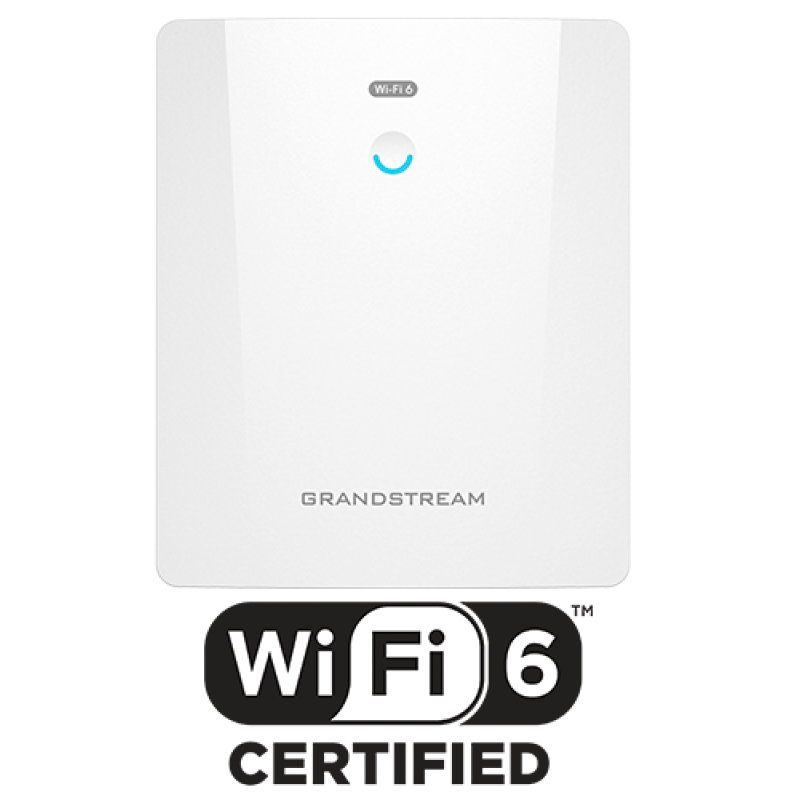

About Grandstream GWN7664ELR 4X4 802.11AX WI-FI 6 Outdoor Long Range AP AX6000 1 X 2.5 GBE 1 X 2.5 Sfp ports HE160

The Grandstream GWN7664ELR is a high-performance outdoor Wi-Fi 6 access point built for medium to large businesses that need serious long-range wireless coverage. With up to 6 Gbps aggregate throughput, a 300-metre coverage range, support for 512 concurrent clients, and IP67-rated weatherproofing, it's a top-notch pick for campuses, warehouses, schools, hospitals, stadiums, and any enterprise site where outdoor Wi-Fi needs to actually perform. Dual 2.5G ports — one RJ45 with PoE+, one SFP — give you flexible, high-speed wired backhaul options to suit your infrastructure.

Key Features

• Wi-Fi 6 AX6000 Performance — Dual-band 4x4:4 MU-MIMO with OFDMA delivers up to 6 Gbps aggregate wireless throughput, keeping large numbers of users connected without slowdowns.
• 300-Metre Coverage Range — Eight internal antennas with 6.5 dBi gain on 5 GHz and HE160 channel support push coverage further than standard outdoor APs, cutting down the number of units you need.
• 512 Concurrent Clients — Handles up to 512 simultaneous Wi-Fi devices across 32 SSIDs (16 per band), making it well suited to dense or high-traffic environments.

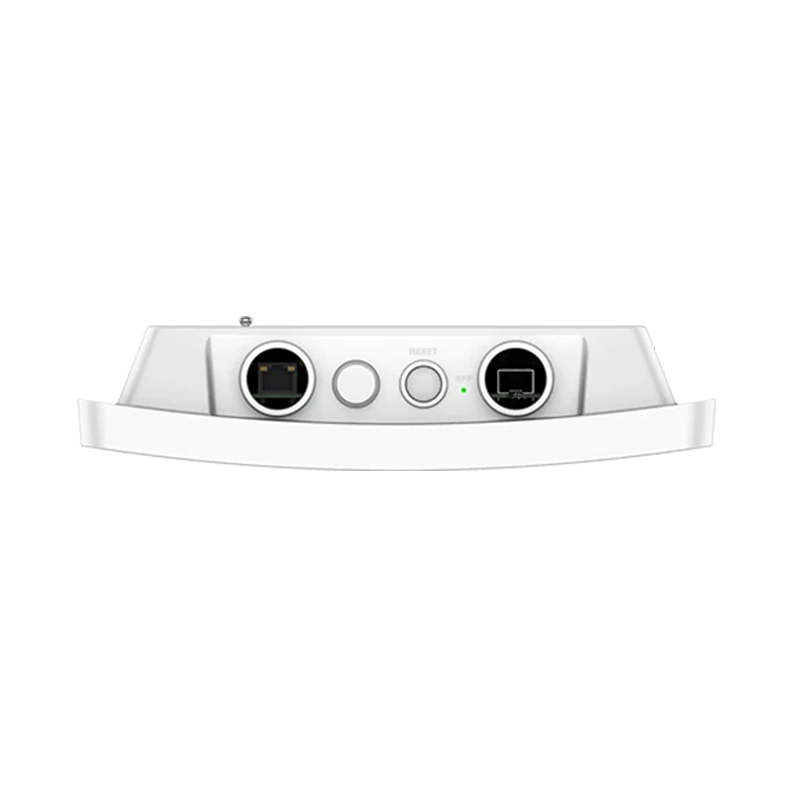

• Dual 2.5G Wired Ports — One 2.5 Gbps RJ45 port with PoE/PoE+ auto-detection and one 2.5 Gbps SFP port give you fast, flexible backhaul and clean cable runs.
• IP67 Weatherproofing — Fully sealed against dust and water immersion, with wall and pole mounting kits included — ready for permanent outdoor installation in demanding conditions.
• Built-in & Cloud Management — An embedded controller manages up to 50 local GWN APs directly. Scale further with GWN.Cloud for unlimited cloud-based management or GWN Manager for on-premise control.
• Enterprise Security — WPA3, anti-hacking secure boot, unique per-device security certificates, and advanced QoS keep your network fast, reliable, and locked down.

Why Choose This Product?

If you're rolling out outdoor Wi-Fi across a large site and need coverage, capacity, and reliability all in one unit, the GWN7664ELR delivers the lot. It's built tough, straightforward to manage, and plays well with Grandstream's broader UC ecosystem. Our Telrexperts can help you plan your deployment and get the most out of your wireless network.

What's in the Box

• Grandstream GWN7664ELR Access Point
• Wall Mount Kit
• Pole Mount Kit
• Quick Installation Guide
