About Ubiquiti U5G UniFi 5G Backup

Ubiquiti U5G-US UniFi 5G Backup

Red = Not Supported

Green = Supported

Australian 5G Frequency Spectrum Layers
  • Low Band (Coverage)
    • n28 (700 MHz) – Used by Optus and Vodafone (and Optus/Telstra sharing)
    • n5 / n26 (850 MHz) – Used extensively by Telstra
    • n8 (900 MHz) – Used by Optus
  • Mid Band (Capacity & Speed):
    • n1 (2100 MHz) – Used by Optus and Vodafone
    • n3 (1800 MHz) – Used by Vodafone
    • n7 (2600 MHz) – Used by Telstra
    • n40 (2300 MHz) – Used by Optus
    • n78 (3400–3500 MHz) – The primary nationwide 5G layer for Telstra, Optus, and Vodafone

U5G-US is a compact PoE-powered 5G RedCap and LTE backup antenna system for UniFi deployments, providing automatic internet backup from any UniFi PoE port with versatile desktop, wall, and window mounting.

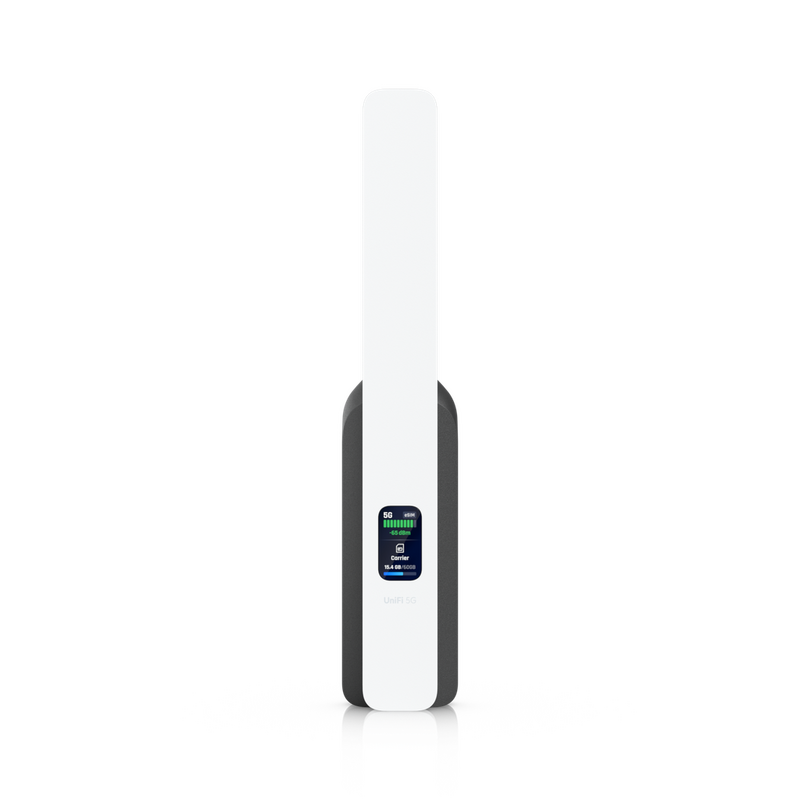

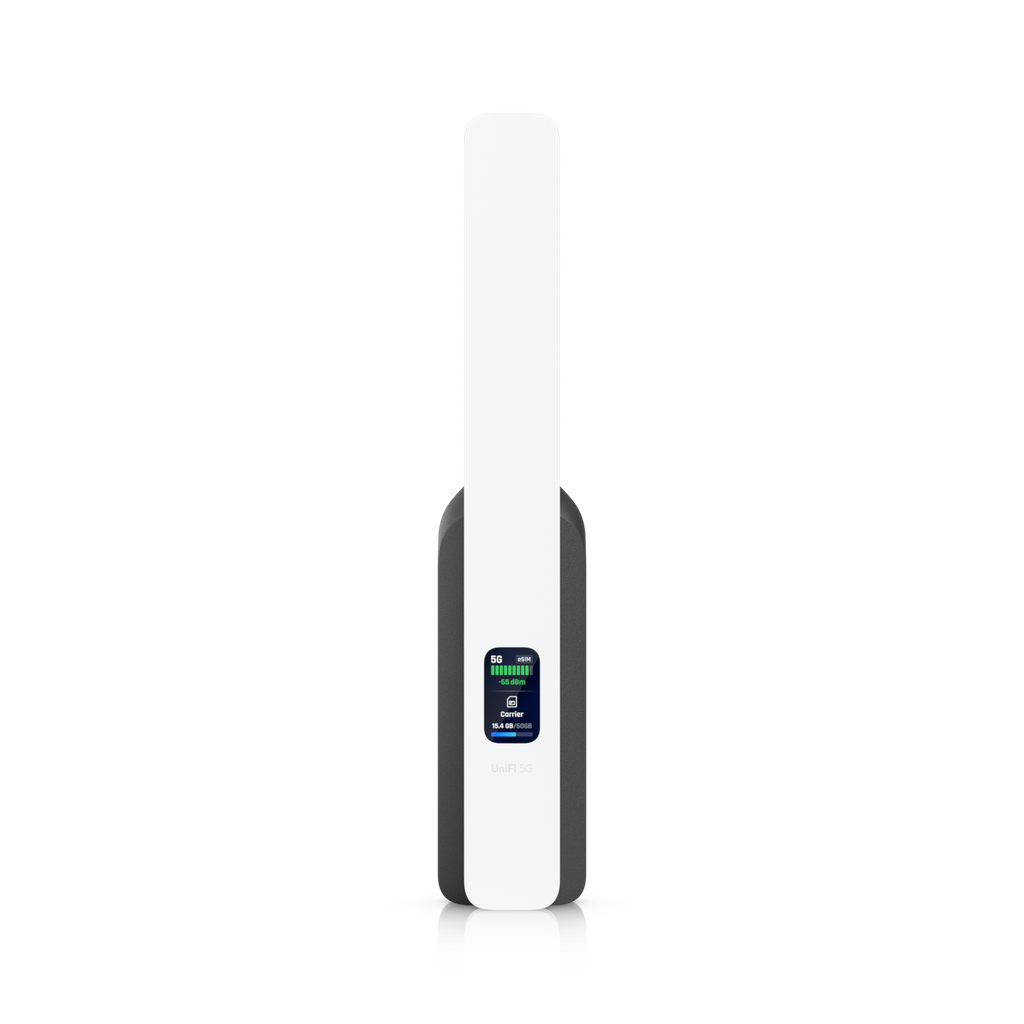

Ubiquiti U5G-US UniFi 5G Backup front view
Ubiquiti U5G-US UniFi 5G Backup in the box and mounting accessories

Key Features

  • Compact UniFi 5G backup antenna system for automatic internet failover.
  • PoE-powered installation through a UniFi PoE port for simple adoption and management.
  • 5G RedCap and 4G LTE connectivity with embedded omni-directional cellular antennas.
  • Nano-SIM and eSIM support for flexible carrier provisioning.
  • Versatile mounting options including desktop stand, wall mount, and window mount.
  • 1.14" status display for cellular and connection status.

Technical Specifications

  • Dimensions: Device: 200 x 38 x 20.2 mm; table stand: 48.1 x 48 x 55.2 mm.
  • Weight: Device: 122 g; stand: 138 g; wall mount: 66 g.
  • Networking interface: (1) GbE RJ45 port; 5G RedCap and LTE.
  • SIM: (1) Nano-SIM (4FF) and (1) eSIM.
  • Power method: PoE input.
  • Cellular performance: 5G SA up to 220 Mbps downlink / 120 Mbps uplink; 4G LTE up to 195 Mbps downlink / 100 Mbps uplink.
  • 5G NR bands: n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41, n48, n66, n71, n77, n78.
  • 4G LTE bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41, B42, B43, B48, B66, B71.
  • Antennas: (2) embedded omni-directional cellular antennas.
  • Mounting/form factor: Desktop stand, wall, and window mount included.
  • Operating temperature: 0 to 40 °C.
  • Operating humidity: 5 to 95% noncondensing.
  • Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile.
  • Application requirements: UniFi Network 10.4.57 and later; UniFi iOS 10.35.0 and later; UniFi Android
SKU U5G-US
MPN U5G-US
Brand Ubiquiti
Shipping Weight 0.0500kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.003000000m3
Unit Of Measure ea
No brochure is available for this product.
